Quick Details
-
Model Number:
-
TN-1500-224B
-
Output Frequency:
-
50±0.1Hz
-
Size:
-
420*220*88mm (L*W*H)
-
Weight:
-
6.85Kg
-
Product:
-
Inverter 1500W
-
Efficiency:
-
90%
-
Warranty:
-
3 Years
-
Working Temp.:
-
0 ~ +40°C
-
Input Voltage Range:
-
21 ~ 30VDC
-
Battery Type:
-
Open & sealed Lead Acid
-
Waveform:
-
True sine wave (THD<3%)
-
Application:
-
Home Appliance, Power Tools etc.
-
Input Protection:
-
Bat. low alarm / Bat. low shut down
-
Protection:
-
Short circuit / Over current / Over voltage / Over temperature
Quick Details
-
Output Current:
-
None
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
Mean Well
-
Model Number:
-
TN-1500-224B
-
Output Frequency:
-
50±0.1Hz
-
Size:
-
420*220*88mm (L*W*H)
-
Weight:
-
6.85Kg
-
Product:
-
Inverter 1500W
-
Efficiency:
-
90%
-
Warranty:
-
3 Years
-
Working Temp.:
-
0 ~ +40°C
-
Input Voltage Range:
-
21 ~ 30VDC
-
Battery Type:
-
Open & sealed Lead Acid
-
Waveform:
-
True sine wave (THD<3%)
-
Application:
-
Home Appliance, Power Tools etc.
-
Input Protection:
-
Bat. low alarm / Bat. low shut down
-
Protection:
-
Short circuit / Over current / Over voltage / Over temperature
Please Attention
[ TRUST YOU WILL LIKE OUR SERVICES, QUALITY AND PRICE ]
Certifications
Product Description

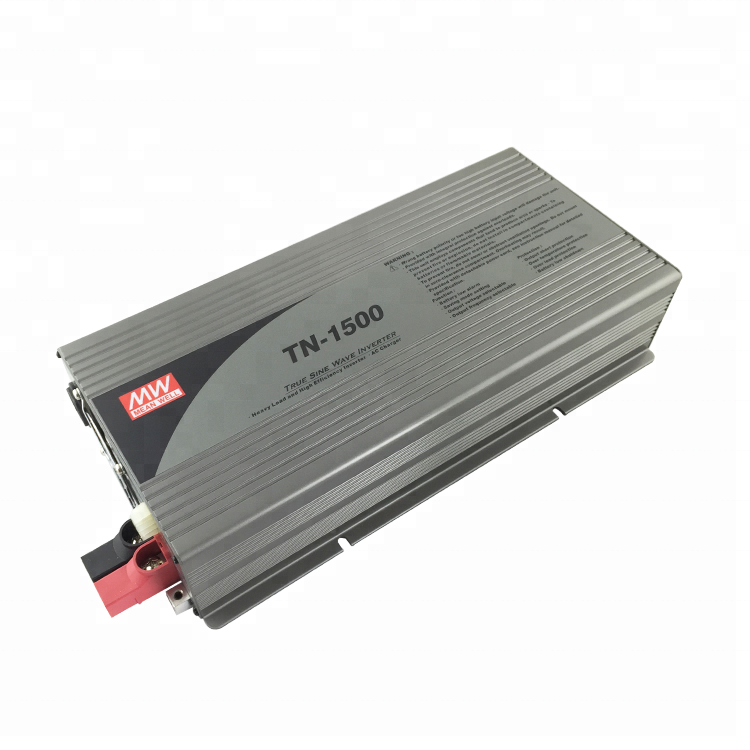

Meanwell 1.5KW DC to AC Power Inverter TN-1500-224B 24VDC to 230VAC Inverter 1500W with Charger
- Meanwell Inverter 1500W
- True sine wave output (THD<3%)
- High surge power up to 3000W
- U.P.S. mode and energy saving mode (selectable)
- High efficiency up to 91%
- Power ON-OFF switch
- Standby saving mode can be selectable
- Front panel indicator for operating status
- Thermostatically controlled cooling fan
- Protections: Bat. low alarm / Bat. low shut down / Over voltage / Over temperature / Output short / Input polarity reverse / Overload / AC circuit breaker
- Applications: home appliance, power tools, office and portable equipment, vehicle and yacht...etc
- Built-in solar / AC charger
- Computer-based monitoring software
- 3 years warranty
| OTHER VOLTAGE FOR CHOOSE | |||
| MODEL NO. | INPUT VDC | OUTPUT VAC / Hz | EFFICIENCY |
| TN-1500-112B | 10.5 ~ 15VDC | 110V / 60 Hz | 87.0% |
| TN-1500-124B | 21 ~ 30VDC | 110V / 60 Hz | 89.0% |
| TN-1500-148B | 42 ~ 60VDC | 110V / 60 Hz | 89.0% |
| TN-1500-212B | 10.5 ~ 15VDC | 230V / 50 Hz | 88.0% |
| TN-1500-224B | 21 ~ 30VDC | 230V / 50 Hz | 90.0% |
| TN-1500-248B | 42 ~ 60VDC | 230V / 50 Hz | 91.0% |
Meanwell 1.5KW DC to AC Power Inverter TN-1500-224B 24VDC to 230VAC Inverter 1500W with Charger
