Quick Details
-
Voltage:
-
220V/380V/415/480V/600V
-
Weight:
-
500 KG
-
Product name:
-
classification linear vibrating sieve
-
Feature:
-
High Effciency
-
Material:
-
Carbon Steel
-
Function:
-
Screening\separation\sorting\sieving
-
Layer(s):
-
1-5 Layers
-
Cleaning system:
-
Bouncing Ball
-
Capacity:
-
100Kg-10Tons/hour
-
Screen Mesh:
-
2-500 Mesh
-
Surface treatment:
-
Paint
-
Color:
-
Customers' Requirements
Quick Details
-
Type:
-
LINEAR
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Gaofu
-
Voltage:
-
220V/380V/415/480V/600V
-
Weight:
-
500 KG
-
Product name:
-
classification linear vibrating sieve
-
Feature:
-
High Effciency
-
Material:
-
Carbon Steel
-
Function:
-
Screening\separation\sorting\sieving
-
Layer(s):
-
1-5 Layers
-
Cleaning system:
-
Bouncing Ball
-
Capacity:
-
100Kg-10Tons/hour
-
Screen Mesh:
-
2-500 Mesh
-
Surface treatment:
-
Paint
-
Color:
-
Customers' Requirements
Why Choose Us
Our strength
Listed company,Stock code:836946.
more than 350 employees,
20 designers technical team,
10 production line ,
30,000 sets per year
60,000+m² cover area
exported more than 100 countries
Fine Quality
The machine key part vibration motor is also produced by our factory .
ISO9001, ,CE,TUV,BV ,SGS certificated.
Fine feedback from customer.
ISO9001, ,CE,TUV,BV ,SGS certificated.
Fine feedback from customer.
Superior Service
Free design for your whole production line .
Technical drawing is offered before production .

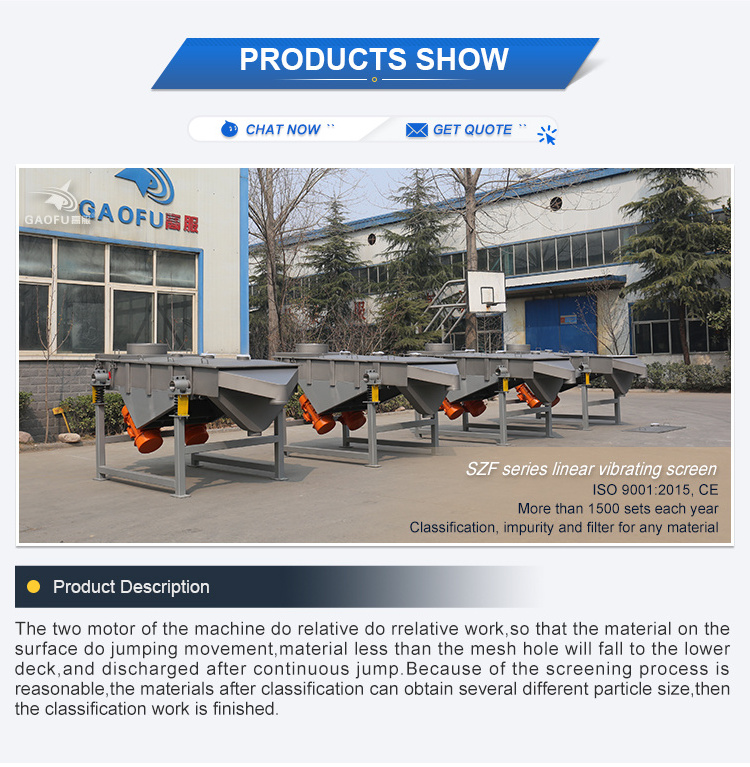

Product Description
Technical parameters
|
Model
|
Size
(mm)
|
Granularity(mm)
|
Leanangle
(°)
|
Amplitude (mm)
|
Layers
|
Power
(kw)
|
|
SZF-520
|
500X2000
|
|
0°-7°
|
4-10
|
1-6
|
2x(0.4-0.75)
|
|
SZF-525
|
500X2500
|
|
|
|
|
2x(0.4-0.75)
|
|
SZF-1020
|
1000X2000
|
|
|
|
|
2x(0.4-0.75)
|
|
SZF-1025
|
1000X2500
|
|
|
|
|
2x(0.4-1.1)
|
|
SZF-1030
|
1000X3000
|
|
|
|
|
2x(1.1-1.5)
|
|
SZF-1040
|
1000X4000
|
|
|
|
|
2x(1.1-1.5)
|
|
SZF-1235
|
1200X3500
|
|
|
|
|
2x(1.1-2.2)
|
|
SZF-1250
|
1200X5000
|
|
|
|
|
2x(1.1-2.2)
|
|
SZF-1535
|
1500X3500
|
|
|
|
|
2x(1.1-2.2)
|
|
SZF-1565
|
1500X6500
|
|
|
|
|
2x(2.2-3.7)
|
|
SZF-1845
|
1800X4500
|
0.074-15
|
|
|
|
2x(2.2-3.7)
|
|
SZF-2050
|
2000X5000
|
|
|
|
|
2x(2.2-3.7)
|
|
SZF-2260
|
2200X6000
|
|
|
|
|
2x(2.2-3.7)
|
Suitable for coarse mesh and the material with strong grading ,such as sand building material
Spring
The spring of the machine adopt 65mn steel,it has long service life, safe and reliable .
Cover and dust removal hole
Gaofu design the cover with dust removal hole,if your material has a lot of dust, this design meets environmental protection requirement, and protect workers' health.
Cleaning Device
:
The machine adopt bouncing ball as cleaning device ,to avoide the material clog the mesh hole.
