Quick Details
-
Ejector Force(kN):
-
50 kN
-
Theoretical Shot Volume(cm³):
-
270 cm³
-
Injection Rate (g/s):
-
132 g/s
-
Injection Weight (g):
-
246 g
-
Screw diameter (mm):
-
45 mm
-
Weight (KG):
-
4000 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
380 mm
-
Brand Name:
-
HAITAI
-
Power (kW):
-
13 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
rotary table injection molding machine
-
Function:
-
small plastic injection molding machine
-
Color:
-
White/blue
-
Category:
-
injection molding machine
-
Language:
-
English/Spanish/Arabic ect.
-
Brand:
-
HAITAI
-
Packaging:
-
injection molding machine with wood platen
-
Web:
-
www.china-haitai.com
-
Plastic Type:
-
Thermoplastic
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
410mm
-
Distance between Tie Bars(Height)(mm):
-
410mm
-
Ejector Stroke(mm):
-
120 mm
-
Ejector Force(kN):
-
50 kN
-
Theoretical Shot Volume(cm³):
-
270 cm³
-
Injection Rate (g/s):
-
132 g/s
-
Injection Weight (g):
-
246 g
-
Screw diameter (mm):
-
45 mm
-
Weight (KG):
-
4000 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
380 mm
-
Brand Name:
-
HAITAI
-
Power (kW):
-
13 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
rotary table injection molding machine
-
Function:
-
small plastic injection molding machine
-
Color:
-
White/blue
-
Category:
-
injection molding machine
-
Language:
-
English/Spanish/Arabic ect.
-
Brand:
-
HAITAI
-
Packaging:
-
injection molding machine with wood platen
-
Web:
-
www.china-haitai.com
-
Plastic Type:
-
Thermoplastic
HAITAI
|

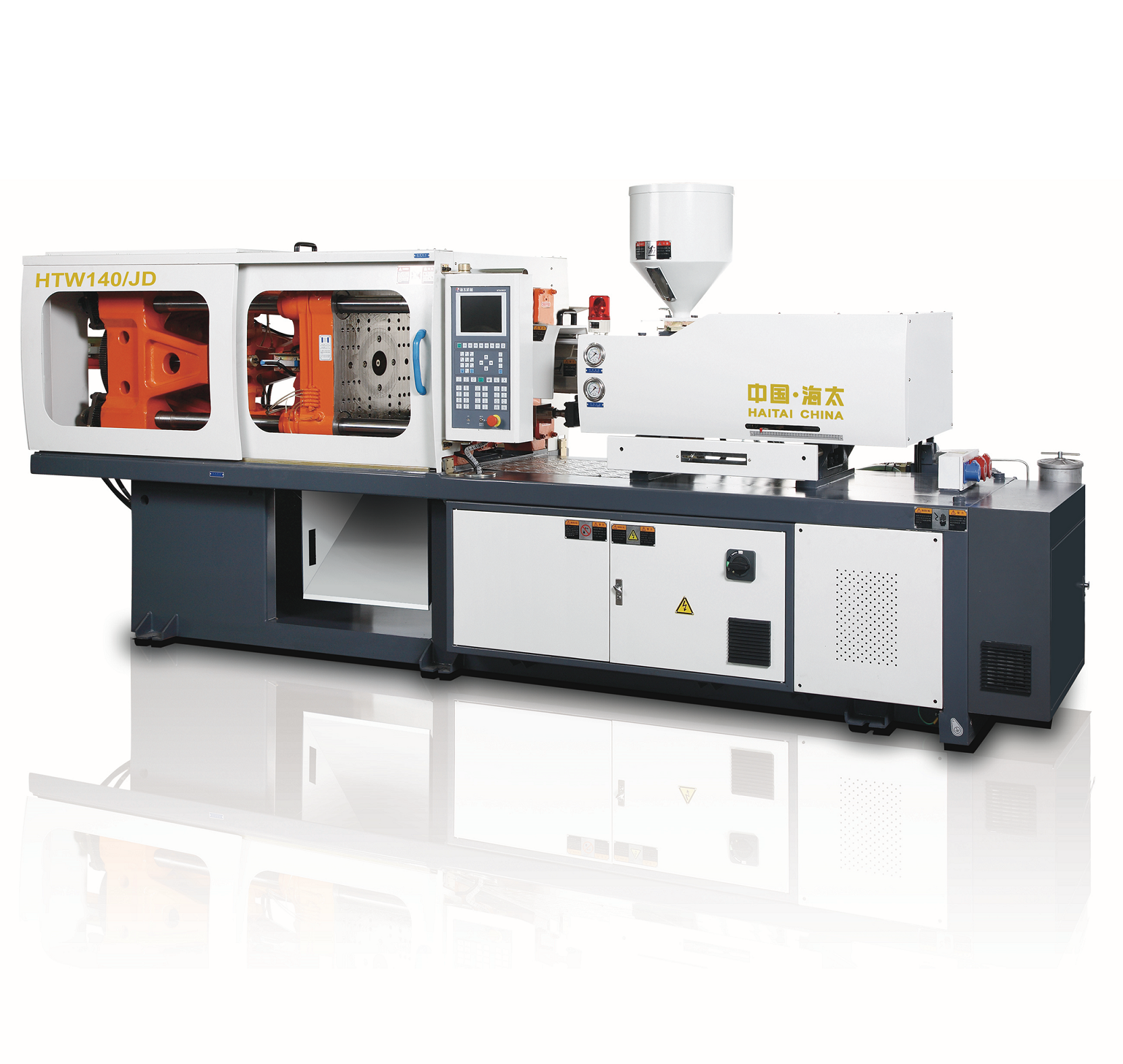

SPECIFICATION
|
HTW140
|
|||
|
A
|
B
|
C
|
||
|
INJECTION UNIT
|
||||
| Screw diameter | mm |
38
|
42
|
45
|
| Screw L/D ratio | L/D |
22.1
|
20
|
18.6
|
| Shot volume(theoretical) | cm3 |
193
|
235
|
270
|
| Injection weight(ps) | g |
176
|
213
|
246
|
| Injection rate | g/s |
94
|
115
|
132
|
| Injection pressure | Mpa |
205
|
170
|
147
|
| Screw pressure | rpm |
190
|
||
|
CLAMPING UNIT
|
|
|||
| Clamping force | kN |
1400
|
||
| Open stroke | mm |
380
|
||
| Space between tie bars(W×H) | mm |
410×410
|
||
| Max.Mold height | mm |
450
|
||
| Min.Mold height | mm |
160
|
||
| Ejector stroke | mm |
120
|
||
| Ejector force | kN |
50
|
||
|
OTHERS
|
|
|||
| Max.Pump pressure | MPa |
16
|
||
| Pump motor power | kW |
13
|
||
| Heating power | kW |
7.9
|
||
| Machine dimension(L×W×H) | m |
4.48×1.11×1.9
|
||
| Oiltank cubage | L |
270
|
||
| Machine weight | t |
4.0
|
||
