Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Inventfine
-
Model Number:
-
CMS-2S
-
Focal Length:
-
contact us
-
Wavelength Range:
-
380-780nm
-
Product name:
-
spectroradiometer
-
Wavelength accuracy:
-
±0.3nm
-
TC accuracy:
-
±0.3%
-
TC range:
-
1500K-100000K
-
chromaticity coordinates:
-
( x, y ), ( U, V )
-
color index:
-
Ra; Ri ( I = 1-15)
-
accuracy of system photometric:
-
class 1
-
working environment temperature:
-
0 ~ 35℃
-
repeatability:
-
±0.1nm
-
correlated color temperature:
-
( Tc )
Quick Details
-
Warranty:
-
18months
-
Size:
-
251mm * 246mm * 106mm
-
Weight:
-
3.5kg
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Inventfine
-
Model Number:
-
CMS-2S
-
Focal Length:
-
contact us
-
Wavelength Range:
-
380-780nm
-
Product name:
-
spectroradiometer
-
Wavelength accuracy:
-
±0.3nm
-
TC accuracy:
-
±0.3%
-
TC range:
-
1500K-100000K
-
chromaticity coordinates:
-
( x, y ), ( U, V )
-
color index:
-
Ra; Ri ( I = 1-15)
-
accuracy of system photometric:
-
class 1
-
working environment temperature:
-
0 ~ 35℃
-
repeatability:
-
±0.1nm
-
correlated color temperature:
-
( Tc )

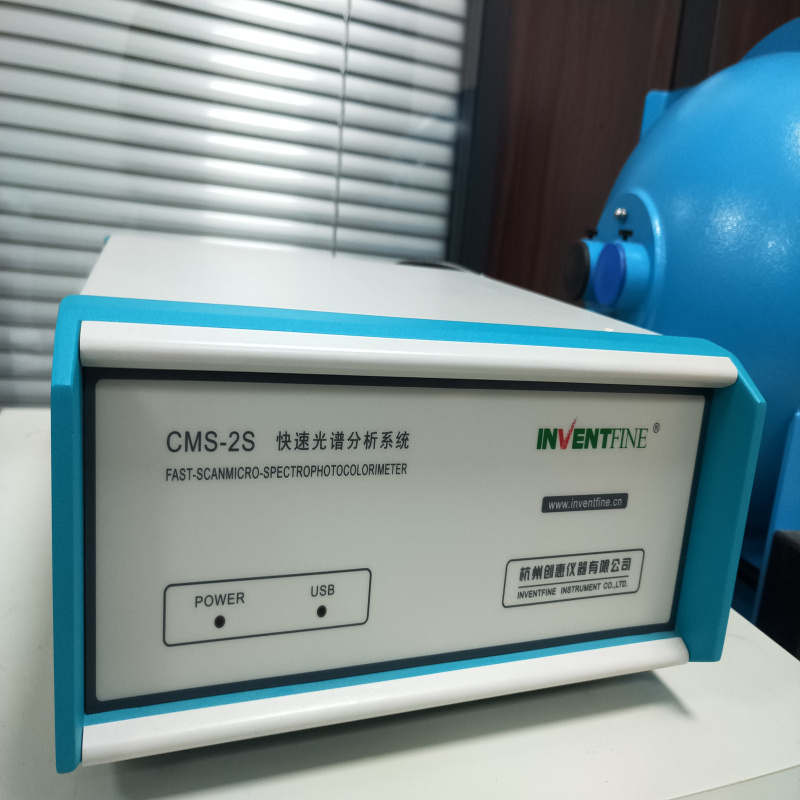

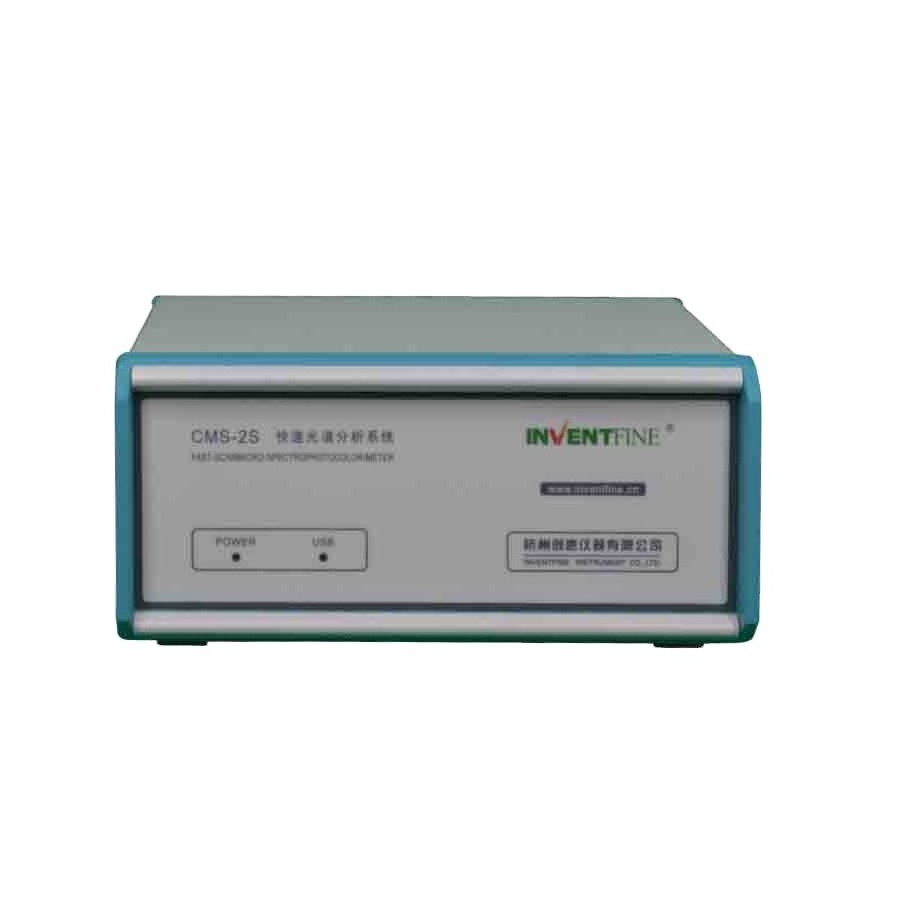

CMS-2S Fast Spectroradiometer Test System
This fast test system is including CMS-2S fast spectroradiometer,integrating sphere,power supply,calibration
This fast test system is including CMS-2S fast spectroradiometer,integrating sphere,power supply,calibration
system,etc.This System adopts the most advanced holographic concave diffraction grating and Toshiba high-performance linear CCD display detector.It can also achieve the millisecond measurement speed and the same test accuracy as the traditional mechanical spectrometer.It has the characteristics of fast test,convenient use,long life,high reliability and small volume etc.
Could test parameters
(1)Relative spectral power distribution P(λ)
(2)Chromaticity coordinates: ( x, y ), ( u, v )
(3)Correlated color temperature: ( Tc )
(4)Color index: Ra; Ri ( I = 1-14 )
(5)Color tolerance(including the international and national standard)
(6)Peak wavelength, half width
(7)Red ratio
(8)Photometric parameters: luminous flux, relative brightness
(9)Environment temperature
(10)Main wavelength, color purity
(1)Relative spectral power distribution P(λ)
(2)Chromaticity coordinates: ( x, y ), ( u, v )
(3)Correlated color temperature: ( Tc )
(4)Color index: Ra; Ri ( I = 1-14 )
(5)Color tolerance(including the international and national standard)
(6)Peak wavelength, half width
(7)Red ratio
(8)Photometric parameters: luminous flux, relative brightness
(9)Environment temperature
(10)Main wavelength, color purity
Core advantages
Technical index
1,Measured wavelength range:
380nm-780nm(visible light), offers 200nm-1100nm for special(UV to near infrared)
2,Wavelength accuracy: ±0.5nm repeatability: ±0.5nm
3,Accuracy of chromaticity coordinates:±0.0005 (standard A light source), ±0.002(LED light source)
4,System spectral linear:±0.5%
5,Accuracy of system photometric: class 1
6,Correlated color temperature measurement range: 1500k~25000k
7,Correlated color temperature accuracy: ±0.5%
8,Color rending index measurement error: ±(0.5%rd+0.5)
1,Measured wavelength range:
380nm-780nm(visible light), offers 200nm-1100nm for special(UV to near infrared)
2,Wavelength accuracy: ±0.5nm repeatability: ±0.5nm
3,Accuracy of chromaticity coordinates:±0.0005 (standard A light source), ±0.002(LED light source)
4,System spectral linear:±0.5%
5,Accuracy of system photometric: class 1
6,Correlated color temperature measurement range: 1500k~25000k
7,Correlated color temperature accuracy: ±0.5%
8,Color rending index measurement error: ±(0.5%rd+0.5)
Hangzhou INVENTFINE Instrument Co., Ltd., established in 2001, is a high-tech enterprise with R & D, production, sales and technical services. INVENTFINE is located in Hangzhou, China. We have more than 8000 square meters of modern standard production workshop and office, advanced production equipment and testing equipment, standardized dust-free workshop and quality inspection room. Our products include Integrating sphere,Goniophotometer,Spectroradiometer, Flicker analyzer, tester, LED power driver tester, EMC-EMI, LED life aging tester, Environmental testing, Safety testing and other LED testing equipment. We have got CE certification, ISO9001 certification, CIE membership, and some products have passed CNAS certification. Our products are recognized by Philips, OSRAM,SHARP and other enterprises. Our products are exported to Europe, America, Southeast Asia and other countries and regions.
Q1: Are you trading company or manufacturer ?
A: We are factory.We have been covered in all LED testing instrument in the field of photometry,colorimetry and electrics,we provide testing solutions for electronic components,electromagentic compatible,electrical safety,light bio safety,environmental safety,DC and AC power supply.
Q2:What if we buy your company's equipment but can't use it?
A:We can provide the online training to buyer (In the case directly purchase from INVENTFINE foreign department.And we also provide indoor service,including install machine and trainning.
Q3: Do you provide samples ? is it free or extra ?
A: We don't provide samples, but you can come to our company anytime if you have time.
Q4: What is your terms of payment and delivery time?
A: 30% as deposit and then other 70% before delivery.goods is ready within 15 days after received the deposit.
