Quick Details
-
Voltage:
-
Standard
-
Dimension(L*W*H):
-
650*500*730mm
-
Weight:
-
248
-
Warranty:
-
3 Years
-
Power (kW):
-
4kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Crimper Model:
-
Y120
-
Operating Mode:
-
Digital/Automatic
-
Crimper OEM:
-
Yes
-
Crimper Range:
-
3-80mm
-
Crimper Dies:
-
10sets
-
Crimping Force:
-
200T
-
Noise Level:
-
60 dB
-
Protection Class:
-
IP54
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YONG-FENG
-
Machine Type:
-
Hydraulic Crimping Tool
-
Voltage:
-
Standard
-
Dimension(L*W*H):
-
650*500*730mm
-
Weight:
-
248
-
Warranty:
-
3 Years
-
Power (kW):
-
4kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Crimper Model:
-
Y120
-
Operating Mode:
-
Digital/Automatic
-
Crimper OEM:
-
Yes
-
Crimper Range:
-
3-80mm
-
Crimper Dies:
-
10sets
-
Crimping Force:
-
200T
-
Noise Level:
-
60 dB
-
Protection Class:
-
IP54
Product Description
Main Features
|
YONG-FENG Y120
|
|
|
|
|||
|
Specifications
|
H.C. Material
|
Forge Steel
|
|
|||
|
|
Crimping Range
|
3mm-80mm
|
|
|||
|
|
Max. Hydraulic Hose
|
2" 4SP (ID 51mm)
|
|
|||
|
|
Max Opening
|
+25mm
|
|
|||
|
|
Opening without Dies
|
118mm
|
|
|||
|
|
Crimping Force
|
2000kN/200T
|
|
|||
|
|
Length of Master Dies
|
80mm
|
|
|||
|
|
Length of Dies
|
45/50/65/80mm
|
|
|||
|
|
System Pressure
|
31.5Mpa
|
|
|||
|
|
Operation Mode
|
Digital/Automatic
|
|
|||
|
|
Power Voltage
|
110-480V
|
|
|||
|
|
Matching Power
|
4kW
|
|
|||
|
|
Dimension (L*W*H)
|
650×500×730mm
|
|
|||
|
|
Net Weight
|
248kg
|
|
|||
|
|
Die Sets
|
14sets
|
|
|||

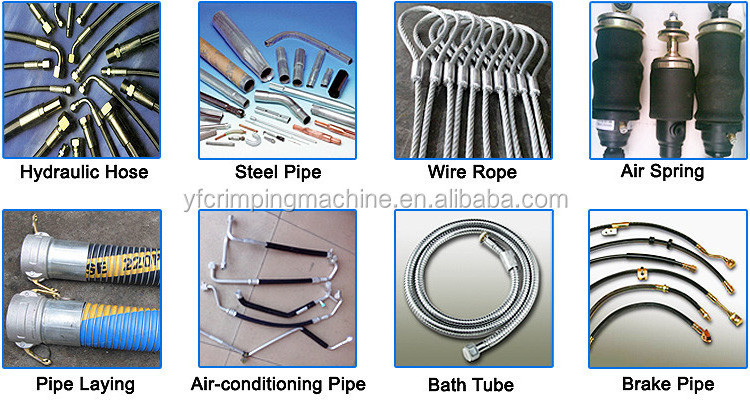

Product Application

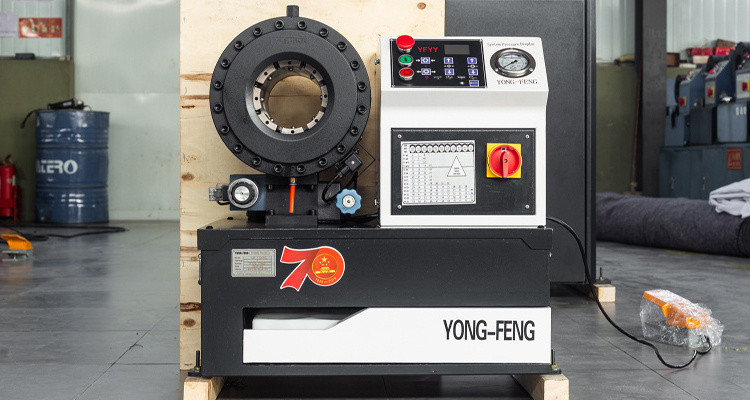

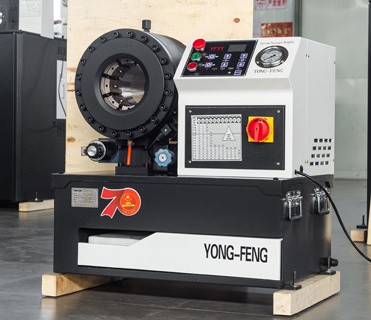

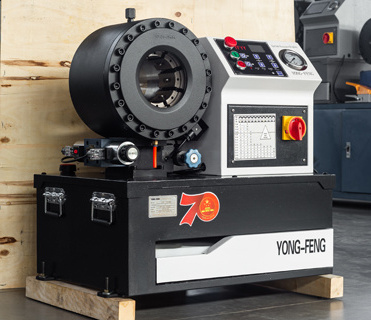

Detailed Images
