Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HLM
-
Dimension(L*W*H):
-
1340*940*940mm
-
Weight (KG):
-
380 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Product name:
-
Laser Engraving Equipment
-
Laser tube:
-
Beijing Reci
-
Type:
-
Water Cooling CO2 Laser Engraving Machines
-
Model:
-
3030/3020/4040/3040/3050/4060/6090/1290/1490
-
Name:
-
Mini Cnc Laser Engraving Machine
-
Function:
-
Engraving Nonmetal Materials
-
Laser power:
-
60W/80W/100W/130W/150W
-
Keywords:
-
40 Laser Engraving Machine
-
MOQ:
-
1
Quick Details
-
Engraving Area:
-
900*600mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-60000mm/min
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HLM
-
Dimension(L*W*H):
-
1340*940*940mm
-
Weight (KG):
-
380 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Product name:
-
Laser Engraving Equipment
-
Laser tube:
-
Beijing Reci
-
Type:
-
Water Cooling CO2 Laser Engraving Machines
-
Model:
-
3030/3020/4040/3040/3050/4060/6090/1290/1490
-
Name:
-
Mini Cnc Laser Engraving Machine
-
Function:
-
Engraving Nonmetal Materials
-
Laser power:
-
60W/80W/100W/130W/150W
-
Keywords:
-
40 Laser Engraving Machine
-
MOQ:
-
1
Product Description
Company profile
|
Product
|
HLM9060 Ruida motherboard
|
|
|
||
|
Laser Type
|
Sealed-off CO2 Laser Tub
|
|
|
||
|
Laser Power
|
60w/80w/100w/130w/150w
|
|
|
||
|
Working area
|
900*600 mm
|
|
|
||
|
Engraving speed maximum
|
500mm/s
|
|
|
||
|
Minimum Character
|
1mm
|
|
|
||
|
Guideway
|
Linear Guideway
|
|
|
||
|
Drive Mode
|
42/57 Digital Subdivision Stepper Drive
|
|
|
||
|
Positioning Mode
|
Red Light
|
|
|
||
|
Cooling Mode
|
Water Cooling
|
|
|
||
|
Lift table space
|
500 mm up and down adjustable
|
|
|
||
|
Direct output
|
CorelDraw, AutoCAD, Photoshop, Laser CAD, etc...
|
|
|
||
|
Graphic Format Supported
|
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, etc
|
|
|
||
|
Power supply
|
220V 10% 50HZ / 110V 10% 50HZ
|
|
|
||
|
Standard parts
|
blower and exhaust pipe, water chiller, air pump, electric lift table, DSP offline control, software, etc.
|
|
|
||
|
Optional part rotary jig
|
used for carving on curved surface.
|
|
|
||
|
Optional Device
|
Water-cooling Machine, 360° Simple Rolling Machine, Chuck Rolling Machine, Chuck Non-standard Rolling machine
|
|
|
||
Detailed Images

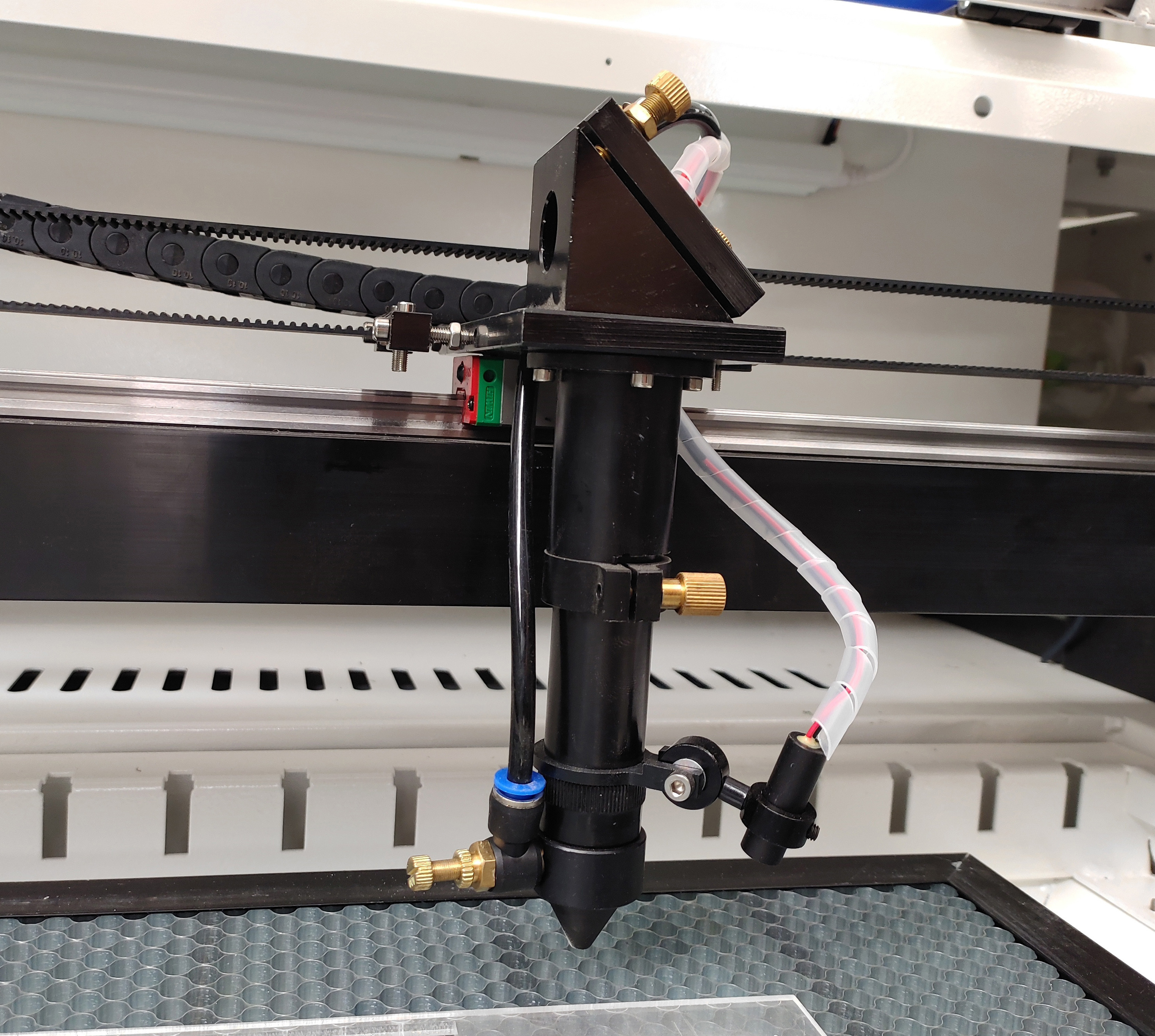

Laser head
Stepper motor
Linear guideway
Traverse tube
|
|
Wood
|
Plywood
|
Leather
|
Acrylic
|
pvc
|
Bamboo works
|
|
40W
|
1.5mm
|
0.5mm
|
0.5mm
|
1mm
|
0.5mm
|
0.5mm
|
|
50W
|
3.5mm
|
2.5mm
|
1.5mm
|
3.5mm
|
1.5mm
|
1mm
|
|
60W
|
5.5mm
|
4.5mm
|
2.5mm
|
9mm
|
2.5mm
|
1.5mm
|
|
80W
|
8.5mm
|
8.5mm
|
3.5mm
|
13mm
|
3.5mm
|
2.5mm
|
|
100W
|
10.5mm
|
10.5mm
|
4.5mm
|
17mm
|
4.5mm
|
3.5mm
|
|
130W
|
11.5mm
|
11.5mm
|
5.5mm
|
20mm
|
5.5mm
|
4.5mm
|
|
150W
|
13.5mm
|
13.5mm
|
6.5mm
|
23mm
|
6.5mm
|
5.5mm
|
|
|
Plastic
|
Rubber
|
Clothing
|
Pleixglass
|
Paper
|
Class/crystac
|
|
40W
|
0.5mm
|
1mm
|
1mm
|
0.5mm
|
0.5-5mm
|
/
|
|
50W
|
0.5mm
|
1.5mm
|
1.5mm
|
1.5mm
|
|
/
|
|
60W
|
1.5mm
|
1.5mm
|
1.5mm
|
3.5mm
|
|
/
|
|
80W
|
2.5mm
|
2.5mm
|
2.5mm
|
7.5mm
|
|
/
|
|
100W
|
3.5mm
|
3.5mm
|
3.5mm
|
9.5mm
|
|
/
|
|
130W
|
4.5mm
|
4.5mm
|
4.5mm
|
11.5mm
|
|
/
|
|
150W
|
5.5mm
|
5.5mm
|
6.5mm
|
14.5mm
|
|
/
|
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
1340(L) * 940(W) *940 (D)
|
|
|
Weight
|
210-240kg
|
|
|
|
|
|
|
Packaging
|
|
|
|
Size
|
1500(L) * 1100 (W) * 1100 (D)
|
|
|
Weight
|
240--270kg
|
|
|
Packaging Details
|
Conventional wooden box packing
|
|
Loading the truck
Package details:
Sample
Applicable materials:
Shipping & Payment
