Quick Details
-
Brand Name:
-
SUNS
-
Model Number:
-
FSB-63
-
Max. Current:
-
15A
-
Operating Temperature:
-
-30℃~+80℃
-
Degree of protection:
-
IPX8
-
Operating Frequency:
-
60 ops/min
-
Insulation Resistance:
-
>100MΩ@500VDC
-
Contact Resistance:
-
<25mΩ(Initial Value)
-
Mechanical Life:
-
1,000,000
-
Electrical Life:
-
500,000
-
Certification:
-
USA,CANADA
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
SUNS
-
Model Number:
-
FSB-63
-
Max. Current:
-
15A
-
Operating Temperature:
-
-30℃~+80℃
-
Degree of protection:
-
IPX8
-
Operating Frequency:
-
60 ops/min
-
Insulation Resistance:
-
>100MΩ@500VDC
-
Contact Resistance:
-
<25mΩ(Initial Value)
-
Mechanical Life:
-
1,000,000
-
Electrical Life:
-
500,000
-
Certification:
-
USA,CANADA
| Features: | |
| 1)Ergonomic low profile design | |
| 2)Pedal available in IPX8 | |
| 3)Button available 3 to 8 | |
| 4) Soft touch button with light operating force | |
| Specifications: | |
| Operating Speed: | 60 ops/min |
| Insulation Resistance: | >100mΩ@500VDC |
| Contact Resistance: | <25mΩ |
| Rated Current/Voltage | 15A 1/2HP 125/250V or 20A 1HP 125VAC,2HP 250VAC |
| Dielectric Strength: | 1000VAC for 1 min between current carrying parts |
| 2500VAC for 1 min between non-current carrying parts | |
| Service Life: | Mechanically 1000000 (operations) |
| Electrically 5×10 5 (operations) | |
| Operating Temperature: | -30~+80℃(-22~+176°F) |
| Degree of Protection: | IPX8 |

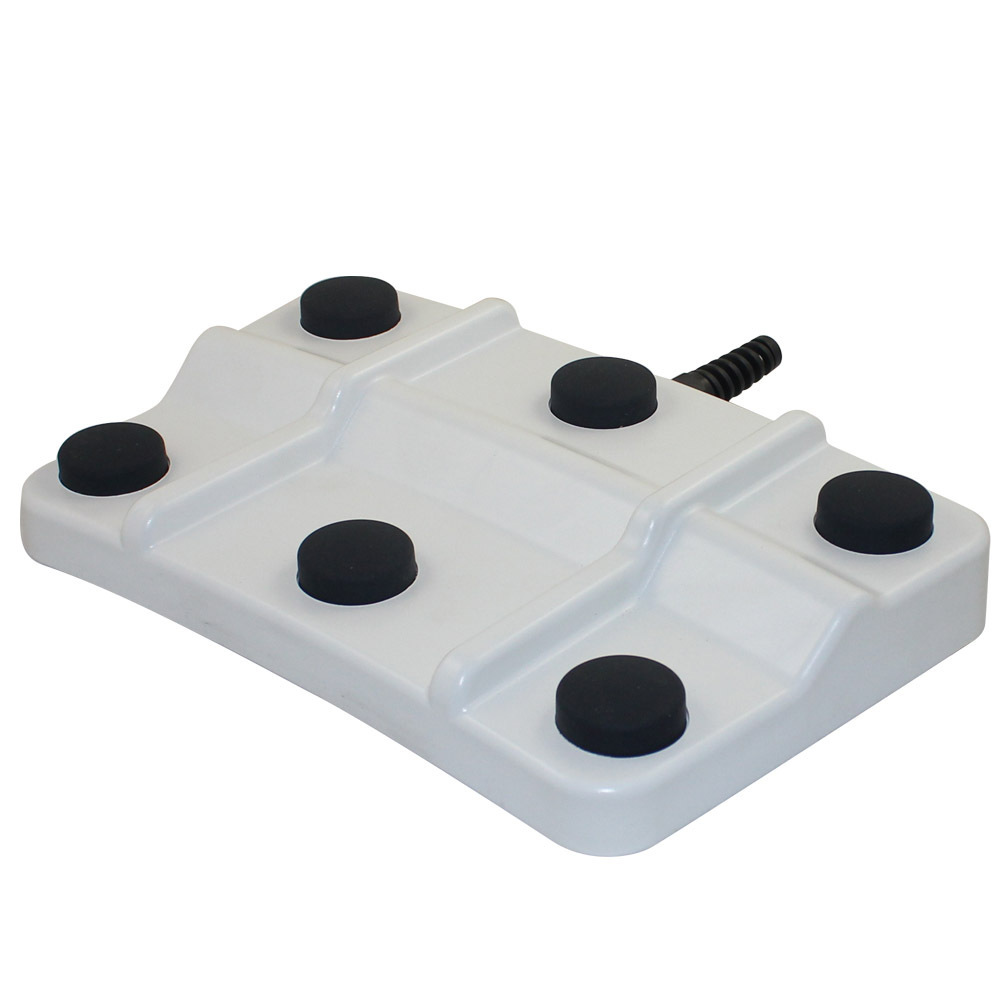

Medical Foot Switch
