Quick Details
-
Certification:
-
ISO, RoHS
-
Name:
-
12V DC electric stepping sanitary ware motor
-
Rated voltage:
-
12vdc
-
Max slewing pulse rate:
-
800pps
-
Max starting pulse rate:
-
350pps
-
Temperature rise:
-
60deg
-
Noise:
-
40dB
-
Height:
-
17.2mm
Quick Details
-
Phase:
-
4
-
Type:
-
step motor
-
Place of Origin:
-
Zhejiang, China
-
Certification:
-
ISO, RoHS
-
Name:
-
12V DC electric stepping sanitary ware motor
-
Rated voltage:
-
12vdc
-
Max slewing pulse rate:
-
800pps
-
Max starting pulse rate:
-
350pps
-
Temperature rise:
-
60deg
-
Noise:
-
40dB
-
Height:
-
17.2mm

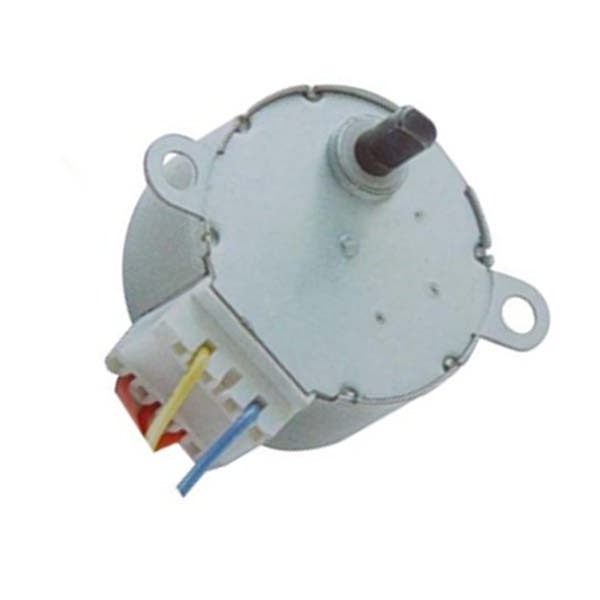

12V DC electric stepping sanitary ware motor
| Item | Specifications | Unit | |||
| Rated Voltage | 12 | VDC | |||
| Current | 92 | 60 | 48 | 40 | mA |
| Impedance | 130 | 200 | 250 | 300 | Ω |
| Pull-in Torque (at 100pps) | 900 | 650 | 620 | 470 | gf - cm |
| Step Angle | 7.5°/85 | ° | |||
| Reduction Ratio | 1/85 | ||||
| Phase | 4 | ||||
| Detent Torque min | 500 | gf - cm | |||
| Max Starting Pulse Rate | 350 | pps | |||
| Max Starting Pulse Rate | 800 | pps | |||
| Insulation Strength | AC 600V-1sec Cut-Off Current :10mA | ||||
| Temperature Rise | 60 | deg | |||
| Noise | 40 | dB | |||
| Diameter of Model | ψ35.0 | mm | |||
| Distance of Model (a) | 42.0 | mm | |||
| Distance of Model (a1) | 10.0 | mm | |||
| Height of Model | 17.2 | mm | |||
