- Product Details
- {{item.text}}
Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CATEK
-
Dimension(L*W*H):
-
3100mm*2000mm*1000mm
-
Weight (KG):
-
800 KG
Quick Details
-
Engraving Area:
-
1300mm*2500mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
1-60000mm/min
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CATEK
-
Dimension(L*W*H):
-
3100mm*2000mm*1000mm
-
Weight (KG):
-
800 KG
Products Description
Product Paramenters
|
Name
|

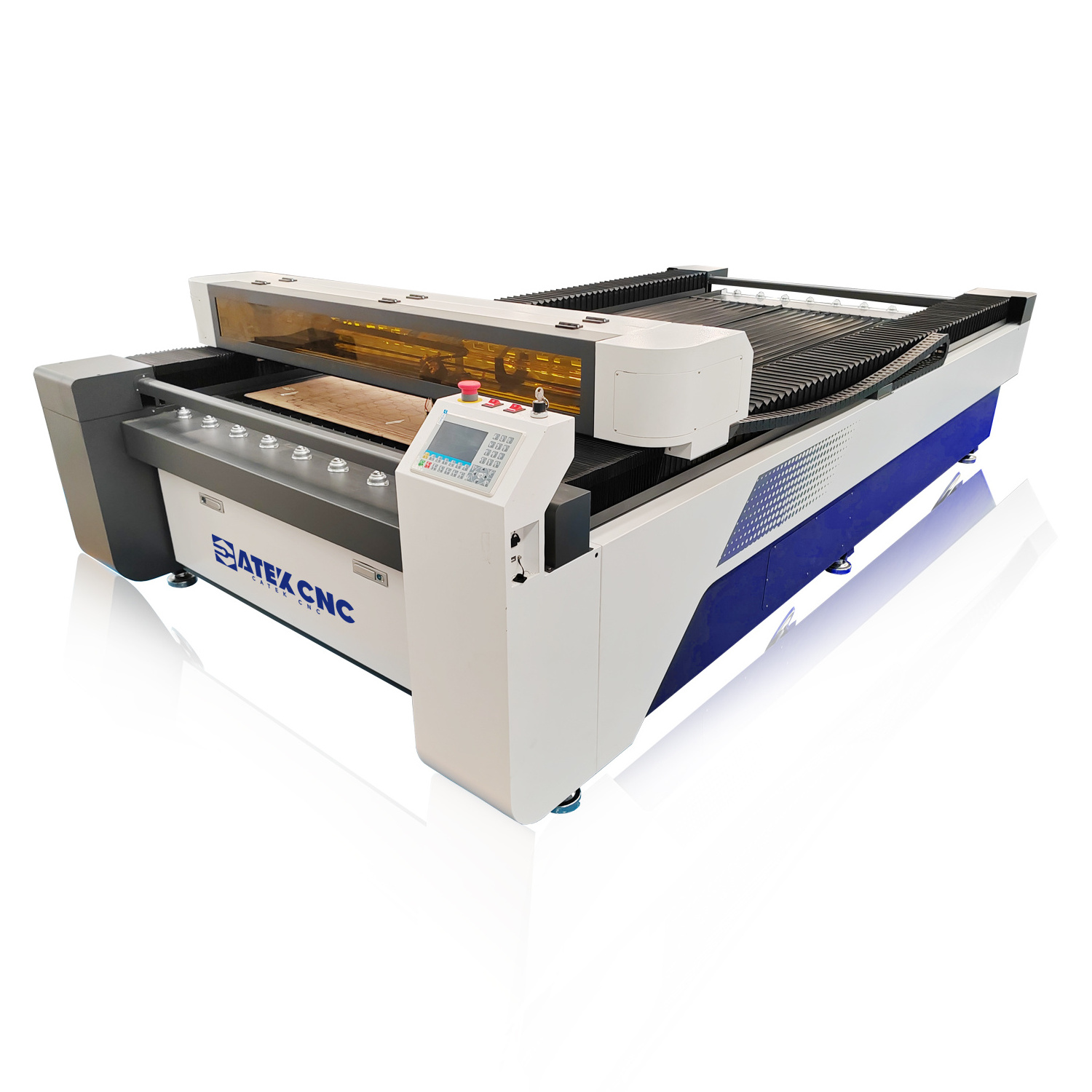

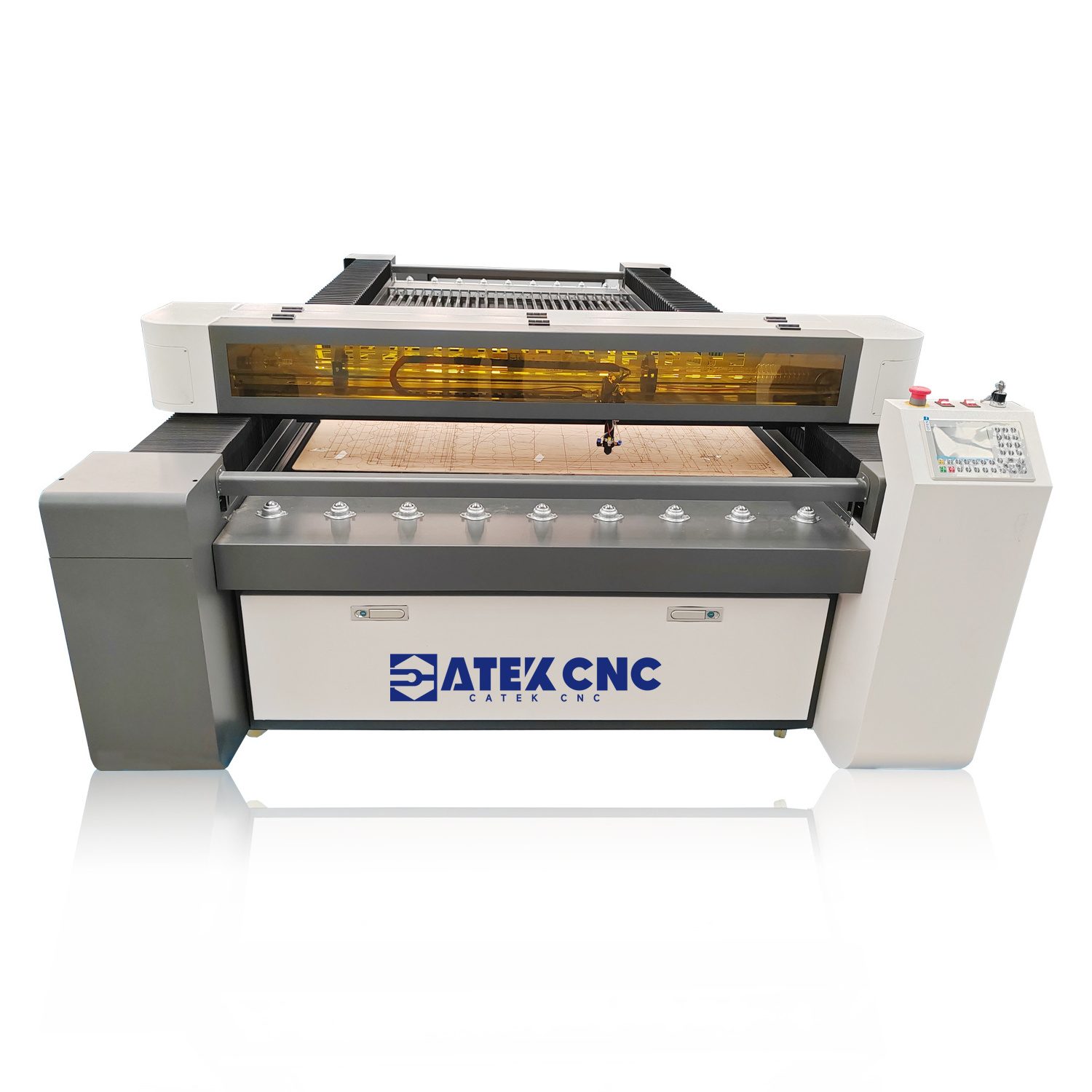

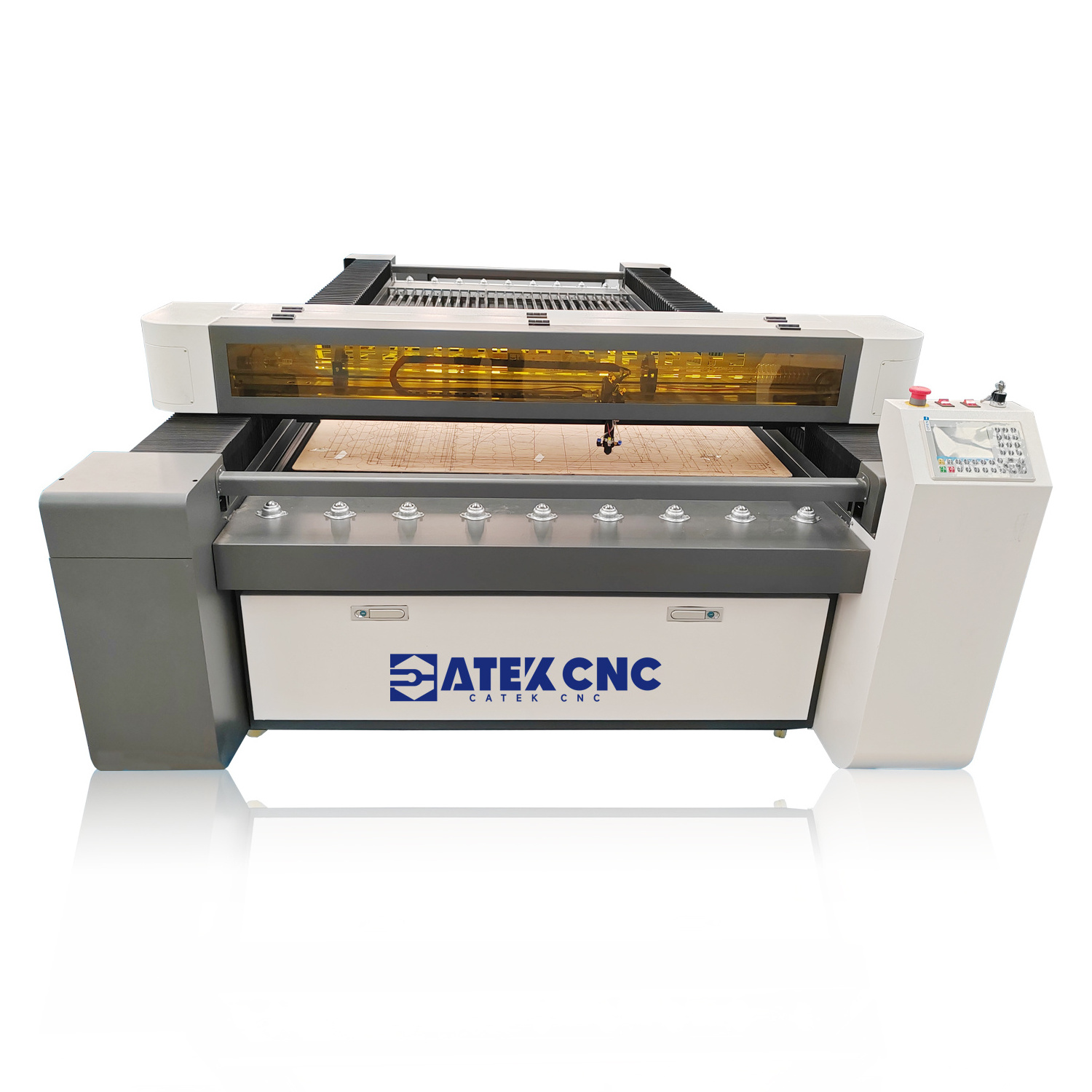

CK-1325-C CO2 laser cutting engraving machine
|
|
Working area
|
1300MM*2500MM
|
|
Machine size
|
3100mm*2000mm*1000mm
|
|
Machine weight
|
800KG
|
|
Laser power
|
80W/100W/150W/200W
|
|
Working voltage
|
110V/220V 50HZ 60HZ
|
|
Laser type
|
CO2 glass laser tube
|
|
Laser tube
|
RECI/Yongli AS6 laser tube
|
|
Laser head
|
Auto focus and red dot positioning
|
|
Cooling type
|
S&A CW5200 water cooling machine
|
|
Transmission mode
|
Taiwan HIWIN high precision linear square rail,Taiwan HIWIN slider
|
|
Protector
|
XY dust cover protection
|
|
motor
|
stepper motor(Customizable servo motor)
|
|
Safety system
|
Three light alarm system+case open working stop system
|
|
Platform type
|
Blade platform or cellular platform
|
|
Supported graphic formats
|
JPG,JPEG, PLT, DST, PLT, BMP, DXF, AI
|
|
Engraving speed
|
1-60000mm/min
|
|
Cutting speed
|
1- 10000mm/min
|
|
Cutting thickness
|
≤ 25mm (according to material)
|
|
Resolution ratio
|
≤0.0125mm
|
|
focusing lens
|
Import from America II-VI
|
Sample display
It can satisfy the large-volume cutting and engraving needs of clothing fabrics, leather, wood, acrylic, paper and other industries and it is widely used in craft gifts, souvenirs, paper-cutting, advertising signs, clothing, furniture and many other industries
Recommend Products
Details Images
RECI CO2 laser tube has a delicate spot and strong penetrating power making it more suitable for long-term use
Ruida rdc laser special control system supports various advanced functions such as auto focus and power-off positioning
Red dot positioning and auto-focus laser head ensure a safe distance between the material and the lens
Imported HIWIN high-precision sliders guide rails and TBI ball screws
XY axis fully enclosed dust cover to better protect guide rails and linear bearings and prevent dust
S&A cw-5200 water cooling machine enables the machine to work stably in hot environments
Our Advantages
Focusing lens imported from the United States, double size AR coating and high transmittance 99.5%
Ordinary focusing lenses have low transmittance and low laser resistance
Honeycomb workbench + blade workbench dual platforms can be used for both cutting and engraving making it more convenient to use
Ordinary single-blade workbench with single working method
The whole machine uses a thickened sheet metal shell and an aviation-grade aluminum alloy gantry that making it more convenient to control and easier to use
Simple small laser machine with low efficiency slow speed and low precision
