Quick Details
-
Model Number:
-
SQ3W
-
Max. Current:
-
63A
-
Input Voltage:
-
220V/400V
-
Type:
-
Changeover Switch
-
Certificates:
-
IEC, CCC, CE
-
Pole:
-
2P,4P
-
Rated current:
-
6A~63A
-
Operation:
-
Manual and Auto, or Manual
-
MCB to use:
-
DZ47(SC45) Mini circuit breaker
-
Frequency:
-
60/60Hz
-
Application:
-
distribution power system
-
Web:
-
www.chinasuntree.com/index.html
Quick Details
-
Max. Voltage:
-
400V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Suntree
-
Model Number:
-
SQ3W
-
Max. Current:
-
63A
-
Input Voltage:
-
220V/400V
-
Type:
-
Changeover Switch
-
Certificates:
-
IEC, CCC, CE
-
Pole:
-
2P,4P
-
Rated current:
-
6A~63A
-
Operation:
-
Manual and Auto, or Manual
-
MCB to use:
-
DZ47(SC45) Mini circuit breaker
-
Frequency:
-
60/60Hz
-
Application:
-
distribution power system
-
Web:
-
www.chinasuntree.com/index.html
Product Description
Product Parameters
|
Type
|
SQ3W
|
|
Specification current Ie(A)
|
6/10/16/20/25/32/40/50/63
|
|
Rated operating voltage, Ue (V)
|
AC230V/AC400V
|
|
Rated insulating voltage Ui (V)
|
AC 690V
|
|
Rated impulse withstand voltage (KV)
|
4KV
|
|
Rated short circuit making capacity Icm
|
6KA
|
|
Rated short circuit breaking capacity Icn
|
4.5KA
|
|
Service life
|
5000 times
|
|
Electric equipment grade
|
CB Class
|
|
Controller
|
Type A(basic type)
|
|
Rated control supply voltage,Us(V)
|
230V 50Hz
|
|
Operating transfer time (no time delay)
|
≤3s
|

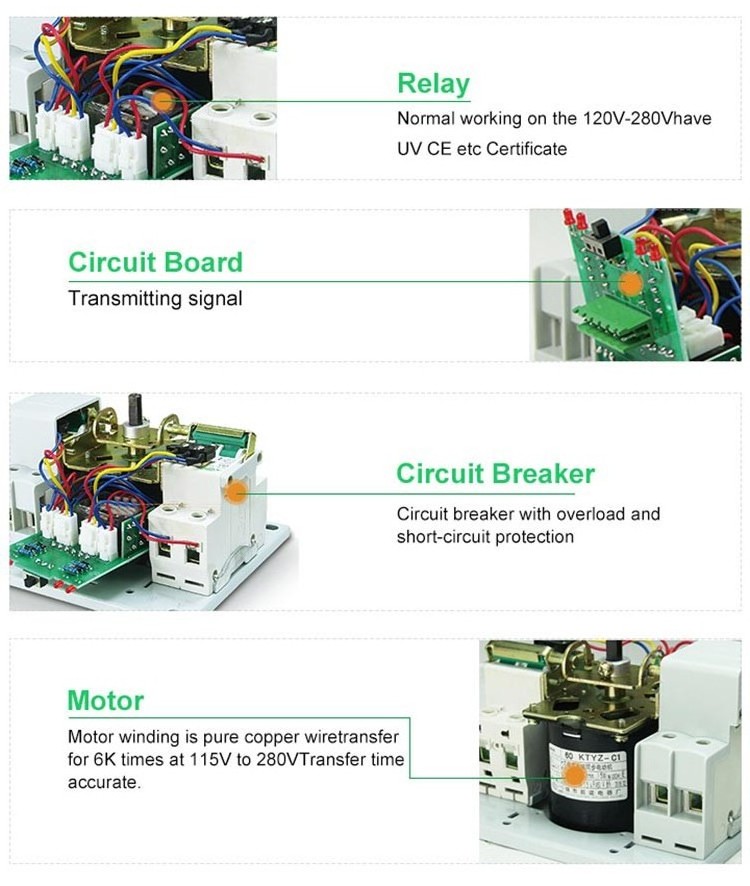

Product Details Show
Product Processing
Operation
Advantage
Application
