Quick Details
-
Brand Name:
-
Winston/OEM
-
Model Number:
-
SC-35-12
-
Output Frequency:
-
47~63HZ
-
Output Current:
-
2A 0.5A
-
Product Name:
-
SC-35-12 UPS Battery Charge Power Supply
-
Function:
-
UPS dunction Battery Charge
-
Protections:
-
Battery protection/ Overload /Overvolt /Overtemp
-
Dimension:
-
111*78*36mm (L*W*H)
-
Rated Power:
-
34.3W
-
Certification:
-
CE ROHS
-
Warranty:
-
2 years
-
Application:
-
CCTV Camera
-
Type:
-
Constant Voltage
-
Efficiency:
-
81%
Quick Details
-
Input Voltage:
-
90~264VAC,127~370VDC
-
Output Voltage:
-
12V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Winston/OEM
-
Model Number:
-
SC-35-12
-
Output Frequency:
-
47~63HZ
-
Output Current:
-
2A 0.5A
-
Product Name:
-
SC-35-12 UPS Battery Charge Power Supply
-
Function:
-
UPS dunction Battery Charge
-
Protections:
-
Battery protection/ Overload /Overvolt /Overtemp
-
Dimension:
-
111*78*36mm (L*W*H)
-
Rated Power:
-
34.3W
-
Certification:
-
CE ROHS
-
Warranty:
-
2 years
-
Application:
-
CCTV Camera
-
Type:
-
Constant Voltage
-
Efficiency:
-
81%

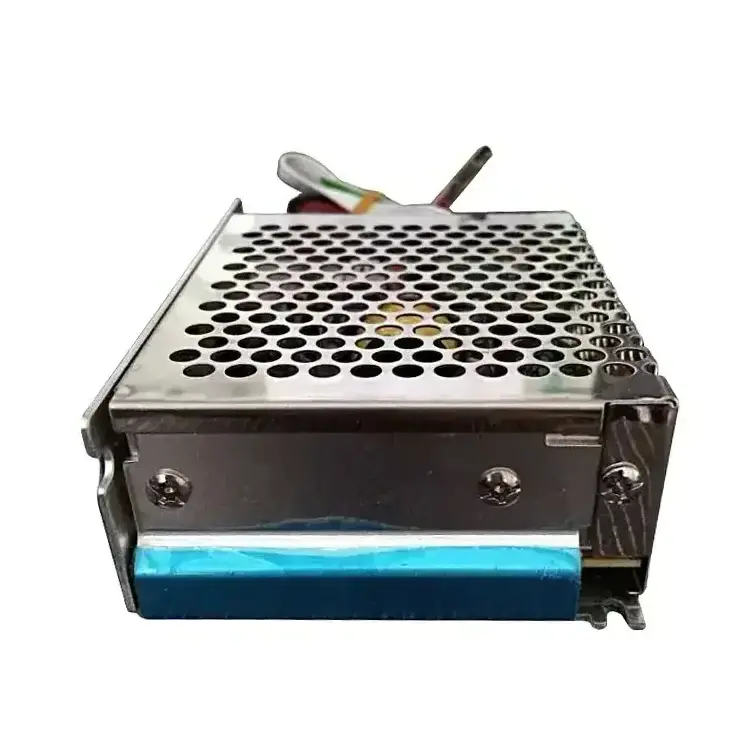

35W SC-35-12 UPS Function Battery Power Supply 12V with CE ROHS
Application
Technical Data
| Model | SC-35-12 | SC-35-24 | |||
| Output | DC voltage | CH1:13.8V | CH1:13.4V | CH1:27.6V | CH2:26.5V |
| Voltage tolerance | ±2% | ----- | ±1% | ----- | |
| Rated current | 2.0A | 0.5A | 1.0A | 0.3A | |
| Current range | 0~2.0A | ----- | 0~1.0A | ----- | |
| Rated power | 34.3W | 35.6W | |||
| Ripple&noise | 120mvp-p | ----- | 120mvp-p | ----- | |
| DCvoltage ADJ.range | CH1:11.3~14.9V | CH1:21.3~29.8V | |||
| Setup,rise,hold time | 800ms,50ms,80ms/230VAC, 1600ms,50ms,16ms/115VAC | ||||
| Voltage range | 90~264VAC,127~370VDC | ||||
| frequency | 47~63HZ | ||||
| Input | AC current | 0.9A/115VAC,0.45A/230VAC | |||
| efficiency | 81% | 83% | |||
| Inrush current | Cold start current 25A/115VAC,45A/230VAC | ||||
| Leakage current | < 1mA/240VAC | ||||
| Protection | Over load | Rated output power110%~150% start over load protection | |||
| Protection mode: AC charging mode:hiccup mode auto-recovery after fault Condition is removed | |||||
| Battery protection | 9.5~11V | 20~22V | |||
| At low voltage | Protection mode: cut off The output | ||||
| Function | UPS introduction | ||||
| Environment | Working temp,humidity | -10°C~+60°C,20%~90%RH | |||
| Storagetemp,humidity | -20°C~+85°C,10%~95%RH non-condensing | ||||
| Withstand vibration | 10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes | ||||
| Safety | Withstand voltage | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||
| Isolated resistance | I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC | ||||
| Others | Dimension | 111*78*36mm (L*W*H) | |||
| Weight/packing | 43*34*24cm/45pcs/13.5kg | ||||
| Note | |||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | |||||
