Quick Details
-
Theoretical Shot Volume(cm³):
-
71.4 cm³
-
Injection Rate (g/s):
-
51.8 g/s
-
Injection Weight (g):
-
67.5 g
-
Screw Speed (rpm):
-
0 - 190 rpm
-
Screw diameter (mm):
-
28 mm
-
Distance between Tie Bars:
-
270
-
Weight (KG):
-
600 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
260 mm
-
Model Number:
-
JY-1600ST-R
-
Brand Name:
-
Jieyang
-
Power (kW):
-
2.2 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
optional
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-

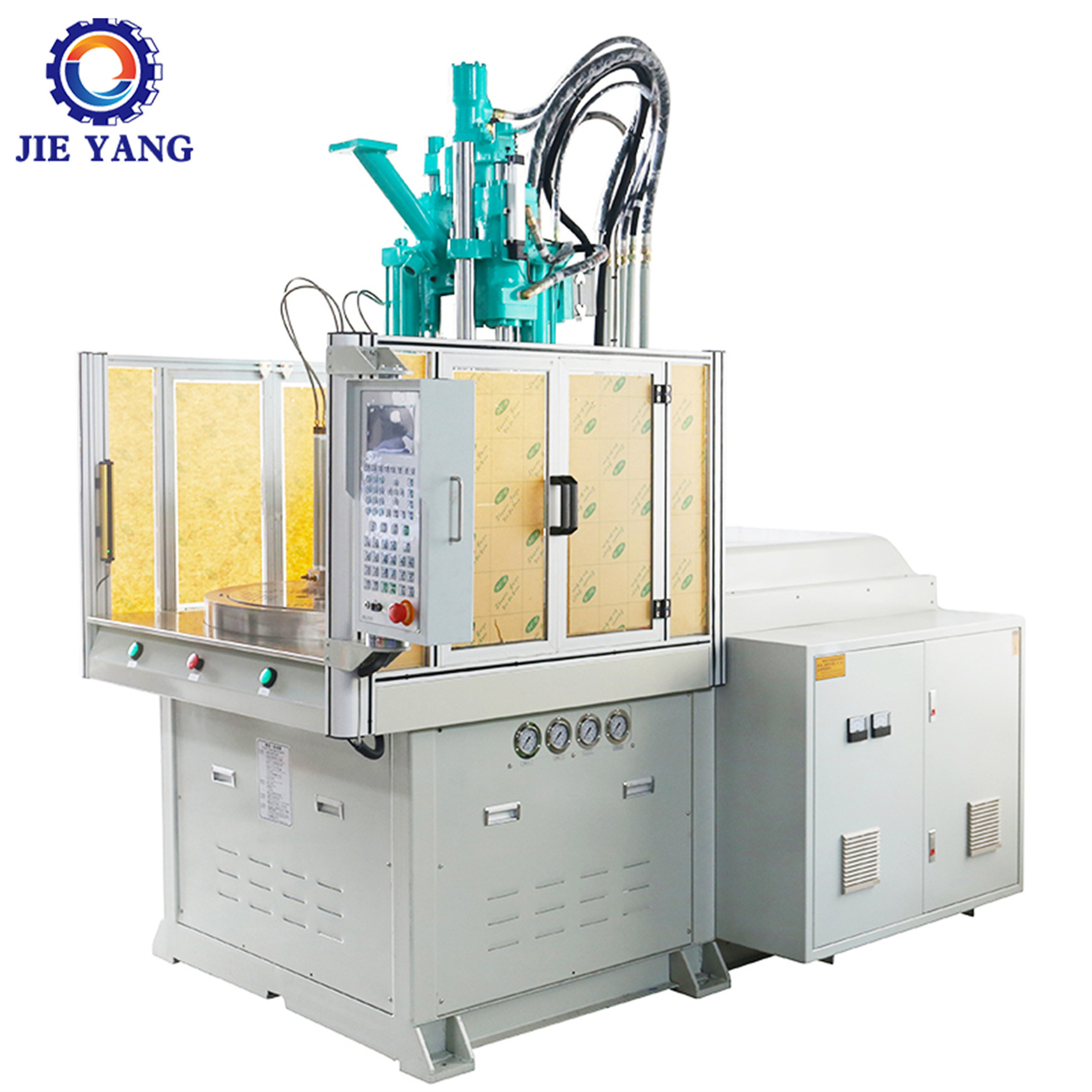

led lamp cover injection molding machine
-
Injection weight:
-
300g
-
Min.Mold Height:
-
300/400mm
-
Opening Stroke:
-
300mm
-
Machine weight:
-
9.2Tons
-
Machine Dimensions(LxWxH):
-
2.9*2.2*3.85m
-
Machine Color:
-
Customized
Quick Details
-
Mold Height(mm):
-
25 - 160 mm
-
Ejector Stroke(mm):
-
116 mm
-
Ejector Force(kN):
-
12.7 kN
-
Theoretical Shot Volume(cm³):
-
71.4 cm³
-
Injection Rate (g/s):
-
51.8 g/s
-
Injection Weight (g):
-
67.5 g
-
Screw Speed (rpm):
-
0 - 190 rpm
-
Screw diameter (mm):
-
28 mm
-
Distance between Tie Bars:
-
270
-
Weight (KG):
-
600 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
260 mm
-
Model Number:
-
JY-1600ST-R
-
Brand Name:
-
Jieyang
-
Power (kW):
-
2.2 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
optional
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
led lamp cover injection molding machine
-
Injection weight:
-
300g
-
Min.Mold Height:
-
300/400mm
-
Opening Stroke:
-
300mm
-
Machine weight:
-
9.2Tons
-
Machine Dimensions(LxWxH):
-
2.9*2.2*3.85m
-
Machine Color:
-
Customized
Product Description
| Specifications for Rotary Table Series | Unit | JY-1200ST-R | JY-1600ST-R | JY-2000ST-R | |||||||
| Screw Barrel Diameter | mm | 45 | 48 | 52 | 48 | 52 | 55 | 52 | 55 | 60 | |
| Max. Shot Weight | gram | 228 | 260 | 280 | 285 | 363 | 420 | 430 | 482 | 571 | |
| Injection Pressure | Kg/cm 2 | 1280 | 1125 | 1080 | 1495 | 1370 | 1295 | 1892 | 1780 | 1493 | |
| Max. Shot Speed | cm 3 /sec | 129 | 183 | 265 | 295 | 389 | 446 | 471 | 527 | 642 | |
| Screw Barrel Route | mm | 200 | 210 | 220 | |||||||
| Screw Barrel Rotary Speed | rpm | 0-200 | 0-210 | 0-220 | |||||||
| Nozzle Contact Force | tons | 7.5 | 8.5 | 9.5 | |||||||
| Nozzle Retraction Nozzle | mm | 210 | 220 | 230 | |||||||
| Number of Temperature Control | pcs | 4 | 5 | 5 | |||||||
| Clamping Force | tons | 120 | 160 | 200 | |||||||
| Disk Staion | pcs | 2/3 | 2/3 | 2/3 | |||||||
| Disk Diameter | mm | 1300 | 1400 | 1500 | |||||||
| Min. Mold Height | mm | 480/250 | 530/330 | 580/380 | |||||||
| Opening Stroke | mm | 250 | 300 | 320 | |||||||
| Max. Opening Mold Distance | mm | 450/200 | 890/690 | 985/890 | |||||||
| Ejetor Force | tons | 2.2 | 2.4 | 2.7 | |||||||
| Ejetor Stoke | mm | 150 | 170 | 180 | |||||||
| Max. Hydraulic Pressure | Kg/cm 2 | 140 | 140 | 140 | |||||||
| Pump Output | L/min | 56 | 63 | 70.5 | |||||||
| Oil Resservoir Capacity | Liter | 200 | 230 | 250 | |||||||
| Cooling Water Consumption | L/hr | 1000-1200 | 1200-1400 | 1300-1500 | |||||||
| Pump Motor Power | KW/Hp | 14.5/22HP | 16/23HP | 18.6/25HP | |||||||
| Barrel Heating Power | KW | 6 | 7 | 10 | |||||||
| Total Power | KW | 20 | 24 | 28 | |||||||
| OTHERS | Machine Weight | tons | 6 | 7.6 | 8.5 | ||||||
| Machine Dimension(LxWxH) | mm | 2700*2100*3200 | 3000*1920*2800 | 3200*2400*3800 | |||||||
| Shipping Weight | tons | 6.5 | 8.4 | 9 | |||||||
| Shipping Measurements(LxWxH) |
mm
CBM |
3000*2300*3400
23.5 |
3200*2150*3000
22.0 |
3400*2600*4000
35.5 |
|||||||
Machine Feature:
1.- This machine has 4(5)-phase temperature, suitable for most kinds of raw material.
2.- 2(3) stations greatly improve working efficiency and save labour.
3.- Equiped international famous brand components for keeping machine running stable, reliable and accurately.
4.- High-speed response servo motor ensures plasticizing capacity during working time.
5.- User-friendly LCD display which has 10 language systems indicates various functions and working situation, help to easy manage the production.
High-speed response servo motor provide high efficiency and low noise.
