Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LaserMen
-
Dimension(L*W*H):
-
1.95*1.85*1.12m
-
Weight (KG):
-
580 KG
-
Core Components:
-
laser tube
-
Mode of Operation:
-
CO2 Laser
-
Feature:
-
Steel and non-metal cutting
-
Name:
-
laser engraving machine
-
Max. working range:
-
1300*900mm
-
Laser tube:
-
CO2 glass laser tube Yongli 150w/180w/220w/300w
-
Cooling system:
-
Water pump
-
Controller:
-
RuiDa RDC6332M controller
-
Laser software:
-
RDWorks
-
Machine table:
-
Blade table and honeycomb table
-
Software:
-
RDworks laser sofware
-
Function:
-
Cutting Metal and Nonmetal Materials
-
Driving system:
-
3-phase stepper motors and drivers
Quick Details
-
Engraving Area:
-
1300*900mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-40000mm/min
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LaserMen
-
Dimension(L*W*H):
-
1.95*1.85*1.12m
-
Weight (KG):
-
580 KG
-
Core Components:
-
laser tube
-
Mode of Operation:
-
CO2 Laser
-
Feature:
-
Steel and non-metal cutting
-
Name:
-
laser engraving machine
-
Max. working range:
-
1300*900mm
-
Laser tube:
-
CO2 glass laser tube Yongli 150w/180w/220w/300w
-
Cooling system:
-
Water pump
-
Controller:
-
RuiDa RDC6332M controller
-
Laser software:
-
RDWorks
-
Machine table:
-
Blade table and honeycomb table
-
Software:
-
RDworks laser sofware
-
Function:
-
Cutting Metal and Nonmetal Materials
-
Driving system:
-
3-phase stepper motors and drivers

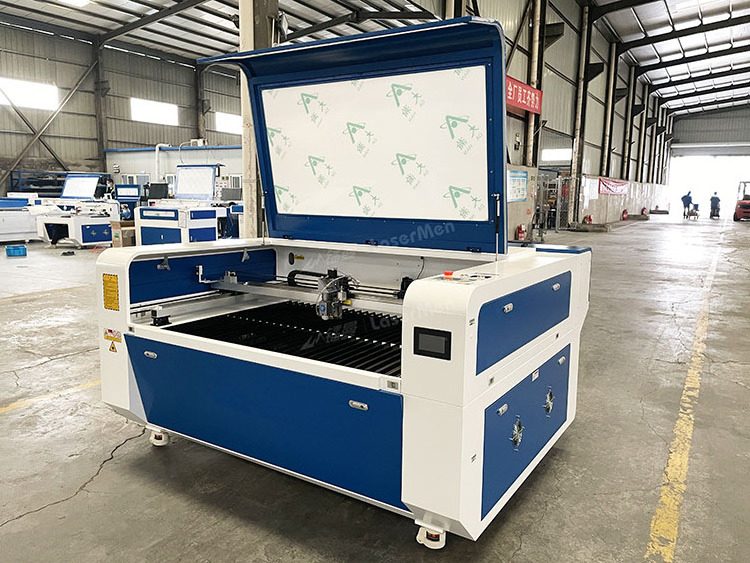

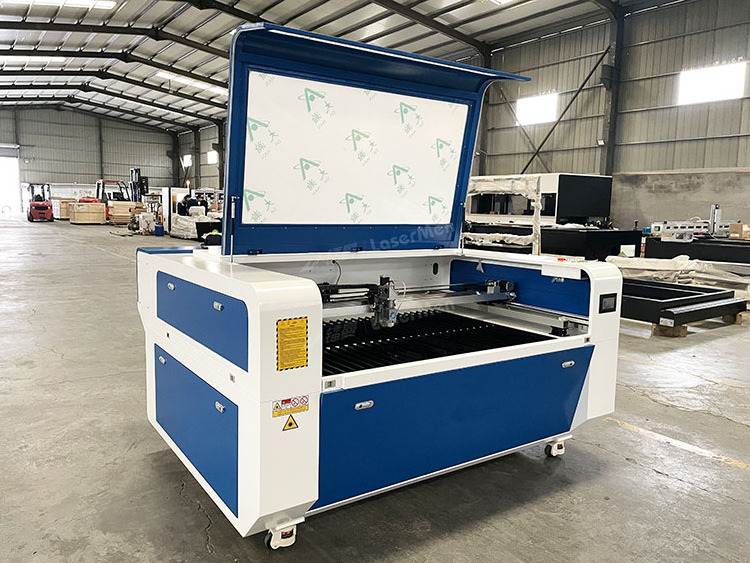

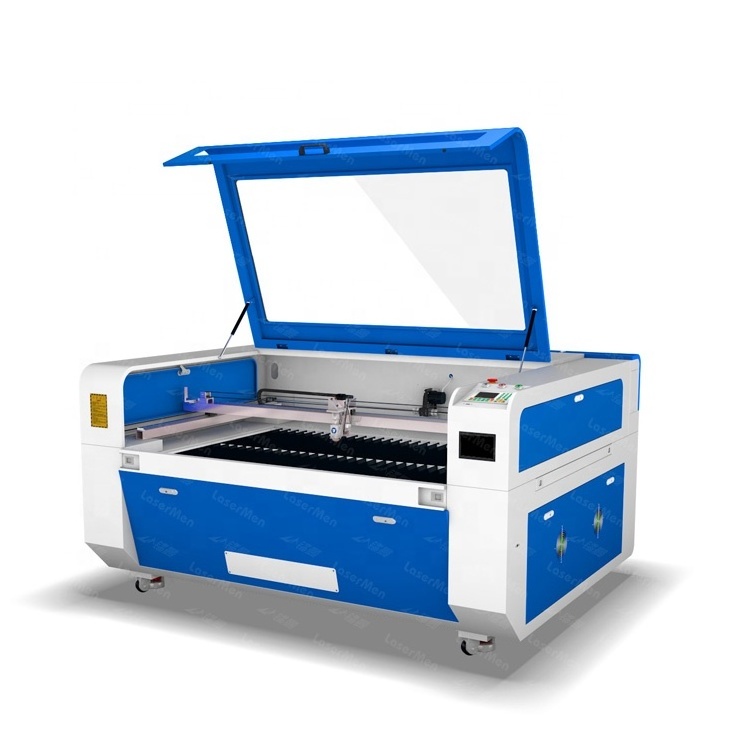

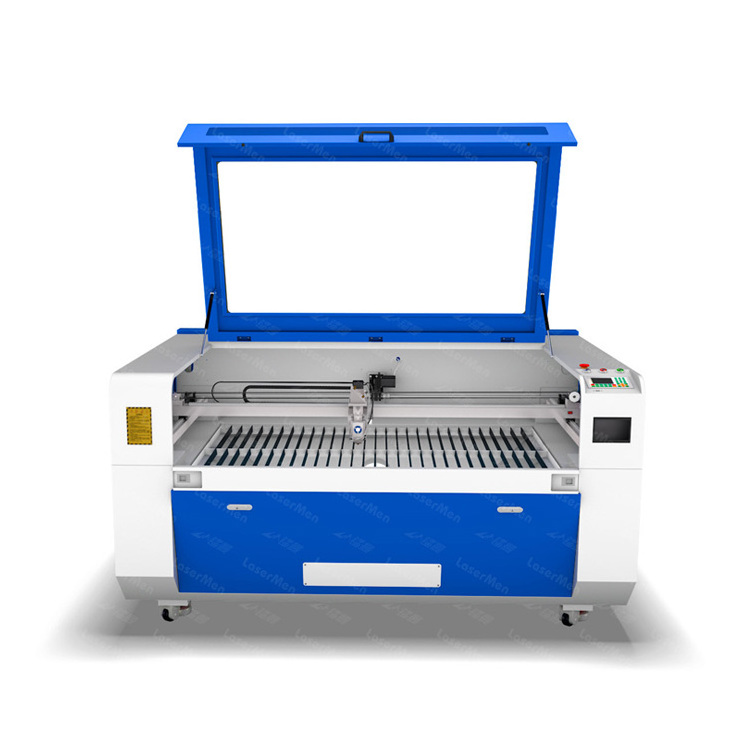

Economic CO2 mixing laser cutter for 1mm stainless steel carbon steel and 15mm acrylic cutting with 150W laser power
Machine Parameters
Metal And Nonmetal Laser Cutting Machine
1) Working area: 1300*900mm
2) Laser tube: Co2 laser tube
3) Working table: Blades / honeycomb
multi material laser cutting machine is equipped with co2 laser tube,can be used for cutting metal sheet such as carbon
steel,stainless steel and nonmetal materials such as acrylic, die board, MDF, plywood, etc.
LM-1390 adopting belt transmission + step motor and driving system ,it's the economic and most popular model .
steel,stainless steel and nonmetal materials such as acrylic, die board, MDF, plywood, etc.
LM-1390 adopting belt transmission + step motor and driving system ,it's the economic and most popular model .
|
Product name
|
Hybrid co2 laser engraving cutting machine (single head / double heads)
|
|
Model
|
LM-1390
|
|
Working area
|
1300*900mm
|
|
Laser power
|
150w + 80w
180w + 80w
240w + 80w
300w + 80w
|
|
Laser type
|
CO2 sealed laser tube
|
|
Transmission method
|
Belt transmission
|
|
Driving system
|
Step motor and driving system
|
|
Control system
|
RD6332M
|
|
Cooling system
|
Water cooling
|
|
Working table
|
Blade / honeycomb working table
|
|
Machine color
|
Blue and white, Accept customization
|
|
Optional function
|
Wifi, Rotaty, Red dot, auto-focus, motorized up-down table, safety interlock
|
|
Application material
|
Metal and nonmetal
|
|
Product keywords
|
sheet metal laser cutting machine, mixed laser cutting machine, metal cutting machine, hybrid laser cutting machine, metal and nonmetal laser cutting machine
|
Product Description :
1. Outstanding cutting cross section, high precision, good stability, satisfying the processing demands of precision parts.
Dynamic performance is stable, able to work for long time.
2. Capable of cutting both non-metal and metal, able to cut stainless steel, carbon steel, acrylic and wood, etc.
3. Laser cutting head with auto focusing system. Laser cutting head automatically adjusts its height along the metal sheet
surface, ensuring the focal length keeps the same all the time. Smooth cutting edge, no need polishing or other further handing. Flat and wavy steel sheets can be cut with this machine.
4. Double heads can be selected. The co2 laser head mainly used for engraving nonmetal materials, such as wood, acrylic, mdf, leather, plywood, plastic, etc.
5.
The machine side with Streamlined adornment, improve the visual effect.
6.
Reasonable distribution of electric appliances, optimizing the heat dissipation effect.
Product Details
Auto-focus Metal Sheet Laser Cutting Head
When the metal sheet is not plain, the auto focus laser cutting head can adjust the focusing distance automatically. Realize the accuracy of cutting effect.
Top China Brand Laser Tube
High stability,fine laser beam,with lifetime more than 10000 hours
.
Working table
Adopt Thicken machine bed, heavy loading. Not easy to get distort.
Focus system
The automatic height adjustment controller is an automatic height adjustment system based on capacitive sensing technology. Greatly improve the performance of the height adjuster’s motion speed and response speed, and achieve precise automatic height control.
Advanced Colorful LCD Screen+ USB Port+ DSP Offline Control
Support Both Metal and Non-Metal Cutting Parameters, Support U disk, USB communication
Stepper motor
Stepper motor and drive, work more stable and reliable.
The LM-1390 hybrid co2 laser cutting machine provides a z-axis lifting structure for optional assembly (for use with rotating shafts).
Laser power supply
Use current display, read and control current in real time, display work information.
Optional Functions
Product Application
Applicable Materials:
Non-metals: cutting acrylic, wood, MDF and other non-metal materials. Line engraving also can be done.
Metal: iron, stainless steel, carbon steel, galvanized steel, titanium sheets. Line engraving also can be done.
Non-metals: cutting acrylic, wood, MDF and other non-metal materials. Line engraving also can be done.
Metal: iron, stainless steel, carbon steel, galvanized steel, titanium sheets. Line engraving also can be done.
Application Industries:
Advertising industry (stainless steel and acrylic), sheet metal industry (carbon steel), packaging industry (plywood), arts and crafts, awards and trophies, paper-cutting, architectural models, lights and lamps, electronic appliances, photo frame and album, garment leather and other industries.
Advertising industry (stainless steel and acrylic), sheet metal industry (carbon steel), packaging industry (plywood), arts and crafts, awards and trophies, paper-cutting, architectural models, lights and lamps, electronic appliances, photo frame and album, garment leather and other industries.
