Quick Details
-
Application:
-
Garden
-
Support Dimmer:
-
Yes by DC12V-24V dimmer
-
Product Weight（kg）:
-
0.15
-
Input Voltage(V):
-
DC12V-24V
-
Lamp Luminous Flux(lm):
-
195
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 50
-
Working Lifetime(Hour):
-
35000
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
TMDM-Q3W
-
LED Light Source:
-
OSRAM-LED
-
Product name:
-
LED outdoor driveway lighting
-
Dimension:
-
D50x47mm
-
Cutout:
-
D35mm
-
Item name:
-
IP67 Underground Light /inground Light
-
Usage:
-
Outdoor ground or wall
-
Certification:
-
CE RoHS
Quick Details
-
Color Temperature(CCT):
-
6000K (Daylight Alert)
-
Warranty(Year):
-
3-Year
-
Lamp Body Material:
-
Aluminum Alloy
-
Application:
-
Garden
-
Support Dimmer:
-
Yes by DC12V-24V dimmer
-
Product Weight（kg）:
-
0.15
-
Input Voltage(V):
-
DC12V-24V
-
Lamp Luminous Flux(lm):
-
195
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 50
-
Working Lifetime(Hour):
-
35000
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
TMDM-Q3W
-
LED Light Source:
-
OSRAM-LED
-
Product name:
-
LED outdoor driveway lighting
-
Dimension:
-
D50x47mm
-
Cutout:
-
D35mm
-
Item name:
-
IP67 Underground Light /inground Light
-
Usage:
-
Outdoor ground or wall
-
Certification:
-
CE RoHS
Products Description

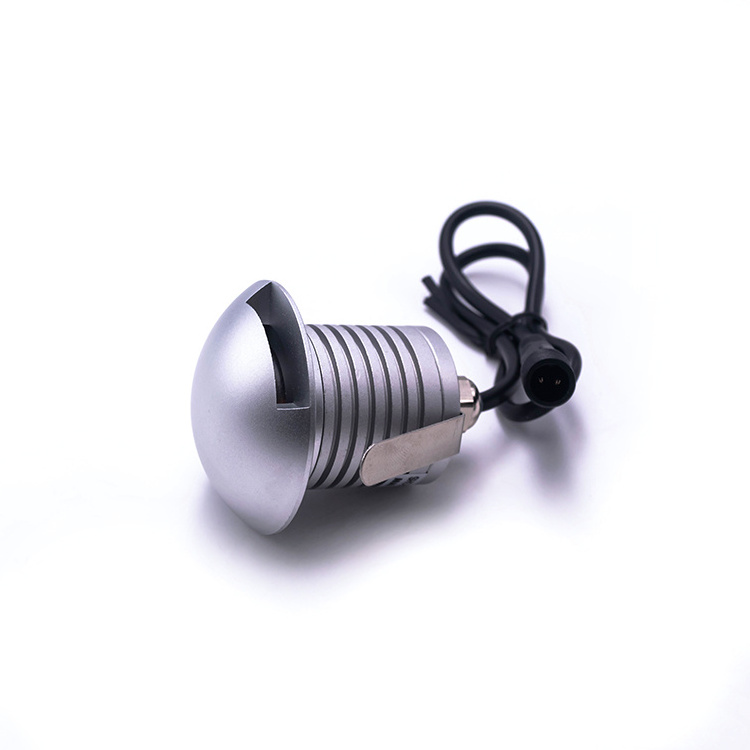

Dia50mm Driveway Pathway ground led spotlight, OSRAM led 280lm, Input voltage DC12V-24V, Recessed install, is good for Garden lighting, ground lighting, Pathway lighting, wall corner lighting, ect outdoor decoration lighting.
1. Protection class
IP 67, external use at ease.
2. Lighting color: Various light color for optional. Not only warm white, natural white, and cold white. But also have red, green, blue and other light.
3. Quality material: Light body with aluminum 6063. Corrosion-resistant, high temperature. Never change color, real durable. Loading capacity is around 300 kg. It can be walkable, it allows people walkover.
4. Low voltage: Single light’s voltage is DC 12-24 V. It can parallel connection to work on DC12V/24V power supply. Each light with male waterproof connector. Just adding extension cable to plug and play, very easy and convenient to use.
5. Wide application: Square, sidewalks, gardens, corrdorrs, parks,bridge, pathway, patio, and other outdoor places.
2. Lighting color: Various light color for optional. Not only warm white, natural white, and cold white. But also have red, green, blue and other light.
3. Quality material: Light body with aluminum 6063. Corrosion-resistant, high temperature. Never change color, real durable. Loading capacity is around 300 kg. It can be walkable, it allows people walkover.
4. Low voltage: Single light’s voltage is DC 12-24 V. It can parallel connection to work on DC12V/24V power supply. Each light with male waterproof connector. Just adding extension cable to plug and play, very easy and convenient to use.
5. Wide application: Square, sidewalks, gardens, corrdorrs, parks,bridge, pathway, patio, and other outdoor places.
Product Paramenters
|
Model No.
|
TMDM-Q3W
|
LED Type
|
OSRAM LED
|
|
Power
|
3W
|
CRI
|
>80Ra
|
|
Voltage
|
DC12V-24V
|
CCT
|
3000K/4000K/6000K
|
|
Lumens
|
280lm
|
Customized
|
2700K/Red/Green/Blue
|
|
Size
|
Dia50mm*L57mm, cut out 35mm
|
IP Protection
|
IP67 waterproof
|
|
Beam angle
|

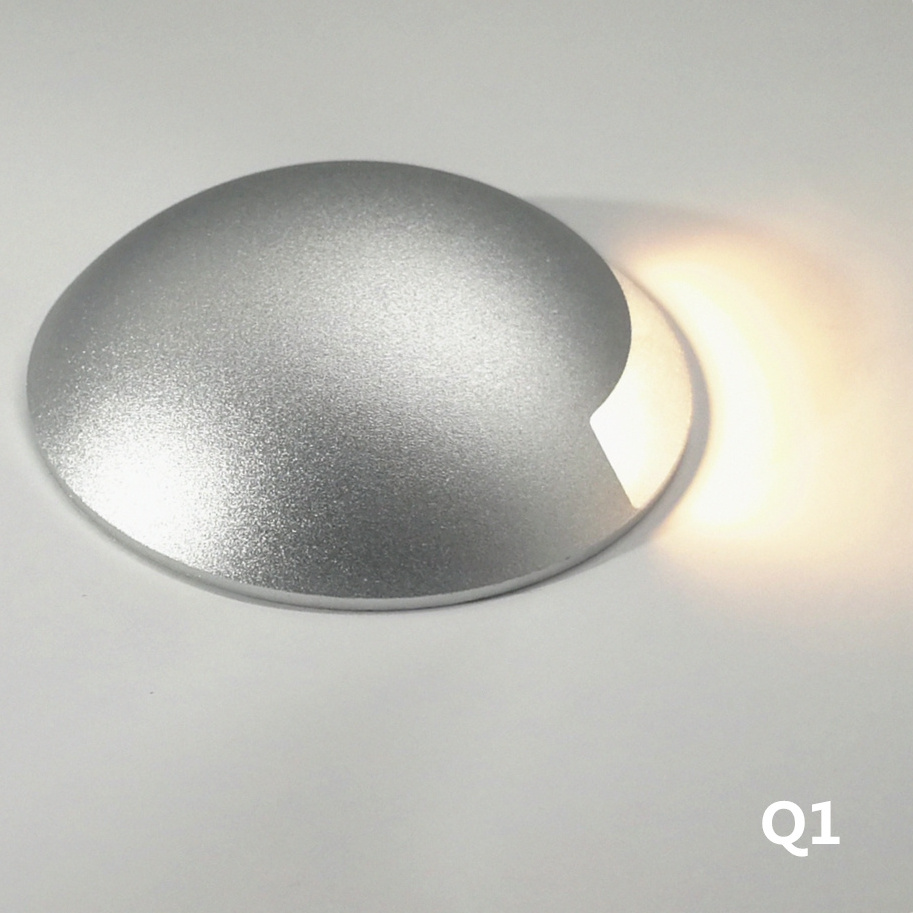

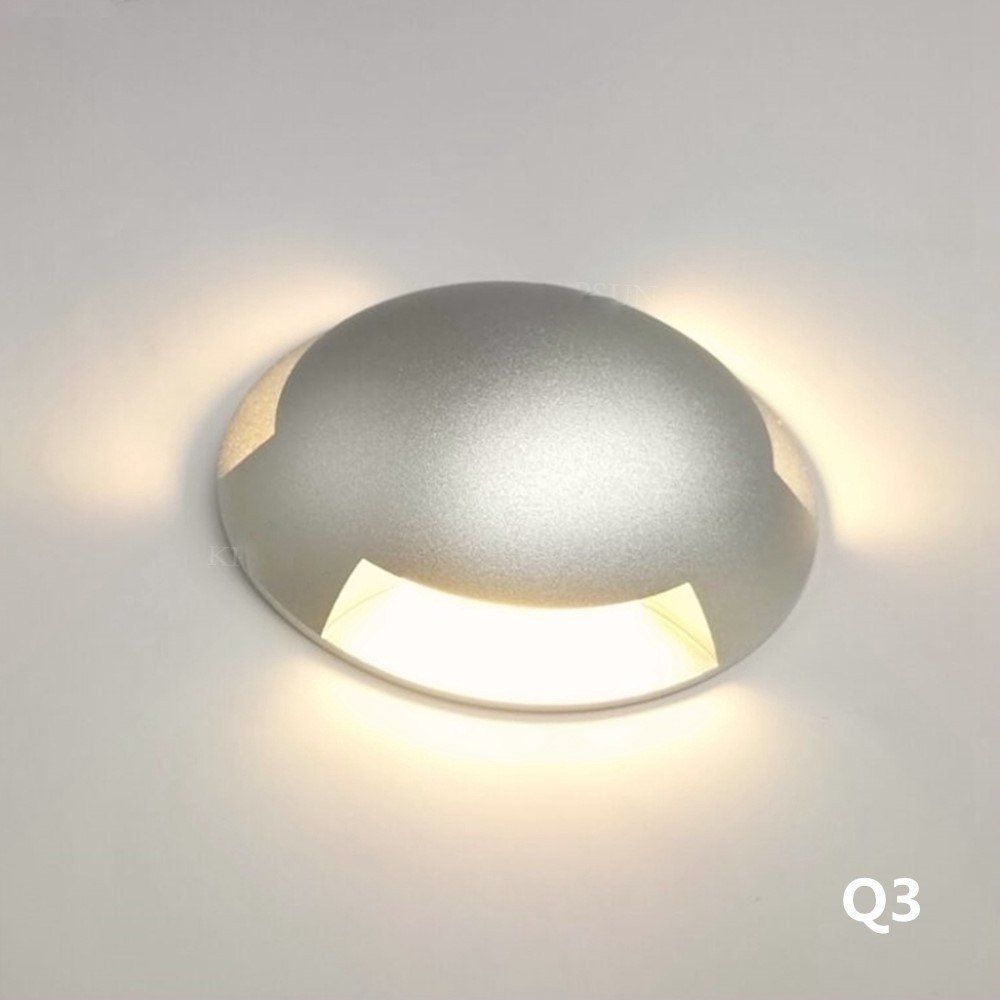

Q1, Q2, Q3 for option
|
Warranty
|
3 Years
|
Installation Instructions
Product packaging
|
Color box
|
units/160g
|
|
|
||
|
EXT CTN
|
180units, 29kg
|
|
|
||
|
Package Size(cm)
|
L
|
W
|
H
|
||
|
Color box
|
7
|
7
|
5
|
||
|
EXT CTN
|
52
|
52
|
44
|
||
