Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-

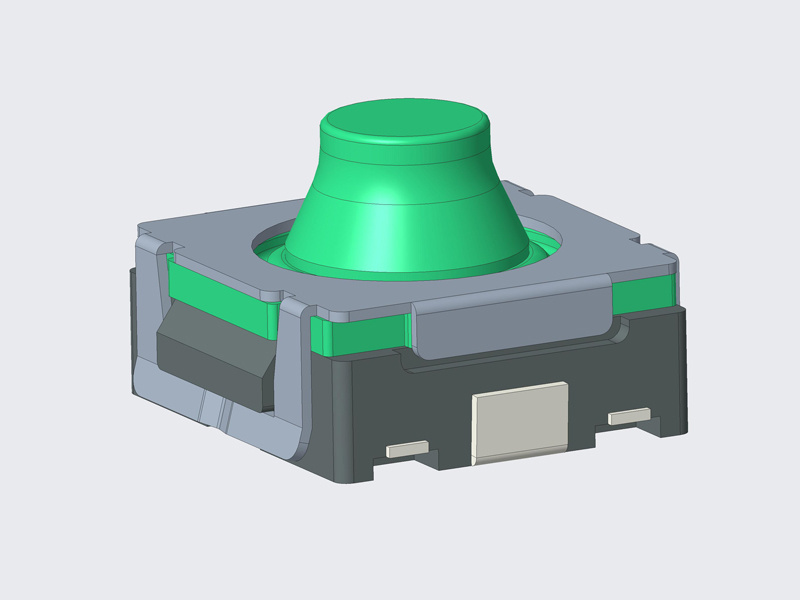

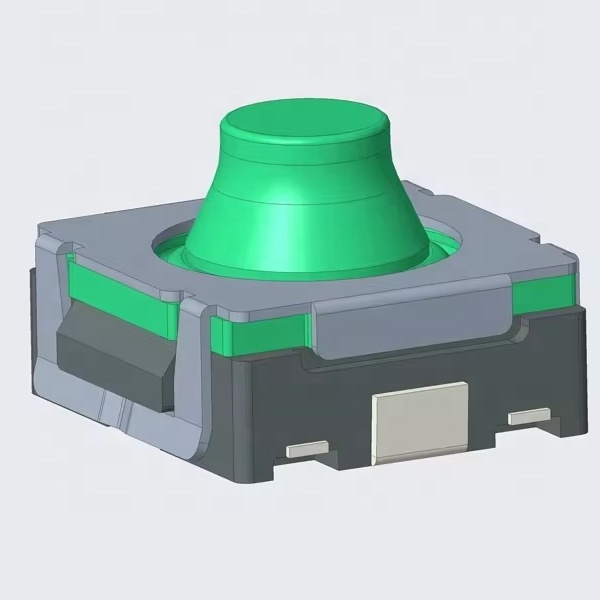

TS06 Tactile Switch
-
Operating Temperature:
-
-40℃ ~95℃
-
PAYMENT:
-
T/T
-
Shipping BY:
-
DHL
-
Packaging:
-
Standard Packing
Quick Details
-
Brand Name:
-
Soundwell
-
Model Number:
-
TS06
-
Type:
-
SWITCH TACTILE
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
TS06 Tactile Switch
-
Operating Temperature:
-
-40℃ ~95℃
-
PAYMENT:
-
T/T
-
Shipping BY:
-
DHL
-
Packaging:
-
Standard Packing
|
Switch Model
|
TS06 series
|
|
Switch travel
|
0.7±0.15mm
|
|
Rotational life
|
200,000 cycles Min
|
|
Working temperature
|
-40℃ ～95℃
|
|
Push operating force
|
380±45 gf
|
|
|
|
TS06
Rotary Switch
Main Specifications
|
Rated voltage
|
DC 15V
|
|
|
|
|||
|
Maximum rated current
|
20mA
|
|
|
|
|||
|
Switch travel
|
0.7±0.15mm
|
|
|
|
|||
|
Push operating force
|
380±45 gf
|
|
|
|
|||
|
Operating temperature
|
-40℃ ～95℃
|
|
|
|
|||
|
Rotational life
|
200,000 cycles Min
|
|
|
|
|||
|
Applications
|
Automotive control panel and other household appliances, related electronic equipment.
|
|
|
|
|||
|
Product features
|
Small size with good operating feel;
Avaliable in IP6X protection level; Applicable for SMT reflow soldering; |
|
|
|
|||
TS06
Rotary Switch

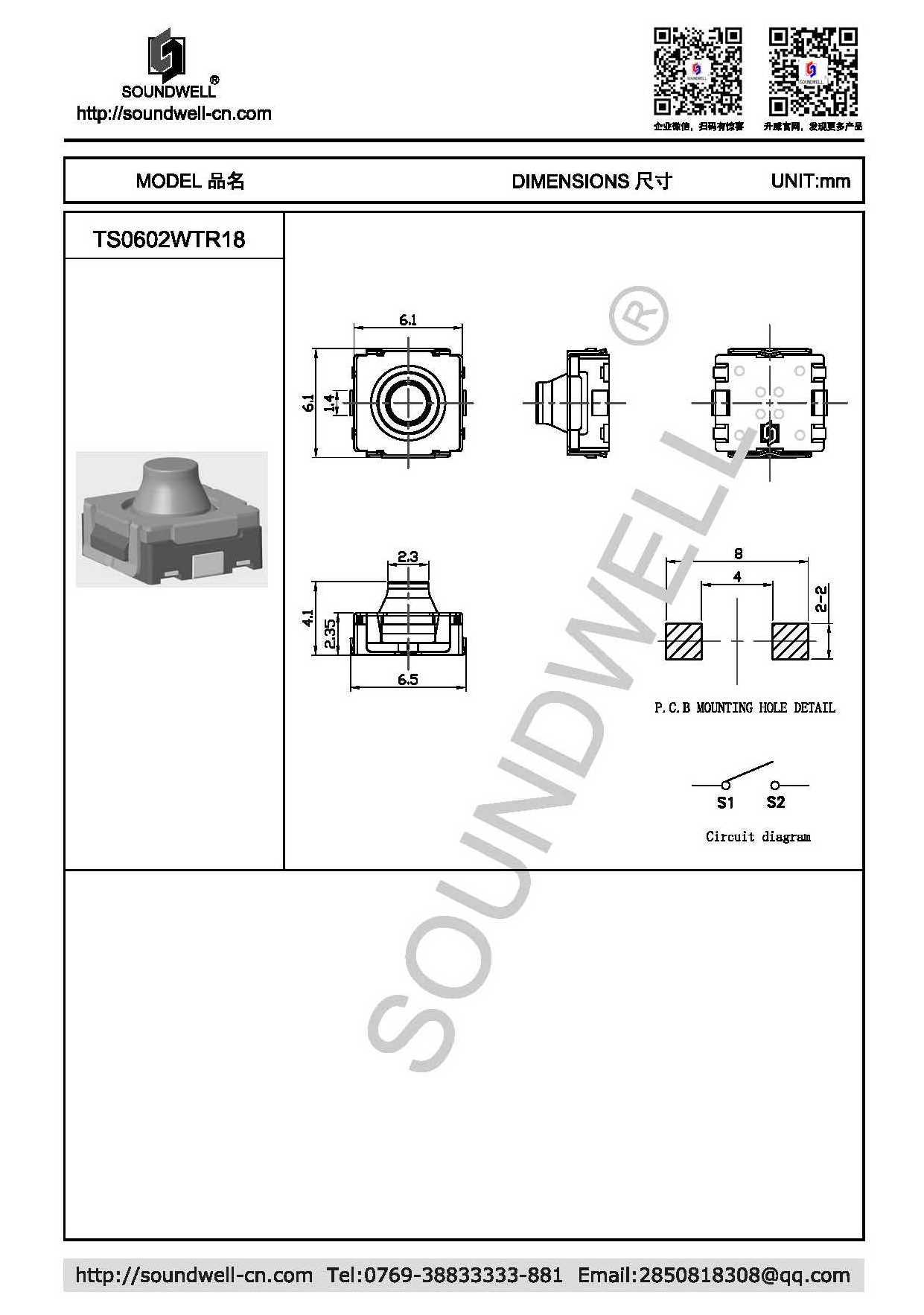

Specifications
1. Push operating force: 380±45 gf 2. Switch travel: 0.7±0.15mm
Two、ELECTRICAL CHARACTERISTIC
Three、ENDURANCE CHARACTERISTIC
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
