Quick Details
-
Model Number:
-
SVA1075X
-
Frequency range:
-
9 kHz~1.5 GHz
-
DANL:
-
-156 dBm/Hz, Normalize to 1 Hz (typ.)
-
Phase noise:
-
<-99 dBc/Hz@1 GHz, 10 kHz offset
-
Resolution bandwidth (RBW):
-
1 Hz~1 MHz, in 1-3-10 sequence
-
Communication Interface:
-
LAN, USB Device, USB Host(USB-GPIB)
-
Remote Control Capability:
-
SCPI / Labview / IVI based on USB-TMC / VXI-11 / Socket / Telnet
-
Remote Controller:
-
NI-MAX, Web Browser, Easy Spectrum software, File Explorer
Quick Details
-
Type:
-
Series Spectrum & Vector Network Analyzers
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SIGLENT
-
Model Number:
-
SVA1075X
-
Frequency range:
-
9 kHz~1.5 GHz
-
DANL:
-
-156 dBm/Hz, Normalize to 1 Hz (typ.)
-
Phase noise:
-
<-99 dBc/Hz@1 GHz, 10 kHz offset
-
Resolution bandwidth (RBW):
-
1 Hz~1 MHz, in 1-3-10 sequence
-
Communication Interface:
-
LAN, USB Device, USB Host(USB-GPIB)
-
Remote Control Capability:
-
SCPI / Labview / IVI based on USB-TMC / VXI-11 / Socket / Telnet
-
Remote Controller:
-
NI-MAX, Web Browser, Easy Spectrum software, File Explorer
Product Description
Main Features
|
|
Product Overview
5 Powerful Measurement Functions in 1 Affordable Instrument

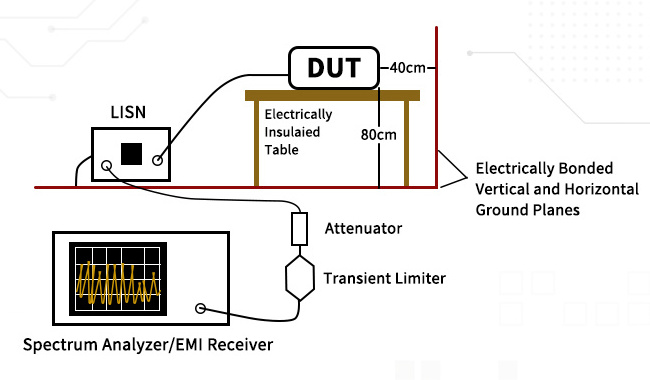

Vector Network Analysis + EMI Pre-Compliance Test + Distance-to-Default and Antenna Measurement + Spectrum Analyzer + Modulation Analysis = SVA1000X

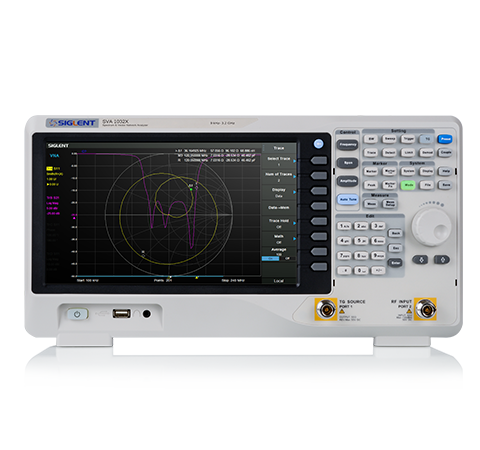

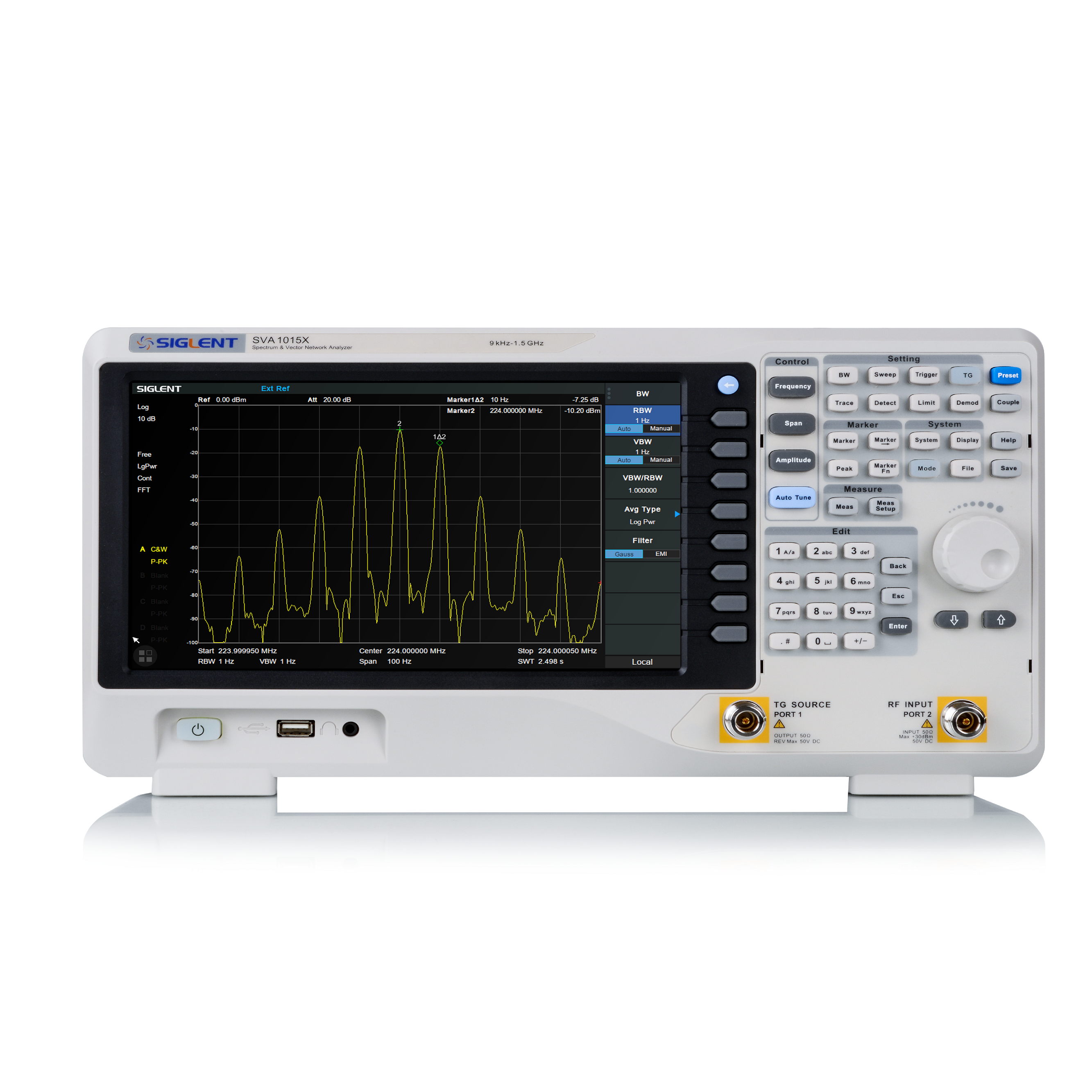

As a versatile analyzer for spectrum analysis and network analysis of Siglent Technology, SVA1000X employs advanced microwave technology and modern digital processing algorithms. It has multiple functions and excellent performance. With all the functions and performance of the SSA3000X spectrum analyzer series, also with the built-in 10 M-1.5 G directional coupler, it is a fully functional dual-port single-direction vector network analyzer. It is an ideal tool for education and RF engineers.
As a versatile analyzer for spectrum analysis and network analysis of Siglent Technology, SVA1000X employs advanced microwave technology and modern digital processing algorithms. It has multiple functions and excellent performance. With all the functions and performance of the SSA3000X spectrum analyzer series, also with the built-in 10 M-1.5 G directional coupler, it is a fully functional dual-port single-direction vector network analyzer. It is an ideal tool for education and RF engineers.

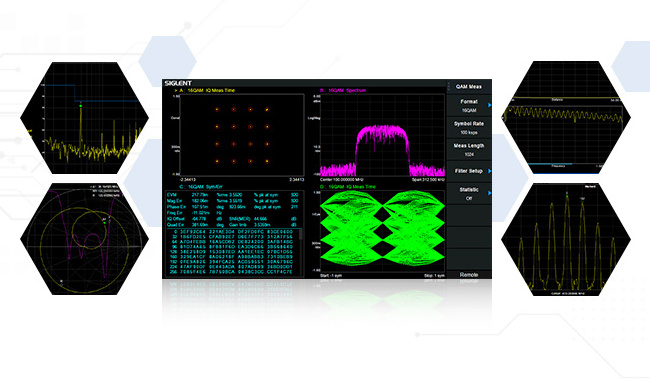

Deep Analysis of Modulated Signals
