Quick Details
-
Model Number:
-
BWT-24/230-2KVA
-
Output Frequency:
-
50/60HZ
-
Size:
-
482mm*347mm*88mm
-
Weight:
-
13kg
-
Product name:
-
24V 230V DC To 230V AC 2KVA 1500w 1600W Pure Sine Wave Power Inverter
-
Overload capacity:
-
150% 60s
-
Output waveform:
-
Pure Sine Wave Output
-
Display:
-
LED+LCD
-
Phase:
-
Single Phase Power Inverter
-
Capacity:
-
1kw/2jw/3kw/4kw/5kw/6kw
-
Package:
-
Paper Skin Carton
-
Starting torque:
-
0.5HZ:180% (SVC1)
-
Control mode:
-
Sensorless Vector Control
-
Rated Output Current:
-
7.2A
-
Certificate:
-
CE
Quick Details
-
Output Current:
-
6.9A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Bwitt
-
Model Number:
-
BWT-24/230-2KVA
-
Output Frequency:
-
50/60HZ
-
Size:
-
482mm*347mm*88mm
-
Weight:
-
13kg
-
Product name:
-
24V 230V DC To 230V AC 2KVA 1500w 1600W Pure Sine Wave Power Inverter
-
Overload capacity:
-
150% 60s
-
Output waveform:
-
Pure Sine Wave Output
-
Display:
-
LED+LCD
-
Phase:
-
Single Phase Power Inverter
-
Capacity:
-
1kw/2jw/3kw/4kw/5kw/6kw
-
Package:
-
Paper Skin Carton
-
Starting torque:
-
0.5HZ:180% (SVC1)
-
Control mode:
-
Sensorless Vector Control
-
Rated Output Current:
-
7.2A
-
Certificate:
-
CE
Product Description

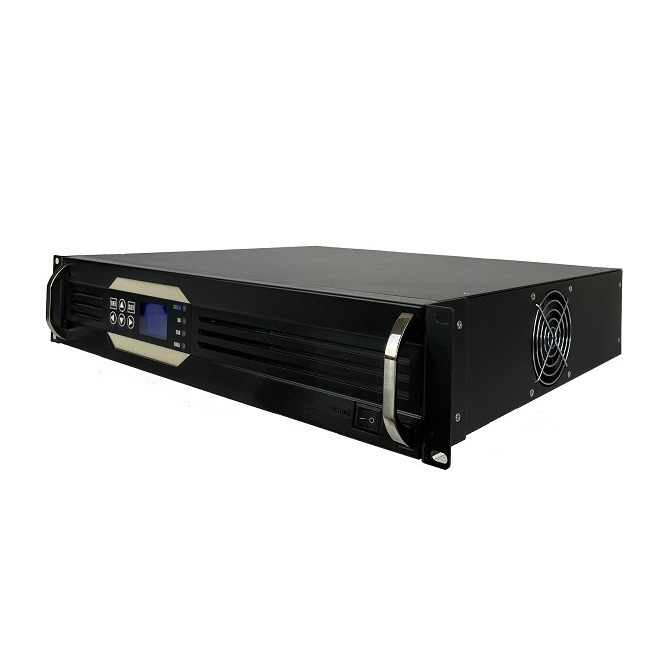

DC 24V 230V DC To 230V AC 2KVA 1500w 1600W Pure Sine Wave Power Inverter
Main Features
and inverting malfunction
7)Converse current control: not disturb other communication device in the same DC cabinet
8)TCP/IP : Optional
9)SNMP : Optional
8)TCP/IP : Optional
9)SNMP : Optional
Technical Data
|
DC input
|
allowable range of input DC voltage
|
Cut off voltage:
≤20
Vdc,or ≥30Vdc;
Start up voltage: 22Vdc~28Vdc
|
|
|
Max.current
|
84A
|
|
AC by-pass input
|
Allowable by-pass voltage (Vac)
|
180Vac~260Vac
|
|
|
Rated input current(A)
|
10A
|
|
|
By-pass conversion time(ms)
|
≤4ms
|
|
AC Output
|
Rated Capacity(VA)
|
2KVA
|
|
|
Rated output Power(W)
|
1600W
|
|
|
Rated Output current
|
6.9A
|
|
|
Output Voltage
|
220Vac(±10V) ,Adjustable LCD display
|
|
|
Output Voltage precision(V)
|
220V±1.5%/110V±1.5%
|
|
|
Power factor(PF)
|
>0.8
|
|
|
Inversion efficiency(80% resistive load)
|
≥85%(80% liner Load)
|
|
|
Over load
|
100%-120% 60s , 121%-150% 10s
|
|
|
Dynamic response time
|
5% ( load 0% to 100%)
|
|
|
Waveform
|
Pure sine wave
|
|
|
By-pass Switch time
|
≤4ms
|
|
|
Output Frequency
|
50-60Hz(auto sync with bypass input)
|
|
|
THD
|
≤3% (liner load)
|
|
Working environment
|
Noise(1m)
|
≤40dB
|
|
|
Operating Environment Temperature
|
-20~+50°C
|
|
|
Humidity
|
0~90%,No moisture condensation
|
|
|
Operating Altitude (m)
|
≤2000m full power output
|
Certifications
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
562X492X195mm
|
|
|
Weight
|
13KGS
|
|
|
Packaging Details
|
packed inside the double corrugated grey cartons separately or pack it according to customers special request. |
|
