Quick Details
-
roll laminator:
-
laminating machine
-
Max length of film(m):
-
1000
-
Max width of film(mm):
-
500
-
Diameter of core of film adopted(mm):
-
75
-
Thickness of paper core(g/m2):
-
150-350
-
Speed adjustment range(m/min):
-
1-7
-
Rated input voltage(V/Hz):
-
220-240V/50,60Hz,2200W
-
Dimensions WxDxH:
-
1220x1040x990mm
-
Weight:
-
315kg
-
Certification:
-
CE Certificate
Quick Details
-

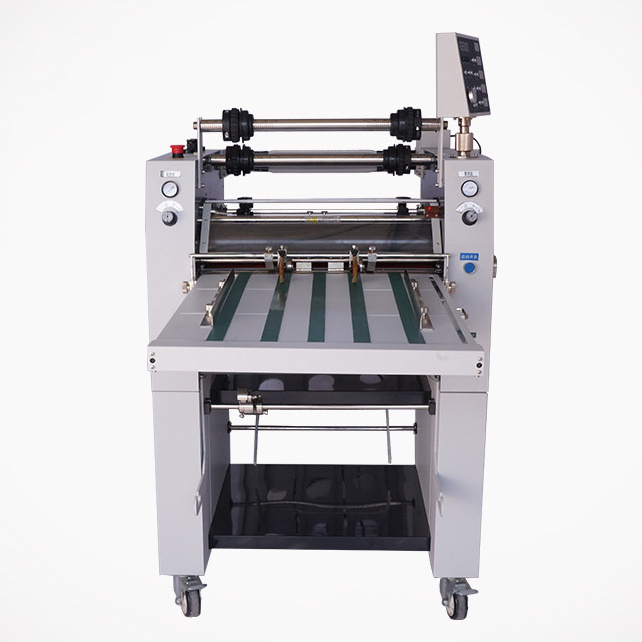

Type:
-
Heated Roll Laminator
-
Model Number:
-
GS5002
-
Place of Origin:
-
Beijing, China
-
roll laminator:
-
laminating machine
-
Max length of film(m):
-
1000
-
Max width of film(mm):
-
500
-
Diameter of core of film adopted(mm):
-
75
-
Thickness of paper core(g/m2):
-
150-350
-
Speed adjustment range(m/min):
-
1-7
-
Rated input voltage(V/Hz):
-
220-240V/50,60Hz,2200W
-
Dimensions WxDxH:
-
1220x1040x990mm
-
Weight:
-
315kg
-
Certification:
-
CE Certificate
Quick set up time
High speed performance
Semi-automatic feeder
Built in separator
Work comes finished ready for guillotine
Suitable for traditional offset and digital prints
Side lays ensure prints are fed centrally
Auto sheet register&overlap system via front guards
High speed performance
Semi-automatic feeder
Built in separator
Work comes finished ready for guillotine
Suitable for traditional offset and digital prints
Side lays ensure prints are fed centrally
Auto sheet register&overlap system via front guards
Specification
| Model | GS5002 |
| Max length of film(m) | 1000 |
| Max width of film(mm) | 500 |
| Diameter of core of film adopted(mm) | 75 |
| Thickness of paper core(g/m²) | 150-350 |
| Max specification of printing products adopted(mm) | 510×640 |
| Min specification of printing products adopted(mm) | 200×300 |
| Speed adjustment range(m/min) | 1-7 |
| Temperature adjustment range(ºC) | 80-140 |
| Rated input voltage(V/Hz) | 220-240V/50,60Hz,2200W |
| Dimensions W×D×H | 1220×1040×990mm |
| Weight | 315kgs |
