Quick Details
Quick Details
-
Output Current:
-
1.7A
-
Place of Origin:
-
Zhejiang, China
-
Output Power:
-
201 - 300w
Product Description

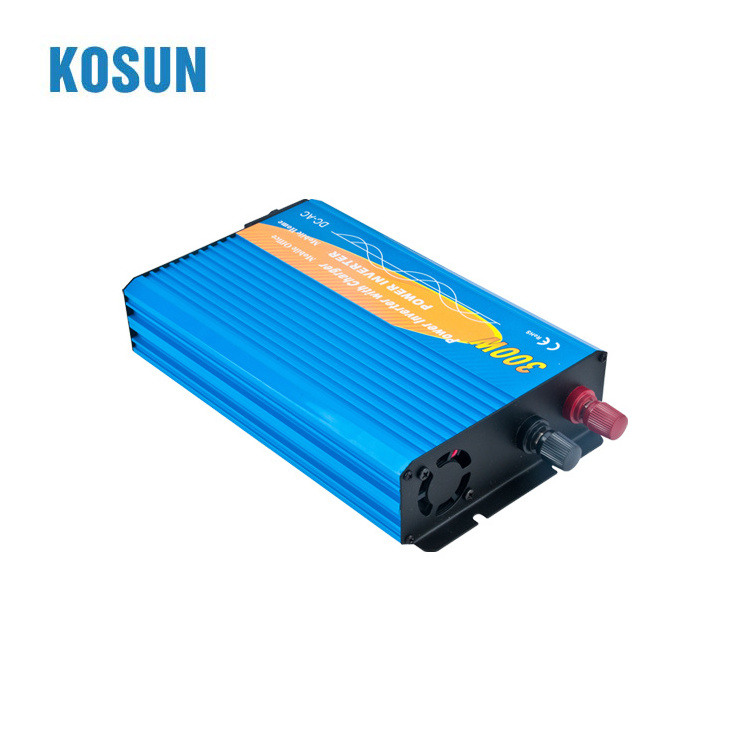

| Model No. | KSC300P | ||||
| Output | AC Voltage | 110V 120V 220V 230V 240VAC | |||
| Rated Power | 300W | ||||
| Peak Power | 600W | ||||
| Waveform | Pure sine wave(THD<5%) | ||||
| Frequency | 50/60Hz( ±1Hz ) | ||||
| LED Indicator | Green LED for power on | ||||
| Red LED Fault Status | |||||
| Input | No Load Current | <0.35A | |||
| DC Voltage | 12V | 24V | 48V | ||
| Voltage Range | 10.5~15.0VDC | 21.0~30.0VDC | 42.0~60VDC | ||
| Efficiency | >86% | ||||
| Charger | Max circuit charger | 12V | 20A | ||
| 24V | 10A | ||||
| Feature | Automatic switching | ||||
| Protection | Bat Low Alarm | 10.8 ±0.2VDC | 21.6 ± 0.4VDC | 43.2 ± 0.8VDC | |
| Bat Low Shutdown | 10.2 ±0.2VDC | 20.4 ± 0.4VDC | 40.8 ± 0.8VDC | ||
| Over Load | 120%Pe, Shut off output voltage, re-power on to recover | ||||
| Over Voltage | 15.7 ±0.2VDC | 31.4 ±0.4VDC | 62.8 ±0.8VDC | ||
| Over Temperature | 75℃, Shut off output voltage, re-power automatically after temperature goes down | ||||
| Output Short | Shut off output voltage, re-power on to recover | ||||
| Environment | Working Temp. | 0~+40°C | |||
| Working Humidity | 20% ~ 90% RH non-condensing | ||||
| Storage Tem. Humidity | -30°C~+70°C/22°F~+158°F | ||||
| Others | Dimension | 420 ×340×440mm(L×W×H) | |||
| Packing | 17.5KGS | ||||
| Application | Home and Office appliances, Power tools and Portable equipment, Vehicle, Yacht and Solar power system… | ||||
Socket type
Packaging & Shipping
- Delivery Time
- 15days after receive advance payment
