Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ROYAL PAKCING
-
Dimension(L*W*H):
-
3950*1724mm
-
Weight:
-
1600 KG
Quick Details
-
Application:
-
Food, Machinery & Hardware
-
Packaging Material:
-
Plastic
-
Voltage:
-
380v
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ROYAL PAKCING
-
Dimension(L*W*H):
-
3950*1724mm
-
Weight:
-
1600 KG

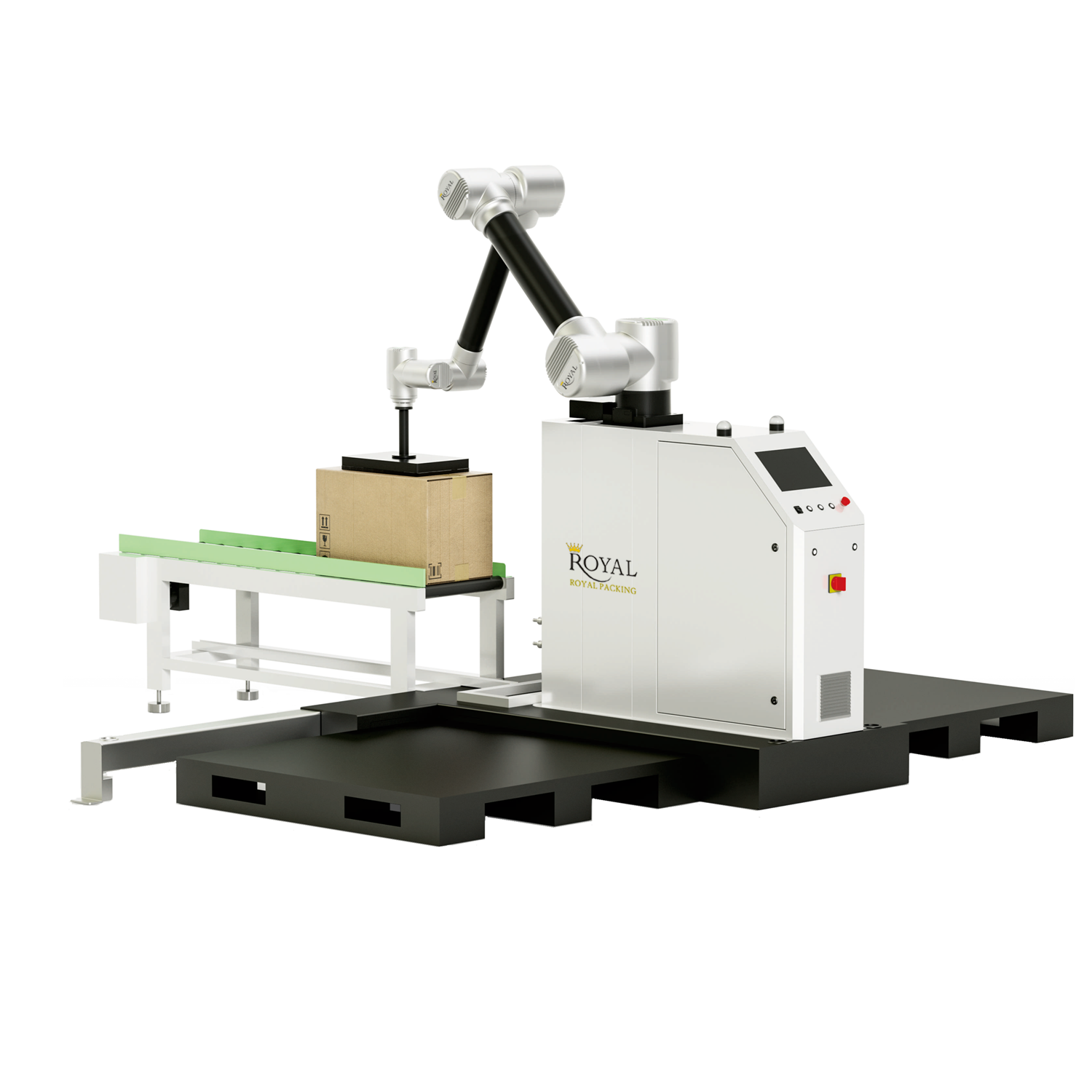

Product Description
Product Description

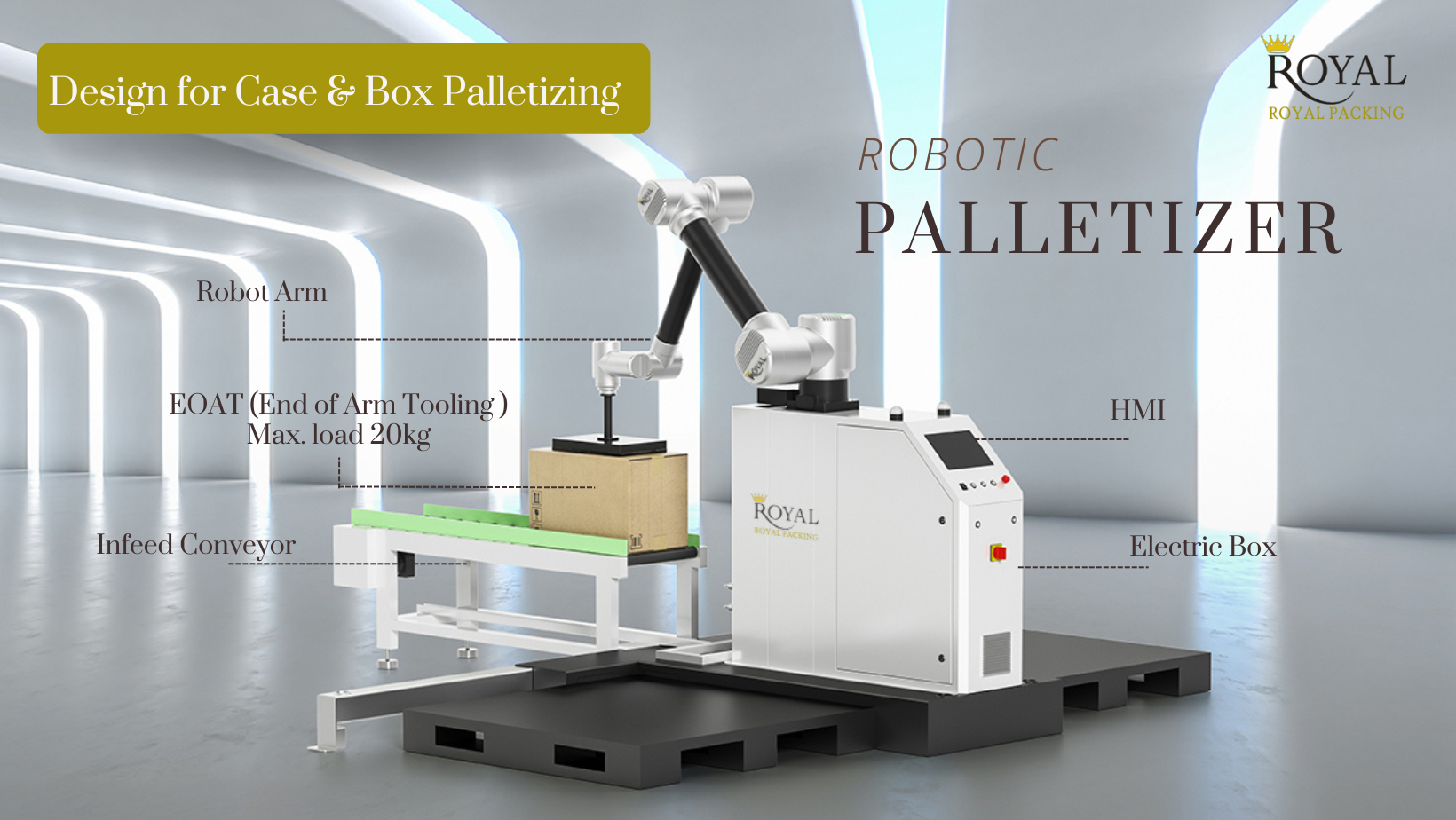

Provide Optimized Palletizing Solution
Customized box and customized pallet scale
Customized box position and sequence
Stacking simulation and collision detection
User Can Extend Functions Flexibility
Replace to user-defined end of arm tooling
Add more visual functions such as bar code recognition
Apply an additional sensor for induction detection before placing the carton
Add partition application relevant action flow
Main Functions
Lifting correction
Set various machine / operation parameters in application.
Safety and Stability
Can work directly side by side with man without protective isolation, high reliability and safety to human being;
Support L10 collision detection as well as sensor safety detection;
16pcs safety I/O connections are provided, safety function will not be lost in case of fault;
The end does not fall when it is powered off, ensure a safe and stable working.
Flexible Working
Multiple functional scenarios can be switched quickly, and flexible production can be realized through machine collaboration, dual machine collaboration, multi machine collaboration, etc.
Flexible Deployment
Integrated design, light and flexible, small land occupation.
It is simple and fast in workstation deployment new task setting, high efficient;
Widely Application
It is widely applied to products, medicine, 3C, chemicals, e-commerce and other industries;
Easy programming
Programming style can be mastered within 0.5h, and simple programming can be completed in 1h;
Visual programming is simple and effective, you can easily operate the machine without being proficient in programming language.
Economic reality
Average 6-12 months to recover the investment cost.
Technical details:
Payload:up to 20 kg
Capacity: up to 8 cycles per minute
Pallet sizes: EUR, INDU, US, JPN and AUS;Less than 1220mm × 1220mm.
Pallet height: up to 2100 mm (including pallet)
Footprint:3590mm × 1724mm(Excluding fencing)
Partial Detail
|
Base style:
|
Installation Base
|
Lifting Base
|
||
|
Specification
|
3950*1724mm
|
3950*1724mm
|
||
|
Max Load
|
20kg
|
20kg
|
||
|
Pallet Working Radius
|
1600mm
|
1600mm
|
||
|
Robot Arm Span
|
3000mm
|
16000mm
|
||
|
Pallet Size
|
1200*1200mm
|
1200*1200mm
|
||
|
Power Supply
|
200-240V 50/60Hz
|
200-240V 50/60Hz
|
||
|
Palletizing Height
|
1650mm(including pallet)
|
2100mm(including pallet)
|
||
|
Max. Working Speed
|
1.2M/S
|
1.2M/S
|
||
|
Range of Motion(ROM)
|
J1 : ±360°
|
J1 : ±360°
|
||
|
|
J2 : ±125°
|
J2 : ±125°
|
||
|
|
J3 : ±160°
|
J3 : ±160°
|
||
|
|
J4 : ±180°
|
J4 : ±180°
|
||
|
|
J5 : ±360°
|
J5 : ±360°
|
||
|
|
J6 : ±360°
|
J6 : ±360°
|
||
|
Max.Speed of Motion
|
J1/J2/J3: 148°/s
|
J1/J2/J3: 148°/s
|
||
|
|
J4/J5/J6: 186°/s
|
J4/J5/J6: 186°/s
|
||
|
Positioning Accuracy
|
±0.04mm
|
±0.04mm
|
||
|
Communication Type
|
EtherCAT
|
EtherCAT
|
||
|
IP Grade
|
IP54
|
IP54
|
||
|
Temperature Range
|
0-55ºC
|
0-55ºC
|
||
|
Power Consumption
|
120w
|
120w
|
||
|
Material
|
Aluminum alloy, Carbon fiber
|
Aluminum alloy, Carbon fiber
|
||

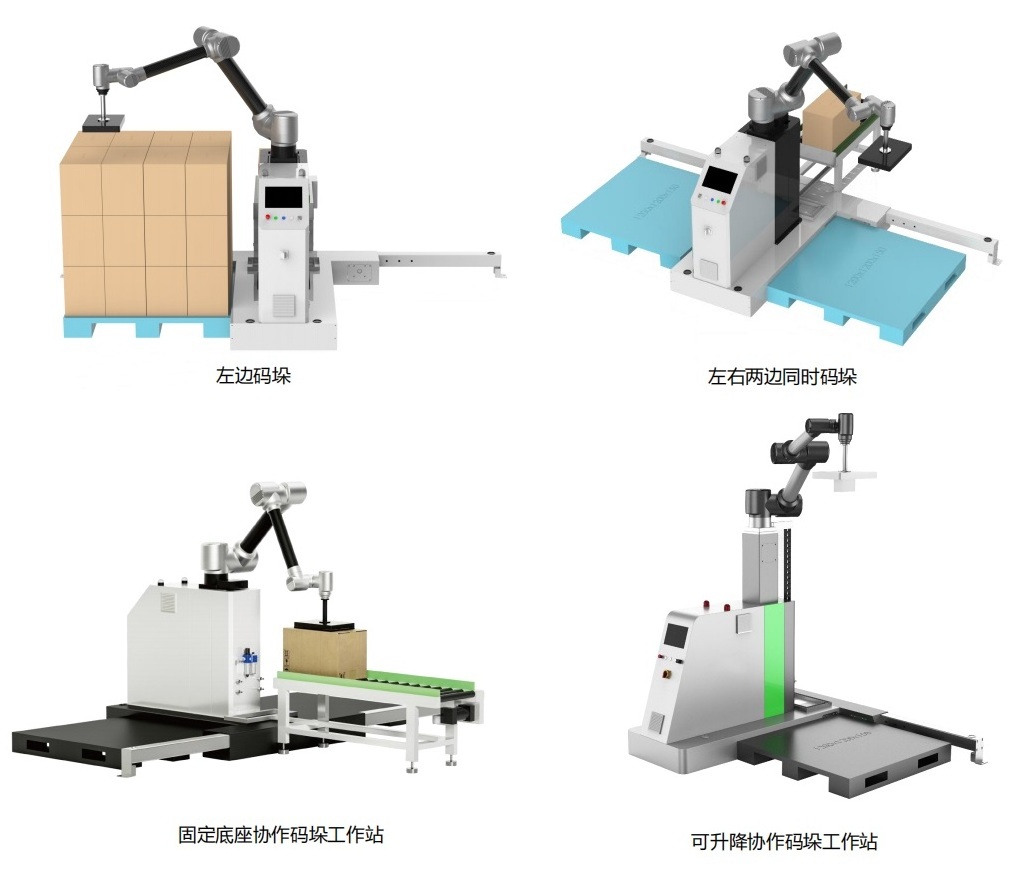

Different style
Specification
|
item
|
value
|
|
Type
|
Packaging Line
|
|
Applicable Industries
|
Manufacturing Plant, Machinery Repair Shops, Printing Shops, Other
|
|
Showroom Location
|
Canada, Turkey, Italy, Viet Nam, Philippines, Mexico, Russia, Thailand, Morocco, Uzbekistan
|
|
Condition
|
New
|
|
Application
|
Food, Machinery & Hardware
|
|
Packaging Type
|
Cartons
|
|
Packaging Material
|
Plastic
|
|
Automatic Grade
|
Automatic
|
|
Driven Type
|
Electric
|
|
Voltage
|
380v
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
Brand Name
|
ROYAL PAKCING
|
|
Dimension(L*W*H)
|
3950*1724mm
|
|
Weight
|
1600KG
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
Easy to Operate
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
3 months
|
|
Core Components
|
Bearing, Motor, PLC, Engine
|
|
|
|

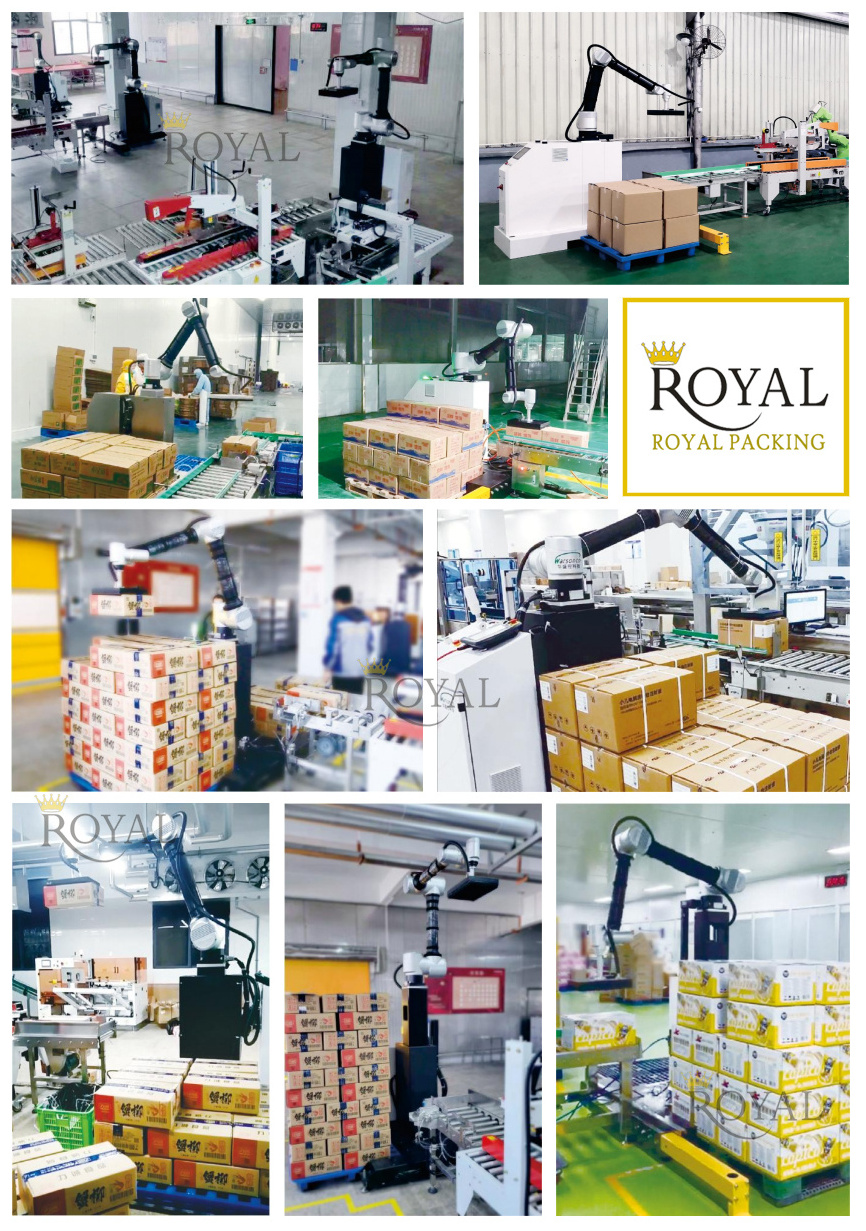

Machine Photos
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
