Quick Details
-
Model Number:
-
EUM200S105DGEUM200S150DGEUM200S280DGEUM200S560DG
-
Output Frequency:
-
N/A
-
Application:
-
high bay, high mast roadway
-
Certification:
-
CE,TUV,CB,FCC,ENEC,KS,KC,PSE,BIS
-
Warranty:
-
5 Years
-
Protection:
-
All-Around Protection: OVP, SCP, OTP
-
Efficiency:
-
92.0%~93.5%
-
Size(MM):
-
188 x 60 x 36.5
-
PF:
-
120Vac:0.99 220Vac:0.96
-
THD:
-
10%,20%
-
pk-pk:
-
5%Iomax
-
Output power:
-
200w
Quick Details
-
Warranty(Year):
-
5-Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Inventronics
-
Model Number:
-
EUM200S105DGEUM200S150DGEUM200S280DGEUM200S560DG
-
Output Frequency:
-
N/A
-
Application:
-
high bay, high mast roadway
-
Certification:
-
CE,TUV,CB,FCC,ENEC,KS,KC,PSE,BIS
-
Warranty:
-
5 Years
-
Protection:
-
All-Around Protection: OVP, SCP, OTP
-
Efficiency:
-
92.0%~93.5%
-
Size(MM):
-
188 x 60 x 36.5
-
PF:
-
120Vac:0.99 220Vac:0.96
-
THD:
-
10%,20%
-
pk-pk:
-
5%Iomax
-
Output power:
-
200w
More models optional

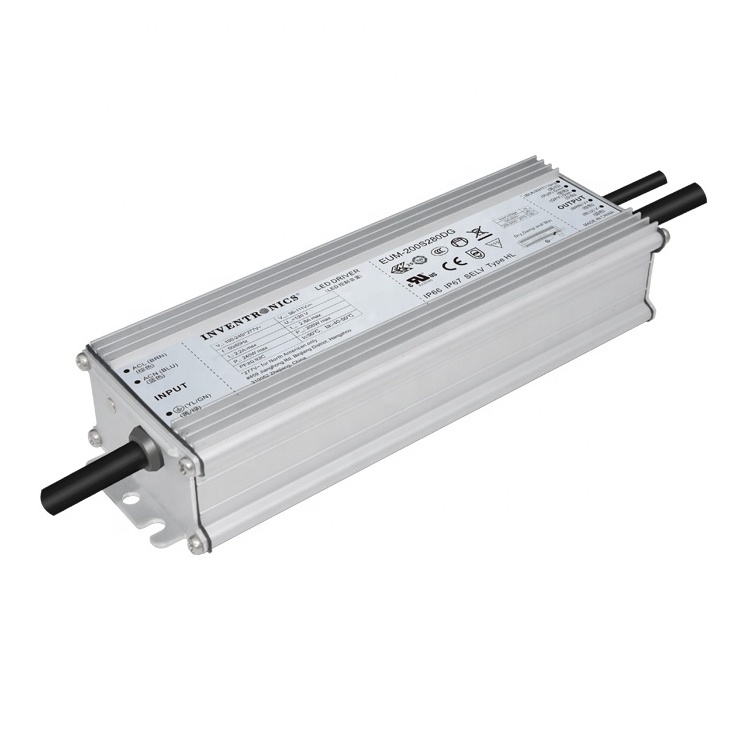

200W 200Watt Inventronics EUM-200 IP67 bis 1050ma 010v pwm dimming led driver 120v
|
Adjustable
Output Current Range |
Full-Power
Current Range (1) |
Default
Output Current |
Input
Voltage Range(2) |
Output
Voltage Range |
Max.
Output Power |
Typical
Efficiency |
Power Factor | Model Number | |
| 120Vac | 220Vac | ||||||||
| 70-1050mA | 700-1050mA | 700mA | 95~286 Vdc | 200W | 93.5% | 0.99 | 0.96 | EUM-200S105DG | |
| 105-1500mA | 1050-1500mA | 1050mA |
90~305 Vac/
127~300 Vdc |
67~190 Vdc | 200W | 93.0% | 0.99 | 0.96 | EUM-200S150DG |
| 180-2800mA | 1800-2800mA | 2100mA |
90~305 Vac/
127~300 Vdc |
36~111 Vdc | 200W | 92.5% | 0.99 | 0.96 | EUM-200S280DG (4) |
| 350-5600mA | 3500-5600mA | 4200mA |
90~305 Vac/
127~300 Vdc |
18 ~ 57 Vdc | 200W | 92.0% | 0.99 | 0.96 | EUM-200S560DG (4) |
