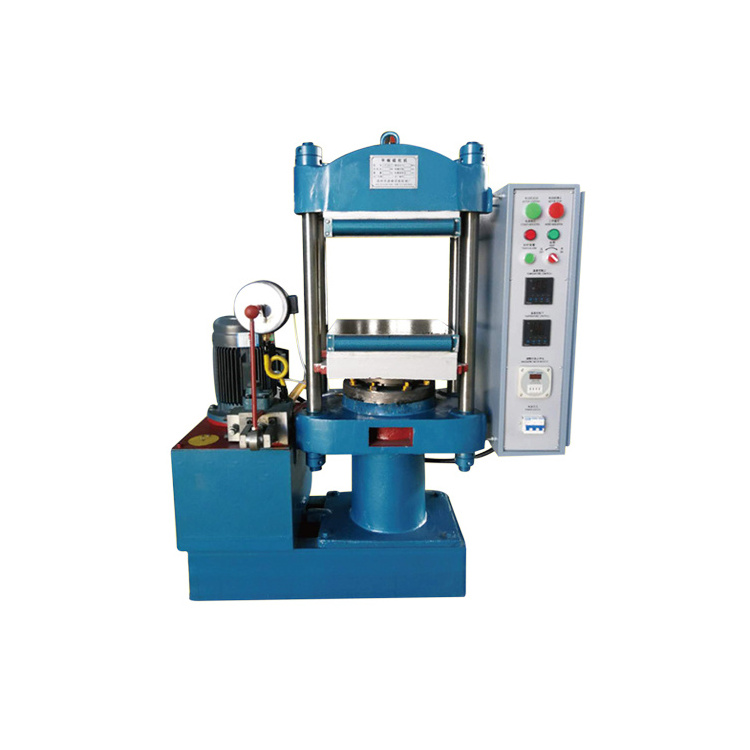

Silicone Mold Flat Vulcanizer O-ring EVA Foam Sheet Yoga Mat Shoe Sole Rubber Tile Vulcanizing Press Machine
Silicone Mold Flat Vulcanizer O-ring EVA Foam Sheet Yoga Mat Shoe Sole Rubber Tile Vulcanizing Press Machine
Silicone Mold Flat Vulcanizer O-ring EVA Foam Sheet Yoga Mat Shoe Sole Rubber Tile Vulcanizing Press Machine
Silicone Mold Flat Vulcanizer O-ring EVA Foam Sheet Yoga Mat Shoe Sole Rubber Tile Vulcanizing Press Machine
Silicone Mold Flat Vulcanizer O-ring EVA Foam Sheet Yoga Mat Shoe Sole Rubber Tile Vulcanizing Press Machine
Silicone Mold Flat Vulcanizer O-ring EVA Foam Sheet Yoga Mat Shoe Sole Rubber Tile Vulcanizing Press Machine
Silicone Mold Flat Vulcanizer O-ring EVA Foam Sheet Yoga Mat Shoe Sole Rubber Tile Vulcanizing Press Machine
Silicone Mold Flat Vulcanizer O-ring EVA Foam Sheet Yoga Mat Shoe Sole Rubber Tile Vulcanizing Press Machine

Silicone Mold Flat Vulcanizer O-ring EVA Foam Sheet Yoga Mat Shoe Sole Rubber Tile Vulcanizing Press Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $3300
≥5 Sets
US $2500
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Dimension(L*W*H):
1230*620*1300
Weight:
700
Power (kW):
2400W
Applicable Industries:
Plastic industry, Rubber industry
Product Name:
25T Flat vulcanizer
Maximum Hydraulic Pressure:
16Mpa
Working Temperature:
0 ℃ to 200 ℃
Heating Method:
Electric heating
Motor:
Three-phase motor
Display and Control:
±1 ℃

Quick Details

Place of Origin:
Fujian, China
Brand Name:
Qunlong
Voltage:
380V
Dimension(L*W*H):
1230*620*1300
Weight:
700
Power (kW):
2400W
Applicable Industries:
Plastic industry, Rubber industry
Product Name:
25T Flat vulcanizer
Maximum Hydraulic Pressure:
16Mpa
Working Temperature:
0 ℃ to 200 ℃
Heating Method:
Electric heating
Motor:
Three-phase motor
Display and Control:
±1 ℃

Silicone Mold Flat Vulcanizer O-ring EVA Foam Sheet Yoga Mat Shoe Sole Rubber Tile Vulcanizing Press Machine

Product Description
Model QLLHY-25T QLLHY-50T QLLHY-100T
Plate Size 350×350mm 400×400mm 450×450mm
Working Layer 1 layer (can be added by 1)
Plate Distance Single layer 75-280mm (optional); Double layer 110mm
Maximum Hydraulic Pressure 16Mpa 16Mpa 16Mpa
Cylinder Diameter 152mm 200mm 285mm or 300mm
Maximum Temperature 200°
Heating Method Electric heating
Motor Three-phase motor
Structure Four-post type
Power(each layer of hot plate) 2400W 2700W 3000W
Weight About 700kg
Voltage 380V
Size 1230*620*1300mm
Special Requirements Customized according to requirements
Standard Accessories host
Optional Heating plate 1 layer, rubber sample preparation mold, plastic sample preparation mold, automatic decompression, plastic products plus water cooling
Prepared by Customer No. 46 Great Wall hydraulic oil 24kg or 16L/two barrels, 6 square or 8 square 3+2=5 core waterproof wire (with grounding)
