Quick Details
-
Weight (KG):
-
600
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DESSION
-
Dimension(L*W*H):
-
640*700*1580
-
Machine type:
-
Automatic Horizontal Pillow Packing Machine
-
Usage:
-
Bag Making
-
Machine material:
-
Stainless Steel 304/Carbon Steel
-
Packing material:
-
Laminated Film
-
Feature:
-
Easy Opperation
-
Main Function:
-
Weighing Forming Filling Sealing
-
Keyword:
-
Automatic Snack Food Sugar Packing
-
Control system:
-
PLC+English Screen
-
Sealing type:
-
Hot Sealing
-
Bag type:
-
Seal Bag
Quick Details
-
Function:
-
FILLING, Wrapping, Sealing
-
Packaging Type:
-
Bags, Pouch
-
Packaging Material:
-
Plastic
-
Weight (KG):
-
600
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DESSION
-
Dimension(L*W*H):
-
640*700*1580
-
Machine type:
-
Automatic Horizontal Pillow Packing Machine
-
Usage:
-
Bag Making
-
Machine material:
-
Stainless Steel 304/Carbon Steel
-
Packing material:
-
Laminated Film
-
Feature:
-
Easy Opperation
-
Main Function:
-
Weighing Forming Filling Sealing
-
Keyword:
-
Automatic Snack Food Sugar Packing
-
Control system:
-
PLC+English Screen
-
Sealing type:
-
Hot Sealing
-
Bag type:
-
Seal Bag

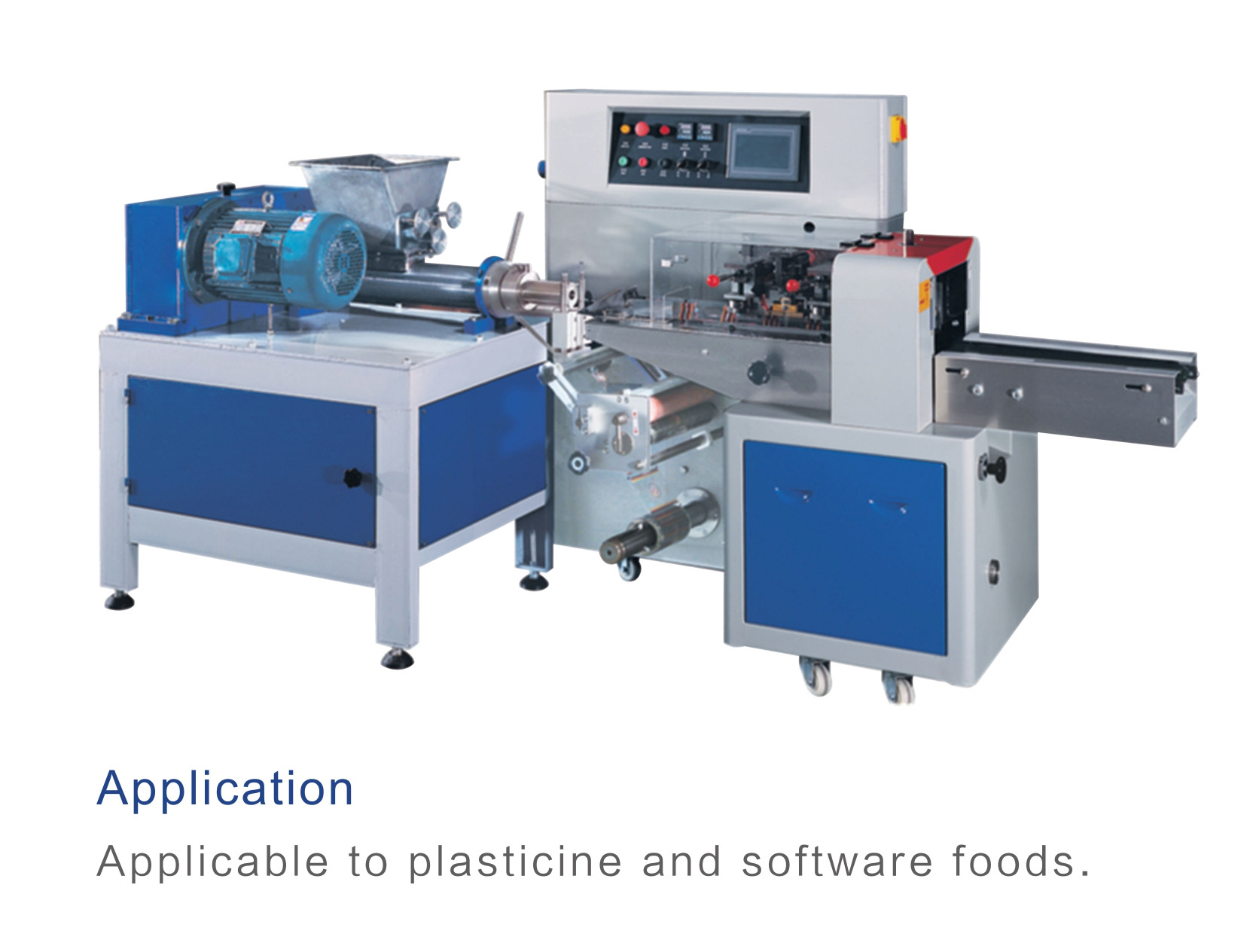

Plasticine Clay Dough Automatic Packing Machine
Products Description
1.Efficient:
Bag-making, filling, sealing, cutting, heating, date / lot number achieved in one time.
2.Intelligent: Packing speed and bag length can be set through the screen without part changes.
3.Profession: Independent temperature controller with heat balance enables different packing materials; Dual inverters controller, upgradable PLC system, self-failure diagnosis, double encoder.
4.Characteristic: Automatic stop function, with safe operation and saving the film.
5.Convenient: Low loss, labor saving, easy for operation and maintenance.
6.Adapability: one set of machine can be applicated to different kind of product via optional devices, such as air-filling device, feeding line, etc.
2.Intelligent: Packing speed and bag length can be set through the screen without part changes.
3.Profession: Independent temperature controller with heat balance enables different packing materials; Dual inverters controller, upgradable PLC system, self-failure diagnosis, double encoder.
4.Characteristic: Automatic stop function, with safe operation and saving the film.
5.Convenient: Low loss, labor saving, easy for operation and maintenance.
6.Adapability: one set of machine can be applicated to different kind of product via optional devices, such as air-filling device, feeding line, etc.
|
Model
|
DS-350Q
|
|
|
|
Packaging Speed
|
40~230 bags/min
|
|
|
|
Bag Width
|
50-160 mm
|
|
|
|
Bag Length
|
90~220mm
Or150~330mm |
|
|
|
Film Roll Width
|
Max.350mm
|
|
|
|
Power
|
220V, 50/60HZ, 2.2KVA
|
|
|
|
Optional Device
|
Date Coder / Air-filling Device / Punching Device
|
|
|
|
Machine Size
|
(L)3920*(W)670*(H)1320mm
|
|
|
Easy Control Touch Screen
SUS304# Conveyor
The whole conveyor is made of 304# stainless steel, qualified for food packaging.
Film Roller &
High Sensitivity Sensor/ Detector
High Sensitivity Sensor/ Detector
The film can be replaced easily on the film roller.
Various films adaptable: OPP/CPP,OPP/CE,MST/PE/PET/PE.
High sensitivity eye spot detector enables the film positioning more accurate and avoid wasting film or destroying product.
Various films adaptable: OPP/CPP,OPP/CE,MST/PE/PET/PE.
High sensitivity eye spot detector enables the film positioning more accurate and avoid wasting film or destroying product.
Bag Former
#304 stainless steel bag former is for shaping the film into a bag.
Different bag width needs different bag former.
Different bag width needs different bag former.
Hot Pressing Middle Sealing Device
Independent PID temperature control, heating the double turntable seal, sealing the back of the packaged product, guaranteed sealing.
Durable Sealing Cutting Blades
