Quick Details
-
Color Temperature(CCT):
-
red
-
Input Voltage(V):
-
2-3V
-
Luminous Intensity:
-
1000mcd
-
Luminous Flux(lm):
-
3-5lm
-
Optical Attenuation(%):
-
5
-
Power Dissipation:
-
0.1
-
Viewing Angle(°):
-
30
-
Operating Temperature(℃):
-
-40 - 80
-
Storage Temperature(℃):
-
-40 - 85
-
Place of Origin:
-
China
-
name:
-

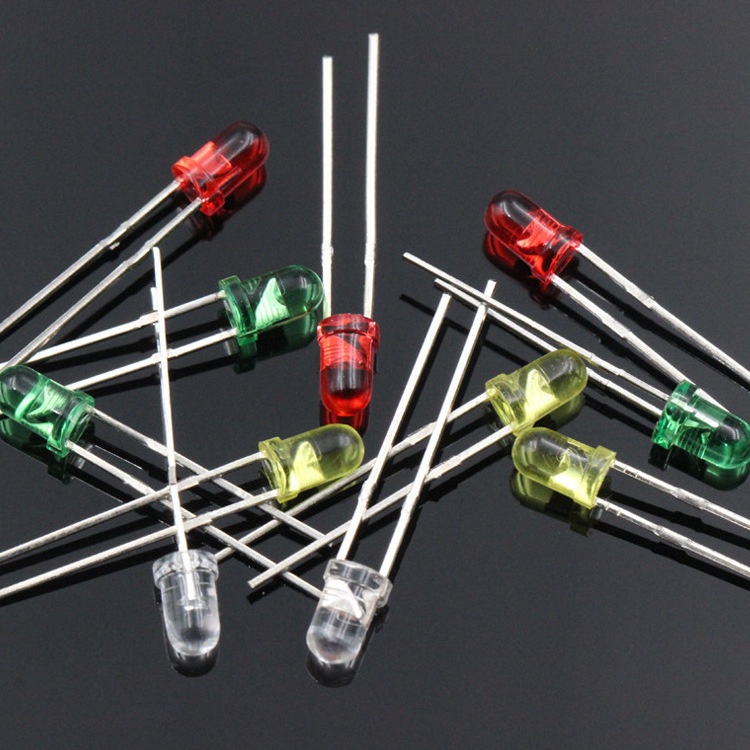

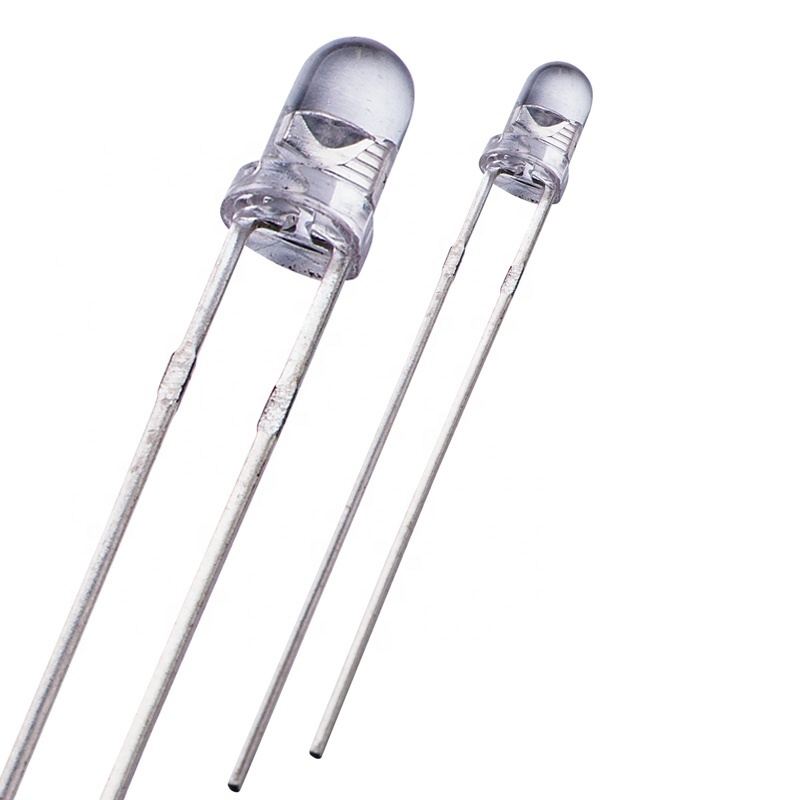

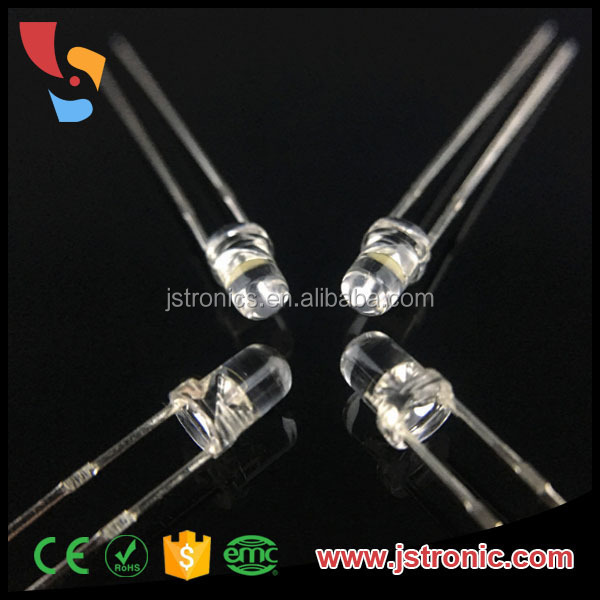

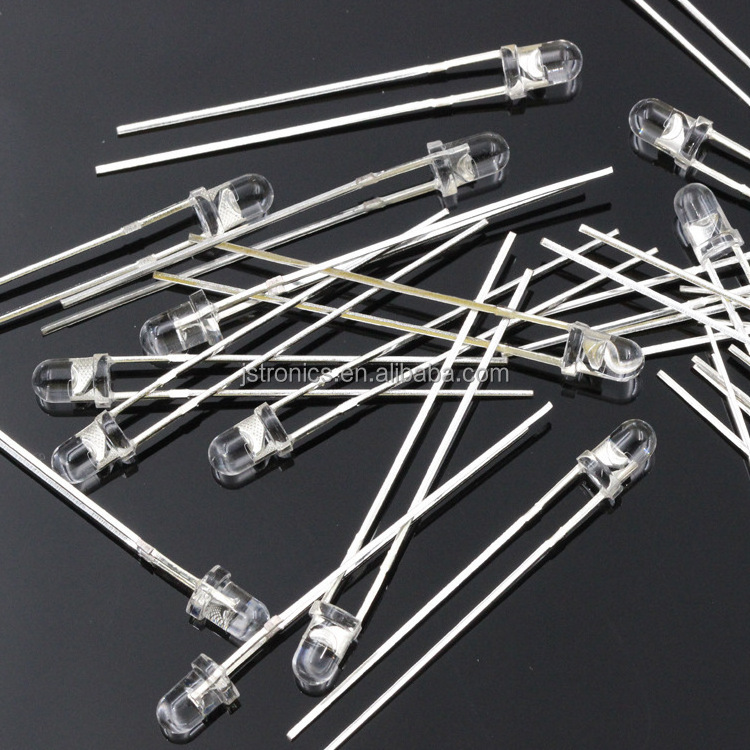

Transparent clear or blue diffused 3v 460-470nm 3mm round led diode
-
brand name:
-
Jstronic
-
light color:
-
Red/yellow/orange/green/blue/white
-
body color:
-
water clear
-
Chip Brand:
-
Sanan,Epistar etc
-
intensity:
-
600-5000mcd
Quick Details
-
Warranty(Year):
-
2-Year
-
Luminous Efficacy(lm/w):
-
3
-
Chip Material:
-
AlGaInP
-
Color Temperature(CCT):
-
red
-
Input Voltage(V):
-
2-3V
-
Luminous Intensity:
-
1000mcd
-
Luminous Flux(lm):
-
3-5lm
-
Optical Attenuation(%):
-
5
-
Power Dissipation:
-
0.1
-
Viewing Angle(°):
-
30
-
Operating Temperature(℃):
-
-40 - 80
-
Storage Temperature(℃):
-
-40 - 85
-
Place of Origin:
-
China
-
name:
-
Transparent clear or blue diffused 3v 460-470nm 3mm round led diode
-
brand name:
-
Jstronic
-
light color:
-
Red/yellow/orange/green/blue/white
-
body color:
-
water clear
-
Chip Brand:
-
Sanan,Epistar etc
-
intensity:
-
600-5000mcd
Product Description
Specification
|
Brand Name
|
JSTORNICE
|
|
Type
|

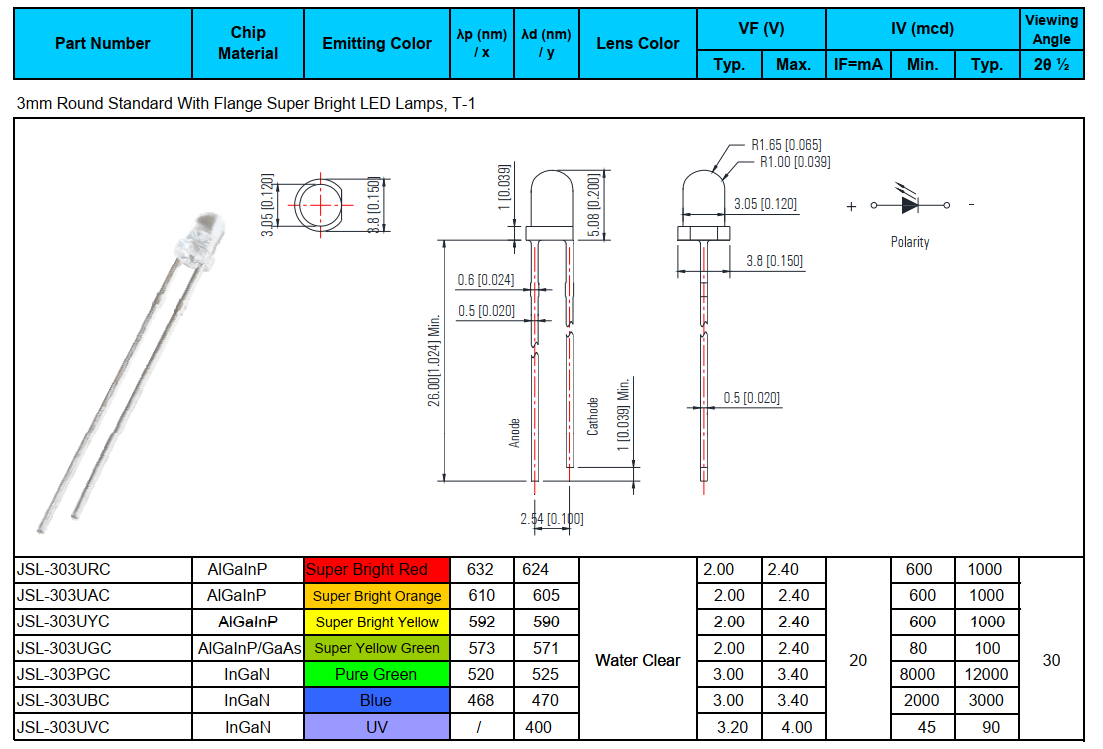

3mm Round With Flange Type LED Lamps
|
|
Luminescent Colors
|
Red/Yellow/Blue/Green/White
|
|
Voltage
|
R/Y2.0-2.2V B/G/W 3.0-3.2V
|
|
Forward Current
|
20mA
|
|
Angle
|
30deg 60deg
|
|
Packing
|
1000PCS/bag
|
LED DIODES
1. We provide 3mm LED, 4.8mm LED, 5mm LED, 8mm LED, 10mm LED, Flux LED.
2.Chip material: InGaN. AlGaIn
3. Emitting color: White, Red, Yellow, Pure Green, yellow green ,Blue, Amber, Orange.
4.Lens color: Water clear, color transparent, color diffused, white diffused
5. Available Wavelength: 470nm, 525nm, 585nm, 610nm, 630nm, 640nm(Tolerance of measurement of peak Wavelength 5.0nm)
6.Available Temperature color: 3300K, 6500K,7000~8000K
7.Application: Lighting, Upholster, Project Building, Display, Traffic Light, etc.
8. Available Angle: 20 degree, 30degree, 40degree, 45degree, 70degree, 110degree
9.Superior performance in outdoor/indoor environment
10.The sample delivery time: Within 3-5days; The order delivery time: Within 7~15days upon payment done
Dominant Wavelength
Red: 640nm to 645nm
Hight bright red: 620nm to 625nm
Blue: 460nm to 475nm
Pure green: 515nm to 525nm
Yellow: 585nm to 595NM
Amber: 600nm to 605nm
Forwarder Voltage:
Red / Yellow / Yellow Green: 1.8-2.1V
Blue / Pure Green / White: 3.0~3.6V
1. We provide 3mm LED, 4.8mm LED, 5mm LED, 8mm LED, 10mm LED, Flux LED.
2.Chip material: InGaN. AlGaIn
3. Emitting color: White, Red, Yellow, Pure Green, yellow green ,Blue, Amber, Orange.
4.Lens color: Water clear, color transparent, color diffused, white diffused
5. Available Wavelength: 470nm, 525nm, 585nm, 610nm, 630nm, 640nm(Tolerance of measurement of peak Wavelength 5.0nm)
6.Available Temperature color: 3300K, 6500K,7000~8000K
7.Application: Lighting, Upholster, Project Building, Display, Traffic Light, etc.
8. Available Angle: 20 degree, 30degree, 40degree, 45degree, 70degree, 110degree
9.Superior performance in outdoor/indoor environment
10.The sample delivery time: Within 3-5days; The order delivery time: Within 7~15days upon payment done
Dominant Wavelength
Red: 640nm to 645nm
Hight bright red: 620nm to 625nm
Blue: 460nm to 475nm
Pure green: 515nm to 525nm
Yellow: 585nm to 595NM
Amber: 600nm to 605nm
Forwarder Voltage:
Red / Yellow / Yellow Green: 1.8-2.1V
Blue / Pure Green / White: 3.0~3.6V
