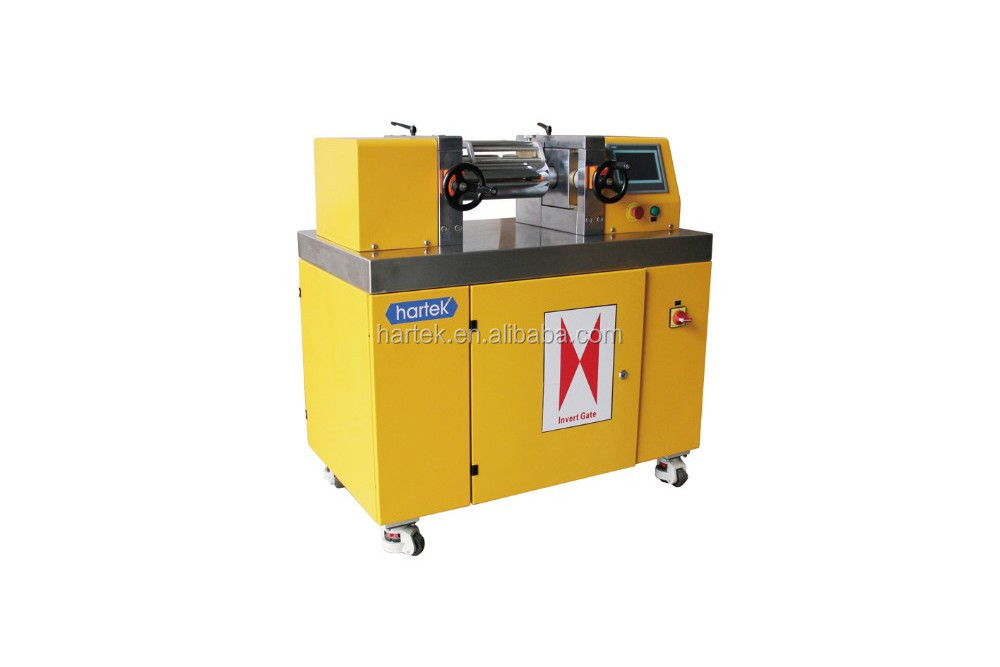

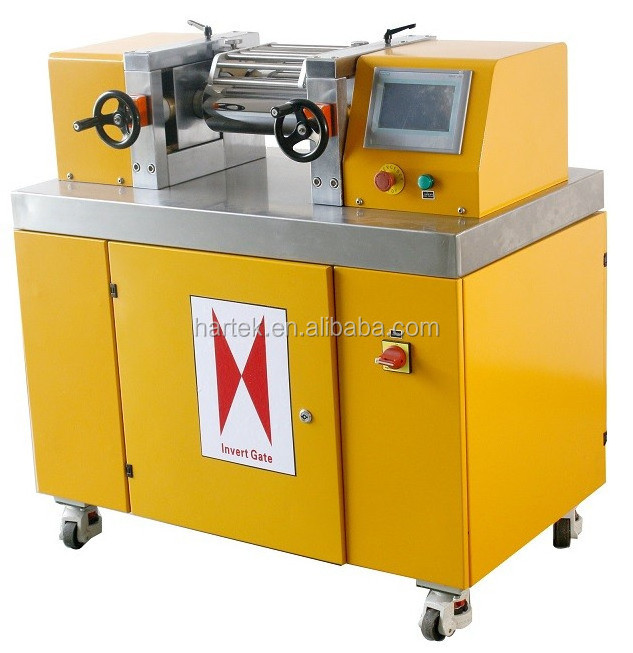

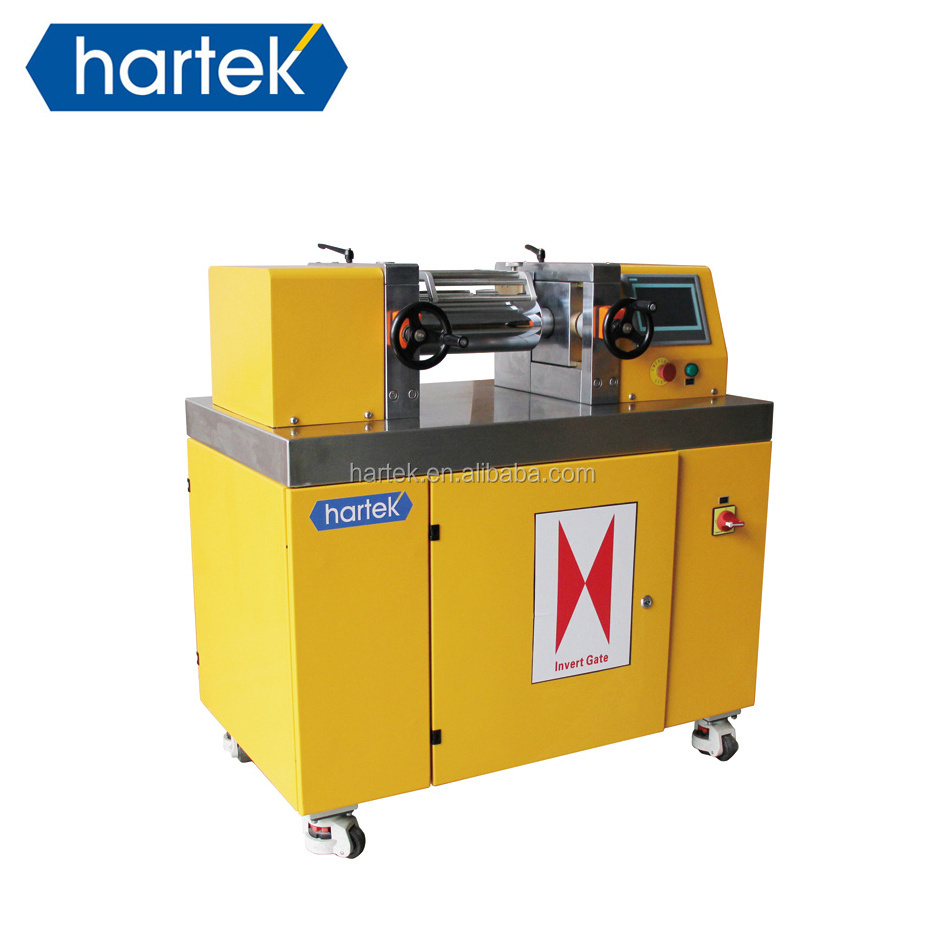

Laboratory Two Roll Mill for Compounding Rubber

Applicable materials

PP, PE, PVC, rubber, etc.

Mixing volume

kg/batch

0.2-0.5

Sheet thickness

mm

0.2-2

Sheet width

mm

0-250

Roller diameter

mm

120

Roller width

mm

300

Number of roller

2

Gap between two roller

mm

0-5, adjustable

Accuracy of gap

mm

0.01

Max. working temperature

℃

350

Temperature control accuracy

℃

+/- 2

Motor power

KW

3.75

Working voltage

350V/50Hz/3 phases or Customerized

Control method

SIEMENS TFT touching screen PLC control

Packaging

1110mmx650mmx1130mm

300kg

For overseas transportation, the package for bulk goods is fumigation-free plywood box. For container goods, we will use PE film to wrap the equipment or according to customers special request.
