Quick Details
-
Ejector Force(kN):
-
13 kN
-
Theoretical Shot Volume(cm³):
-
156 cm³
-
Injection Rate (g/s):
-
113 g/s
-
Injection Weight (g):
-
141 g
-
Screw Speed (rpm):
-
1 - 200 rpm
-
Screw diameter (mm):
-
40 mm
-
Screw L/D Ratio:
-
23
-
Distance between Tie Bars:
-
510mm
-
Weight (KG):
-
2300 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
400 mm
-
Model Number:
-
JTT-550R
-
Brand Name:
-
JINTONG
-
Power (kW):
-
12.8 kW
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Video technical support
-
product name:
-
55T rotary table injection molding machine
-
applicable area:
-

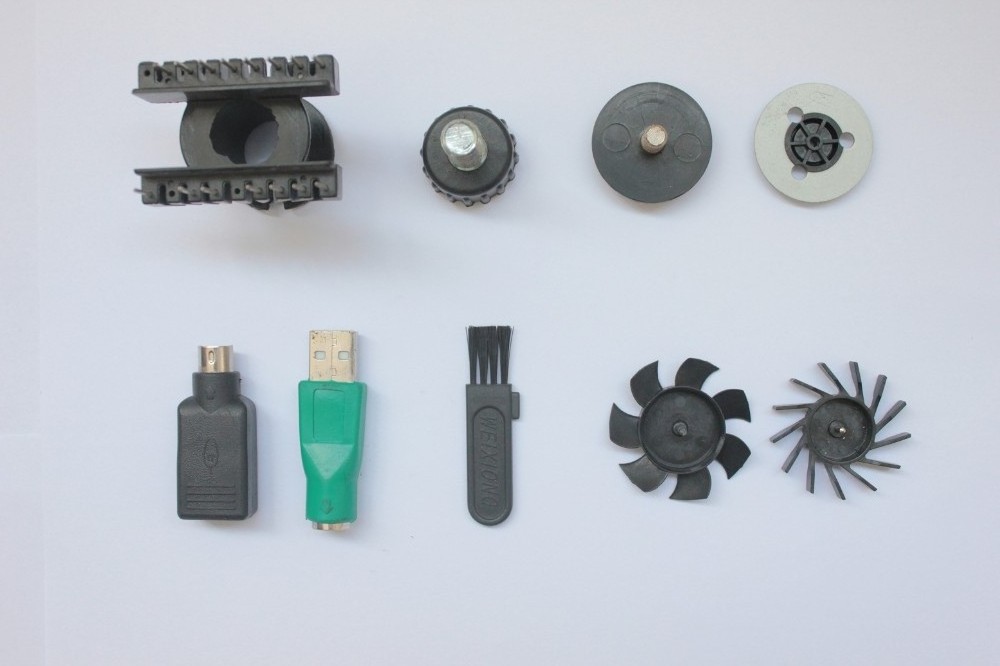

electrical spare parts
Quick Details
-
Plasticizing Capacity(g/s):
-
100
-
Mold Height(mm):
-
110 - 400 mm
-
Ejector Stroke(mm):
-
45 mm
-
Ejector Force(kN):
-
13 kN
-
Theoretical Shot Volume(cm³):
-
156 cm³
-
Injection Rate (g/s):
-
113 g/s
-
Injection Weight (g):
-
141 g
-
Screw Speed (rpm):
-
1 - 200 rpm
-
Screw diameter (mm):
-
40 mm
-
Screw L/D Ratio:
-
23
-
Distance between Tie Bars:
-
510mm
-
Weight (KG):
-
2300 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
400 mm
-
Model Number:
-
JTT-550R
-
Brand Name:
-
JINTONG
-
Power (kW):
-
12.8 kW
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Video technical support
-
product name:
-
55T rotary table injection molding machine
-
applicable area:
-
electrical spare parts
Product Description

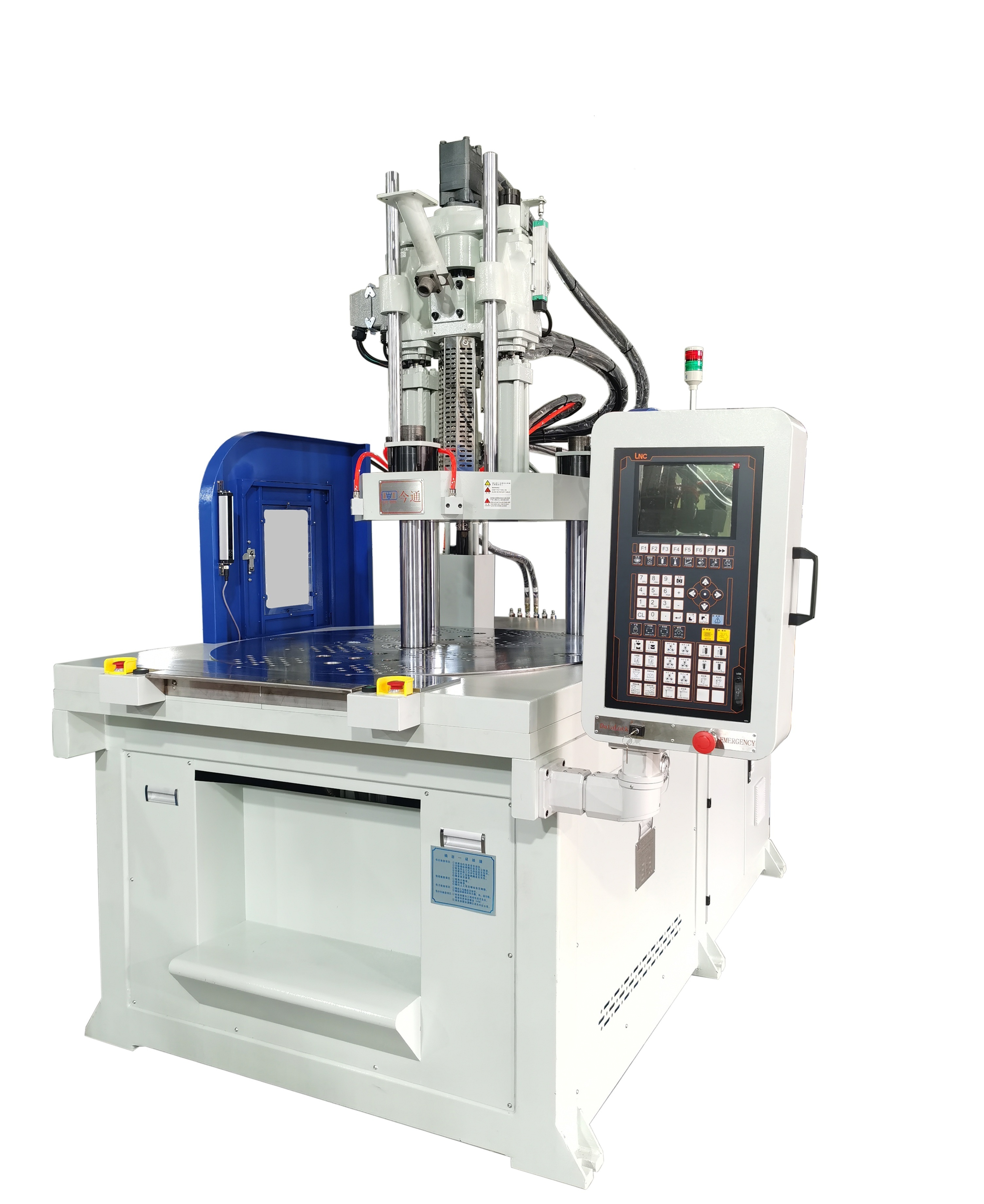

Vertical rotary injection molding machine JTT-550R in Guangdong factory
Clamping Force: 55T
Injection Weight: 80-141g
Vertical clamping, vertical injection
Easy to set torque , speed, deceleration distance and stand number segmentation
Computer programme control rotary table direction , forward-rotating, reverse-rotating, forward and reverse alternative rotating.
Optional energy-saving motor
|
|
Model
|
|
JTT-550R
|
|
Injection system
|
Screw Diameter
|
mm
|
40
|
|
|
Injection Pressure
|
kg/cm2
|
1260
|
|
|
Theoretical Shot Volume
|
cm3
|
170
|
|
|
Injection Rate
|
cm3/sec
|
113
|
|
|
Screw Stroke
|
mm
|
140
|
|
|
Screw Speed
|
rpm
|
150
|
|
|
Heating Capacity
|
kw
|
5.3
|
|
Clamping system
|
Clamping Force
|
tons
|
55
|
|
|
Opening Force
|
tons
|
8.9
|
|
|
Min Mold Height
|
mm
|
200
|
|
|
Opening Stroke
|
mm
|
200
|
|
|
Max Open Daylight
|
mm
|
400
|
|
|

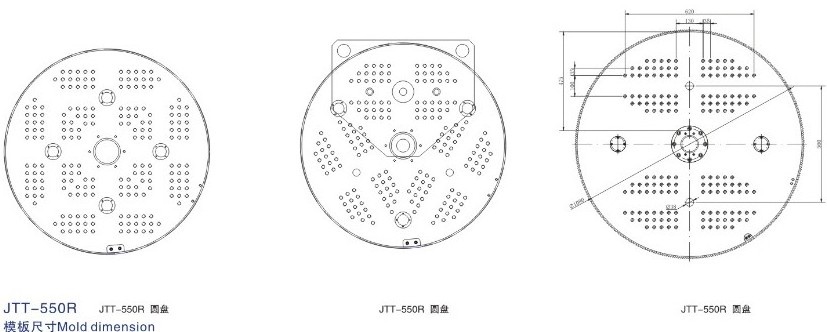

Mold Dimension
|
mm
|
370*450
|
|
|
Rotary Table Diameter
|
|
1080
|
|
|
Ejector Force
|
tons
|
1.8
|
|
|
Ejector Stroke
|
mm
|
60
|
|
Other
|
Motor Power
|
kw
|
7.5
|
|
|
Sliding Table Stroke
|
mm
|
—
|
|
|
Machine Dimension
|
m
|
2.6*1.8*2.85
|
|
|
Machine Weight
|
tons
|
3
|
