Quick Details
-
Brand Name:
-
YUYE
-
Model Number:
-
YEQ1-63N
-
Max. Current:
-
63A
-
Certificate:
-
CCC.CE.ISO
-
Rated working voltage:
-
220V/50HZ
-
Transfer delay time:
-
0.5s
-
Use:
-
City power to City power
-
Product name:
-

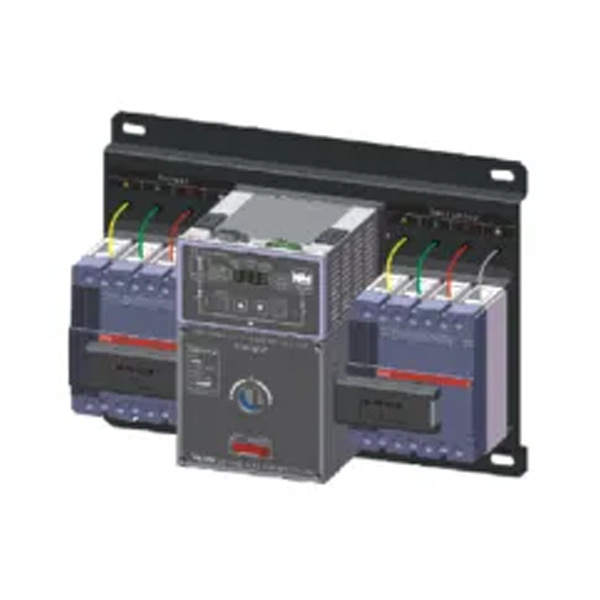

Automatic Transfer Switch
-
Type:
-
Manual
-
Rated current:
-
6A-63A
-
Application:
-
Industrial
-
Rated voltage:
-
240/415V AC
-
Color:
-
Black
-
Certification:
-
CCC
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUYE
-
Model Number:
-
YEQ1-63N
-
Max. Current:
-
63A
-
Certificate:
-
CCC.CE.ISO
-
Rated working voltage:
-
220V/50HZ
-
Transfer delay time:
-
0.5s
-
Use:
-
City power to City power
-
Product name:
-
Automatic Transfer Switch
-
Type:
-
Manual
-
Rated current:
-
6A-63A
-
Application:
-
Industrial
-
Rated voltage:
-
240/415V AC
-
Color:
-
Black
-
Certification:
-
CCC
Our advantage
Product Description
| Pole | Rated Current In(A)AC | Frequency(Hz) | Control Voltage(V) | Transfer time | Mechanical life(times) | |
| 3P | 380V | 50/60 | 220V | 1.5~3s | 10000 | |
| 4P |
Working Principle
When common source is nomal, the function key is at position"auto",reserve breaker is open and common breaker is colsed to protect common source for connecting with load, the common power voltage indicator is light. When the common source failure(the voltage is lower than 60% of rated voltage). The common source will transfer to reserve source automatically, the reserved source voltage indicator is ON.the reserved source working indicator is ON, After removing the failure of the common source, this switch will transfer to the common source automatically again.
YEQ1 Series ATS Wiring Diagram
Note: Use correcrt wire size for input ekecrric connector of 2 units MCB well. Putting into the line-phase sequence to be unanimous. Three phase MCB add the netural to be used to switch nuetral N as well.
- Whether main power or backup power with voltage or not, all can be by manual mode operated. Under manual, put the auto-manuakl button to manual position, pull the handle by clockwise to end. Backup power implementation circuit breaker Qr is OFF, implementation of MAIN power supply circuit breaker Qn ONg: When pull handle counterclockwise to the end, the implementation of Backup power source Qr is ON, implementation of MAIN power supply circuit breaker Qn is OFF.
- Set the auto position, if the MAIN power is nomally. ATS will transfer to MAIN power working, The MAIN POWER indiacation will bright on panel: If the MAIN power is unusually, ATS will transfer to Backup Power working, The Backup indication will be bright on the panel.
- ATS has 1A of two units fuses and a electric onnector, fuse as short-circuit protection in automatic controller. Electric connecto as dry contact in Indication light to panel of controller box, voltage of 220V AC, 150mA, the detail please reference to instrution.
- When ATS under automatic control state, the POWER condition wa changed,but the operation mechanism no action. Such as MCB cann't closed-transition or open-transition then should be checked:
- 1. Whether the power grid and failured;
- 2. Whether the wiring shedding;
- 3. The fuse itself whether burning, If the front poiny of one circuit breaker with electricity, and the connection are bprth wiring well, fuse are intact, but yet can not closed-transition. You should be asked to professionals or contact manufactory.
- When user place the order need to notice the identifying device models, specifications, dispensed breaker models, specifications, pole number. Such as: Automatic transfer switch device, Self-input and Self-recovertype, rated current of 50A, 4 pole, which is written YEQ1-63L/4P(50A)
- For users special requirements, please contact with factories and to explain well in orders indicates.
