Quick Details
-
Raw Material::
-
Q235 steel
-
Pressure::
-
Minimum passage of 80 ton container trucks
-
Power Supply:
-
AC380V
-
System power output:
-
2.2KW
-
Rising time::
-
≤3S (adjustable)
-
Fall time::
-
≤3S (adjustable)
-
Operating temperature::
-
-25 ° c ~70 ° c (as appropriate)
-
Storage environment::
-
0 ° c ~45 ° c
-
Certificate:
-
CE Approved
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Anxia
-
Product name:
-
Driveway Blockers
-
Raw Material::
-
Q235 steel
-
Pressure::
-
Minimum passage of 80 ton container trucks
-
Power Supply:
-
AC380V
-
System power output:
-
2.2KW
-
Rising time::
-
≤3S (adjustable)
-
Fall time::
-
≤3S (adjustable)
-
Operating temperature::
-
-25 ° c ~70 ° c (as appropriate)
-
Storage environment::
-
0 ° c ~45 ° c
-
Certificate:
-
CE Approved
Product Description
High security anti-ramming barrier PSA 68 hydraulic driveway blocker
High security anti-ramming barrier technical parameters:
Overall material: Q235 steel plate
Back wall thickness: 20mm (customizable 20-30mm)
Equipment length (intercept width):5000mm (actual length 4730mm)
Equipment width: 1080mm
Equipment height: 800mm
Intercepting height: 600mm (lift angle is not more than 45°)
Lifting force: 5T
Carrying weight: 80T
Anti-collision capacity: 10T truck, speed 80km cannot pass
Passage pressure: can pass more than 100 tons of container trucks
Movement form: hydraulic drive
Fixing standard: black yellow, red yellow, other colors can be customized
Working environment: -50 °C ~ +75 °C, automatic constant temperature system
Lift control: line control / remote control / linkage, power failure emergency drop pressure control
Control distance: Wireless control (accessible) 50 meters, line control 100 meters
Up/downtime : rises 2-3 seconds, drops 2-3 seconds) adjustable
Power system voltage: 220V /380V 50Hz
Control system voltage: 24V
Output power: 3.75KW
Protection level: IP68
Overall material: Q235 steel plate
Back wall thickness: 20mm (customizable 20-30mm)
Equipment length (intercept width):5000mm (actual length 4730mm)
Equipment width: 1080mm
Equipment height: 800mm
Intercepting height: 600mm (lift angle is not more than 45°)
Lifting force: 5T
Carrying weight: 80T
Anti-collision capacity: 10T truck, speed 80km cannot pass
Passage pressure: can pass more than 100 tons of container trucks
Movement form: hydraulic drive
Fixing standard: black yellow, red yellow, other colors can be customized
Working environment: -50 °C ~ +75 °C, automatic constant temperature system
Lift control: line control / remote control / linkage, power failure emergency drop pressure control
Control distance: Wireless control (accessible) 50 meters, line control 100 meters
Up/downtime : rises 2-3 seconds, drops 2-3 seconds) adjustable
Power system voltage: 220V /380V 50Hz
Control system voltage: 24V
Output power: 3.75KW
Protection level: IP68

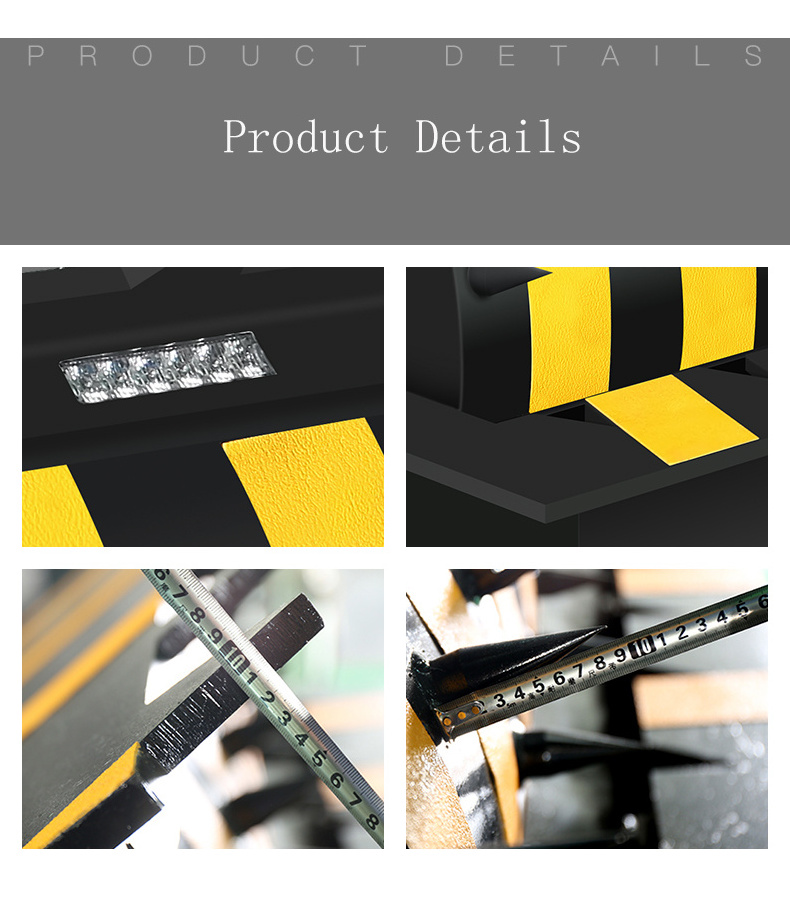

Detailed Images
