Quick Details
-
Model Number:
-
DSN5025
-
Application:
-
Heat dissipation, Heat Dissipation
-
Product name:
-

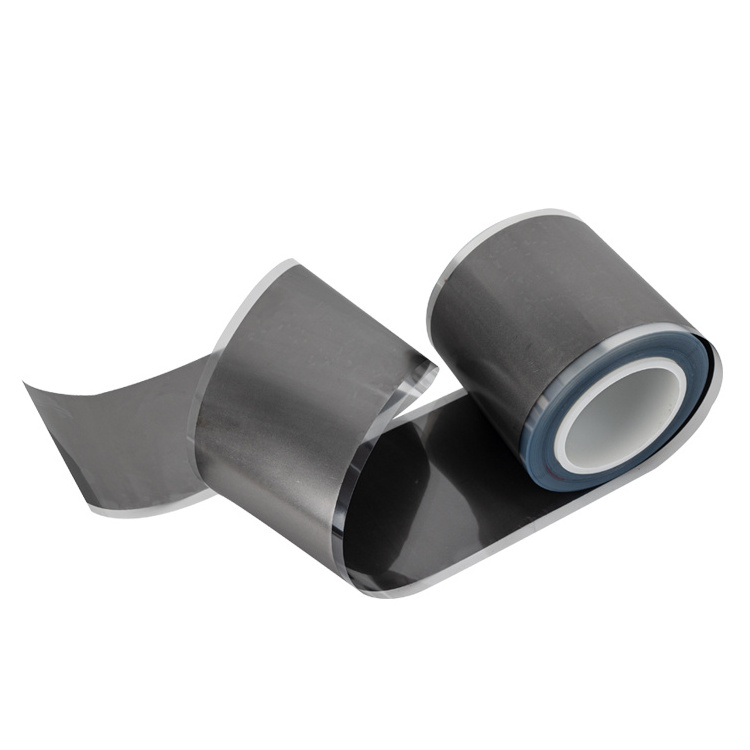

high pure graphite grafoil sheet
-
Material:
-
High pure graphite
-
Thickness:
-
25um
-
Thermal conductivity (X-Y-axis):
-
1500~1700w/mk
-
Density:
-
>2.0g/cm3
-
Color:
-
Black Gray
-
Shape:
-
Shape Requested
-
Size:
-
Size Requested
Quick Details
-
C Content (%):
-
99.9%
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
DSN
-
Model Number:
-
DSN5025
-
Application:
-
Heat dissipation, Heat Dissipation
-
Product name:
-
high pure graphite grafoil sheet
-
Material:
-
High pure graphite
-
Thickness:
-
25um
-
Thermal conductivity (X-Y-axis):
-
1500~1700w/mk
-
Density:
-
>2.0g/cm3
-
Color:
-
Black Gray
-
Shape:
-
Shape Requested
-
Size:
-
Size Requested
Product Description
|
Product Name
|
Synthetic graphite sheet
|
|
Material
|
99.99% carbon
|
|
Function
|
Heat dissipation
|
|
Package
|
According to customer requirements
|
pyrolytic graphite sheets
synthetic graphite shee
t
, also called
artificial graphite sheet
,
is a new film material made of Polyimide by sintering.
Synthetic graphite
sheet is available with an adhesive backing on one side, which can significantly improve the thermal resistance. A wide range of die-cut shapes & components are manufactured to customer specifications on request.
|
Thickness
|
|
DSN5012
|
DSN50
17
|
DSN50
25
|
DSN50
32
|
DSN50
40
|
|
|
|
|
0.012±0.003mm
|
0.017±0.003mm
|
0.025±0.003mm
|
0.032±0.004mm
|
0.04±0.005mm
|
|
|
Thermal
conductivity |
X-Y axis (w/m.k)
|
1700~1900
|
1500~1700
|
1400~1600
|
1300~1500
|
1200~1400
|
|
|
|
Z axis
(w/m.k) |
10~15
|
15~18
|
16~19
|
17~20
|
18~20
|
|
|
In-plane Thermal Diffusivity(mm²/s)
|
|
980~1040
|
840~950
|
800~920
|
800~920
|
760~890
|
|
|
Density (g/cm³)
|
|
2.1±0.05
|
2.05±0.05
|
2±0.05
|
1.85±0.05
|
1.8±0.05
|
|
|
Heat capacity (J/g/K)
|
|
0.87±0.01
|
0.87±0.01
|
0.87±0.01
|
0.87±0.01
|
0.87±0.01
|
|
|
Operation temperature (℃)
|
|
-40~400
|
-40~400
|
-40~400
|
-40~400
|
-40~400
|
|
|
Bending (angle180, R5)
|
|
20000
|
20000
|
20000
|
20000
|
20000
|
|
|
Thickness
|
|
DSN5050
|
DSN5070
|
DSN5100
|
DSN5150
|
DSN5200
|
|
|
|
|
0.05±0.005mm
|
0.07±0.007mm
|
0.1±0.01mm
|
0.15±0.015mm
|
0.2±0.02mm
|
|
|
Thermal
conductivity |
X-Y axis (w/m.k)
|
1100~1300
|
1100~1300
|
630~780
|
600~800
|
500~700
|
|
|
|
Z axis
(w/m.k) |
18~21
|
18~21
|
18~21
|
18~21
|
18~21
|
|
|
In-plane Thermal Diffusivity(mm²/s)
|
|
740~870
|
700~830
|
600~750
|
630~840
|
580~810
|
|
|
Density (g/cm³)
|
|
1.7±0.05
|
1.8±0.05
|
1.2±0.05
|
1.1±0.05
|
1±0.05
|
|
|
Heat capacity (J/g/K )
|
|
0.87±0.01
|
0.87±0.01
|
0.87±0.01
|
0.87±0.01
|
0.87±0.01
|
|
|
Operation temperature (℃)
|
|
-40~400
|
-40~400
|
-40~400
|
-40~400
|
-40~400
|
|
|
Bending (angle180, R5)
|
|
20000
|
20000
|
20000
|
20000
|
20000
|
|
Details Images
Adhesive thermal graphite sheet has
Excellent thermal conductivity: up to 1950 W/m•K (2 to 5 times as high as copper, 3 to 8 time as high as aluminum)
High precision measurement standard during processing period
Flexible and easy to be cut. (Withstands repeated bending)
Higher thermal conductivity than copper material
Product Usage
Synthetic graphite sheet
can be applied on Smartphone
Pyrolytic Graphite Sheet (PGS) can deliver the heat, which is generated by the CPU/Flash chip on Cell Phones’ mainboard PCB, evenly to the Cellddle metal steel bracket and framework. Meanwhile the heat from the high heat-making CPU chip can be spread throughout the plane of graphite sheet rapidly. The part hot spots are eliCellnated and the chip can be kept in appropriate temperature range to get the high performance.
Synthetic graphite sheet
can be applied on Computer
The thermal and electrical properties of graphite sheet have very significant anisotropic properties. The diaphragm structure prepared by special process can obtain XY plane up to 1800W/MK thermal conductivity, Z-axis vertical thermal conductivity 20-30W/MK, which is common copper aluminum foil. 4-6 times, for notebooks, tablets and other products that require strict design space, the heat dissipation problem is the core.
Other
Applications
Packaging & Shipping
Synthetic graphite foil sheet Packaging:
1. PET film covered--protection
2. Use paper card to separate each layer.
3. Standard export carton or customized.
4. Marked with customer's information or customized.
5. QC Department will check in case the packing method isn't safe enough.
Synthetic graphite sheet
Shipping:
1. By courier, like DHL, UPS, FEDEX, etc. It is door to door, usually it takes 3-5 days to arrive at destination.
2. By air to the airport, usually 5-7 days.
3. By shipping, usually, it will spend 15-30 days to arrive at customer factory.
2. By air to the airport, usually 5-7 days.
3. By shipping, usually, it will spend 15-30 days to arrive at customer factory.
Company Introduction
DASEN is a high-tech enterprise engaged in R&D, production and sales of pyrolytic graphite, specialties graphite, die-cutting, silicone pad and plate ceramic membranes. The pyrolytic graphite factory is in Jiangxi; the specialties graphite is in Shandong; the silicone pad factory is in Jiangsu, and the ceramic membrane factory is in Anhui province. And the sales center is in Suzhou, Jiangsu.
Dasen Culture
Enterprise mission:
cultivate talents and make dedication
Business idea:
people-oriented, customer first, continuous creation, pursuit excellence.
Environmental policy:
full participation, compliance with laws and regulations, treasure resources.
Certifications
DSN adopt international authoritative quality system certification and safety system certification to ensure the quality and safety of customers. Such as:
ISO9001-2015, ISO14001-2015, IATF16949-2016, UL: QMFZ8.E490087, and many product patents.
