M2-I Electric Plastic Injection Machine Desktop Injection Molding Machine Mini injection for Spoon PP PC PE ABS
M2-I Electric Plastic Injection Machine Desktop Injection Molding Machine Mini injection for Spoon PP PC PE ABS
M2-I Electric Plastic Injection Machine Desktop Injection Molding Machine Mini injection for Spoon PP PC PE ABS
M2-I Electric Plastic Injection Machine Desktop Injection Molding Machine Mini injection for Spoon PP PC PE ABS
M2-I Electric Plastic Injection Machine Desktop Injection Molding Machine Mini injection for Spoon PP PC PE ABS
M2-I Electric Plastic Injection Machine Desktop Injection Molding Machine Mini injection for Spoon PP PC PE ABS
M2-I Electric Plastic Injection Machine Desktop Injection Molding Machine Mini injection for Spoon PP PC PE ABS
M2-I Electric Plastic Injection Machine Desktop Injection Molding Machine Mini injection for Spoon PP PC PE ABS

M2-I Electric Plastic Injection Machine Desktop Injection Molding Machine Mini injection for Spoon PP PC PE ABS

FOB Reference Price: Get Latest Price
≥1 Pieces
US $7500
≥4 Pieces
US $7000
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Mold Height(mm):
75 - 135 mm
Ejector Stroke(mm):
80 mm
Ejector Force(kN):
50 kN
Theoretical Shot Volume(cm³):
25 cm³
Injection Rate (g/s):
20 g/s
Injection Weight (g):
20 g
Screw Speed (rpm):
1 - 250 rpm
Screw diameter (mm):
16 mm
Screw L/D Ratio:
19.8
Distance between Tie Bars:
200*130
Weight (KG):
120 kg
Place of Origin:
Guangdong, China
Open Stroke(mm):
60 mm
Model Number:
M2-I
Brand Name:
BORX
Power (kW):
2 kW
Plastic Machinery Type:
All-electric injection molding machine
Keyword:
Mini Injection Molding Machine
Machine dimensions:
850X430X500mm(Desktop)
Clamping force:
5T
Power:
220V/110V
Touch Screen:
7 inch
Glue injection method:
High-speed extrusion type
Maximum injection pressure:
600kg(60Mpa)
Maximum heating temperature:
300℃
Heating segments:
4 segments (3 segments of barrel + 1 segment of mold temperature)

Quick Details

Distance between Tie Bars(Width)(mm):
16mm
Distance between Tie Bars(Height)(mm):
10mm
Plasticizing Capacity(g/s):
20
Mold Height(mm):
75 - 135 mm
Ejector Stroke(mm):
80 mm
Ejector Force(kN):
50 kN
Theoretical Shot Volume(cm³):
25 cm³
Injection Rate (g/s):
20 g/s
Injection Weight (g):
20 g
Screw Speed (rpm):
1 - 250 rpm
Screw diameter (mm):
16 mm
Screw L/D Ratio:
19.8
Distance between Tie Bars:
200*130
Weight (KG):
120 kg
Place of Origin:
Guangdong, China
Open Stroke(mm):
60 mm
Model Number:
M2-I
Brand Name:
BORX
Power (kW):
2 kW
Plastic Machinery Type:
All-electric injection molding machine
Keyword:
Mini Injection Molding Machine
Machine dimensions:
850X430X500mm(Desktop)
Clamping force:
5T
Power:
220V/110V
Touch Screen:
7 inch
Glue injection method:
High-speed extrusion type
Maximum injection pressure:
600kg(60Mpa)
Maximum heating temperature:
300℃
Heating segments:
4 segments (3 segments of barrel + 1 segment of mold temperature)
Product Overview

M2-I Electric Plastic Injection Machine Desktop Injection Molding Machine Mini injection for Spoon PP PC PE ABS


Product Description

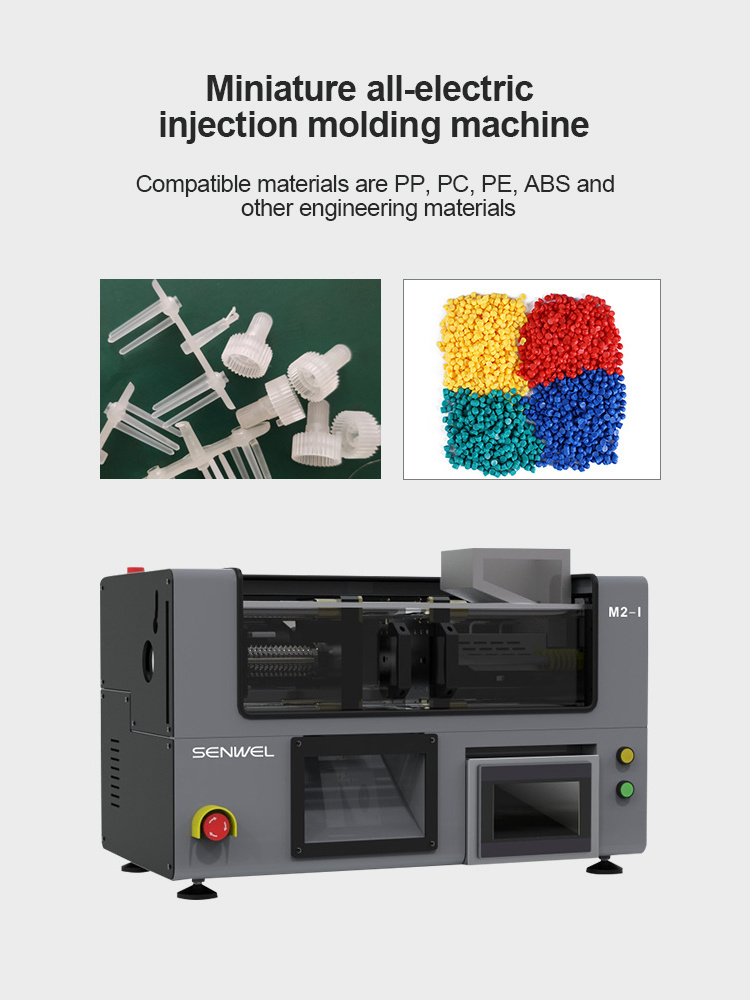

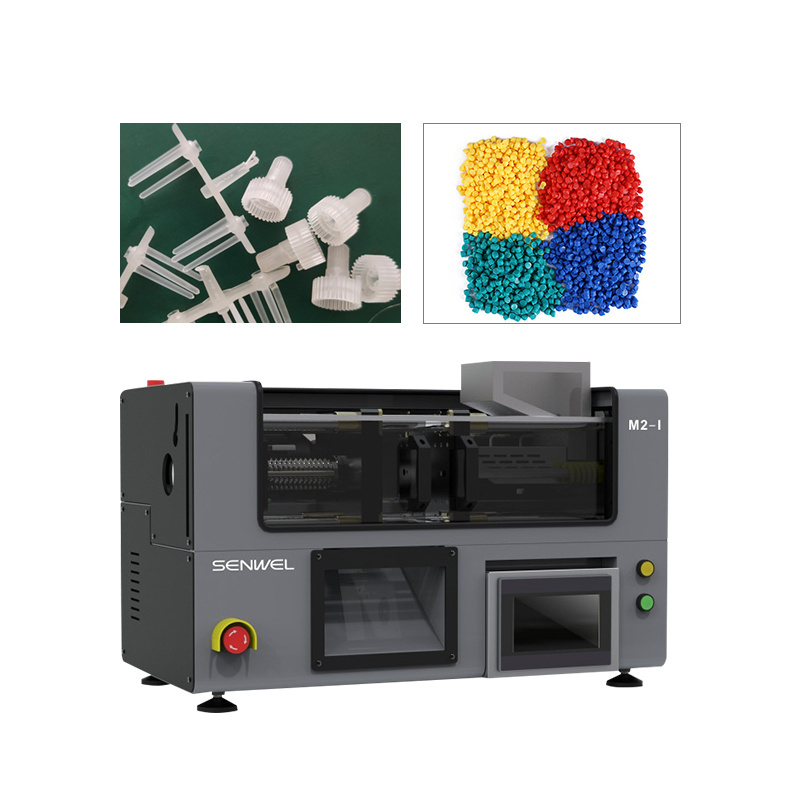

1. M2-I miniature all-electric injection molding machine is a special machine

2. M2-I miniature all-electric injection molding machine is suitable for PP, PC, PE, ABS and other engineering materials.

Note: The machine is a customized product and it takes 1 month to complete. Refunds are refused after the product is ordered,
please order customers to be aware! ! !
PRODUCT SPECIFICATIONS
No
Item
Data
1
Plastic Machinery Type
All-electric injection molding machine
2
Keyword
Mini Injection Molding Machine
3
Machine dimensions
850X430X500mm(Desktop)
4
Clamping force
5T
5
Power
220V/110V
6
Touch Screen
7 inch
7
Glue injection method
High-speed extrusion type
8
Maximum injection pressure
600kg(60Mpa)
9
Heating segments
4 segments (3 segments of barrel + 1 segment of mold temperature)
10
Maximum heating temperature
300℃
FAQ
We are one of the most professional Chinese wire cable process machine manufacturers and leaders. * Best products and factory price. * On-time delivery and the shortest delivery time. * 1year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery. * OEM and customized service. * User manuals will go with relative machines. Best products and factory price. On-time delivery and the shortest delivery time. OEM and customized service. User manuals will go with relative machines. QC: All products will be checked before delivery. Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers. Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance. Operation Guidance: If you have any problem with operation, please feel free to contact us.
