Quick Details
-
Brand Name:
-
AISO/OEM
-
Model Number:
-
ASQ-1250/4P
-
Rated Current:
-
1250A
-
Frame current:
-
1250
-
Product name:
-
ATS Switch
-
Rated Voltage:
-
400V
-
Packaging:
-
Export Wooden Case Packing
-
Sample:
-
Accept
-
Port:
-
Ningbo/Shanghai
-
Gurantee period:
-
18 Months
-
Certificate:
-
ISO9001
-
Rated frequency:
-
50/60Hz
-
Product Keywords:
-
Dual Power Isolation Switch
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
4
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AISO/OEM
-
Model Number:
-
ASQ-1250/4P
-
Rated Current:
-
1250A
-
Frame current:
-
1250
-
Product name:
-
ATS Switch
-
Rated Voltage:
-
400V
-
Packaging:
-
Export Wooden Case Packing
-
Sample:
-
Accept
-
Port:
-
Ningbo/Shanghai
-
Gurantee period:
-
18 Months
-
Certificate:
-
ISO9001
-
Rated frequency:
-
50/60Hz
-
Product Keywords:
-
Dual Power Isolation Switch
Product Description
Technical data
ATS Switch / generator automatic transfer switch / auto transfer switch
| Model / Item | ASQ-63A | ASQ-125A | ASQ-250A | ASQ-630A | ASQ-800A | ASQ-1250A | ASQ-1600A | ASQ-2000A | ASQ-2500A | ASQ-3150A | ASQ-4000A |
| Usage category | AC-33iB | ||||||||||
| Rated working voltage(Ue) | AC400V | ||||||||||
| Rated insulation voltage(Ui) | 690V | ||||||||||
| Rated impulse withstand voltage(Uimp) | 8kV | 6kV | 8kV | ||||||||
| Rated short-time withstand current(lcw) | 5kA | 10kA | 10kA | 20kA | 40kA | 60kA | 60kA | 80kA | 80kA | 100kA | 125kA |
| Rated short circuit making capacity(lcm) | 7.65kA | 17kA | 17kA | 40kA | 60kA | 60kA | 80kA | 100kA | 125kA | 160kA | 200kA |
| Operating endurance(times) | 10000 | 5000 | |||||||||
| 5000 | 2500 | ||||||||||
| Pole No. | 2 | ||||||||||
| 3 | |||||||||||
| 4 | |||||||||||
| Operating cycls(s/times) | 20s | ||||||||||
| Switching time | 1-99s(delay) | ||||||||||
Contact us for more details!!

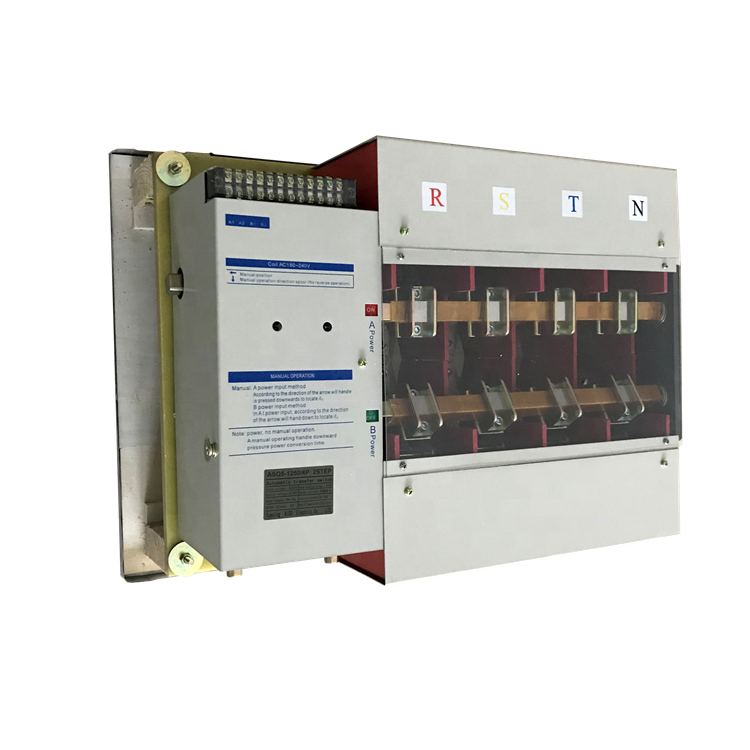

Product photo
ATS Switch / generator automatic transfer switch / auto transfer switch
