Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Weight:
-
36
-
Rated power/speed:
-
11kW/3600RPM
-
Marketing Type:
-
Hot Product
-
Model:
-
R500-V
-
Bore x Stroke:
-
94 x 72mm
-
Rated Output:
-
11kW@3600RPM
-
Torque:
-
31N.m@2500RPM
-
Starting System:
-
Electric/recoil Start
-
Fuel Tank Capacity:
-
6.9L
-
N.W./G.W.:
-
36/40kg
-
Dimension (L x W x H):
-
475 x 425 x 440mm
-
Certificate:
-
CE/EPA
Quick Details
-
Displacement:
-
500cc, 500cc
-
Emission Standard:
-
EURO 5
-
Power:
-
11kW
-
Place of Origin:
-
Jiangsu, China
-
Weight:
-
36
-
Rated power/speed:
-
11kW/3600RPM
-
Marketing Type:
-
Hot Product
-
Model:
-
R500-V
-
Bore x Stroke:
-
94 x 72mm
-
Rated Output:
-
11kW@3600RPM
-
Torque:
-
31N.m@2500RPM
-
Starting System:
-
Electric/recoil Start
-
Fuel Tank Capacity:
-
6.9L
-
N.W./G.W.:
-
36/40kg
-
Dimension (L x W x H):
-
475 x 425 x 440mm
-
Certificate:
-
CE/EPA
Product Description

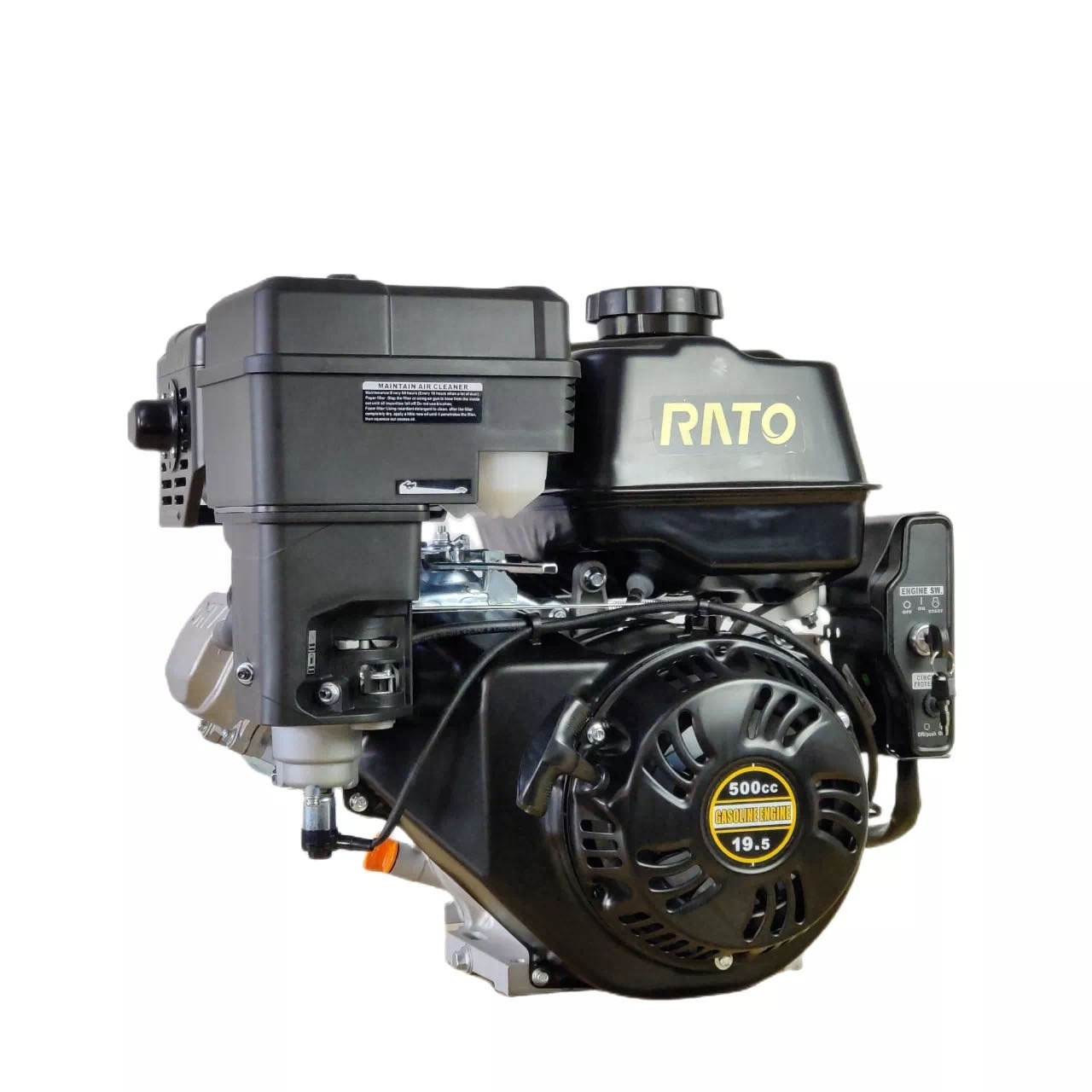

19.5HP Horizontal Shaft Single Cylinder 500CC Gasoline Engine For High Pressure Washer
The 500cc OHV Horizontal Engine is common used for log splitter, high pressure wahser, generator. Rated 11kW@3600RPM and 31N.m@ 2500RPM. OHV design offers
cooler, fuel-efficient operation and cast iron cylinder sleeve provides long usage life.
It is reliable, easy starting and quiet running. Meets EPA emission levels standards. CARB emission certificate is available
option. Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure.
cooler, fuel-efficient operation and cast iron cylinder sleeve provides long usage life.
It is reliable, easy starting and quiet running. Meets EPA emission levels standards. CARB emission certificate is available
option. Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure.
|
Model
|
R500-V
|
Engine Type
|
OHV, Single cylinder
|
||
|
Bore x Stroke
|
94 x 72mm
|
Displacement
|
500cc
|
||
|
Compression Ratio
|
8.5 : 1
|
Start Type
|
Electric/Recoil start
|
||
|
Speed
|
3600RPM
|
Rated Output
|
11kW@360
0RPM
|
||
|
Maximum Output
|
12.1kW@3600RPM
|
Torque
|
31N.m@2500RPM
|
||
|
Fuel Consumption
|
374g/kW.h
|
Shaft Output
|
Horizontal
|
||
|
Crankshaft
|
Key shaft
|
Cooling System
|
Air cooled
|
||
|
Fuel Type
|
Gasoline
|
Fuel Tank Capacity
|
6.9L
|
||
|
Oil capacity
|
1.2L
|
Lubrication System
|
Forced splash
|
||
|
Low Oil Alert
|
Yes
|
Low Oil Shutdown
|
Yes
|
||
|
Governor System
|
Centrifugal mechanical
|
Throttle Control
|
Remote (cable)
|
||
|
Carburetor
|
Float
|
Choke Control
|
Manual
|
||
|
Net Weight
|
36kg
|
Gross Weight
|
40kg
|
||
|
Dimension(L x W x H)
|
475 x 425 x 440mm
|
EPA Approval
|
Yes
|
||
|
Available Option
|
Electric start, CARB
|
Warranty
|
1 Year
|
||
|
Shaft Rotation
|
(From PTO Shaft Side) Counterclockwise
|
|
|
||
|
Application
|
Cement mixers, gear pump and etc.
|
|
|
||
Features + Benefits
EPA certificate engine
OHV design for increased efficiency and optimal power transfer
High compression ratio for better fuel efficiency
High compression ratio for better fuel efficiency
Low vibration from precision-engineered components
Cast iron cylinder sleeve
Recoil start with compression release helps you start on the first pull
Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure
Cast iron cylinder sleeve
Recoil start with compression release helps you start on the first pull
Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure
