Quick Details
-
Ejector Force(kN):
-
12.7 kN
-
Theoretical Shot Volume(cm³):
-
71.4 cm³
-
Injection Rate (g/s):
-
51.8 g/s
-
Injection Weight (g):
-
67.5 g
-
Screw Speed (rpm):
-
0 - 200 rpm
-
Screw diameter (mm):
-
28 mm
-
Distance between Tie Bars:
-
270mm
-
Weight (KG):
-
600 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
185 mm
-
Model Number:
-
JY-160S2
-
Brand Name:
-
Jieyang
-
Power (kW):
-
2.2 kW
-
Plastic Type:
-
Thermoplastic
-
Product name:
-

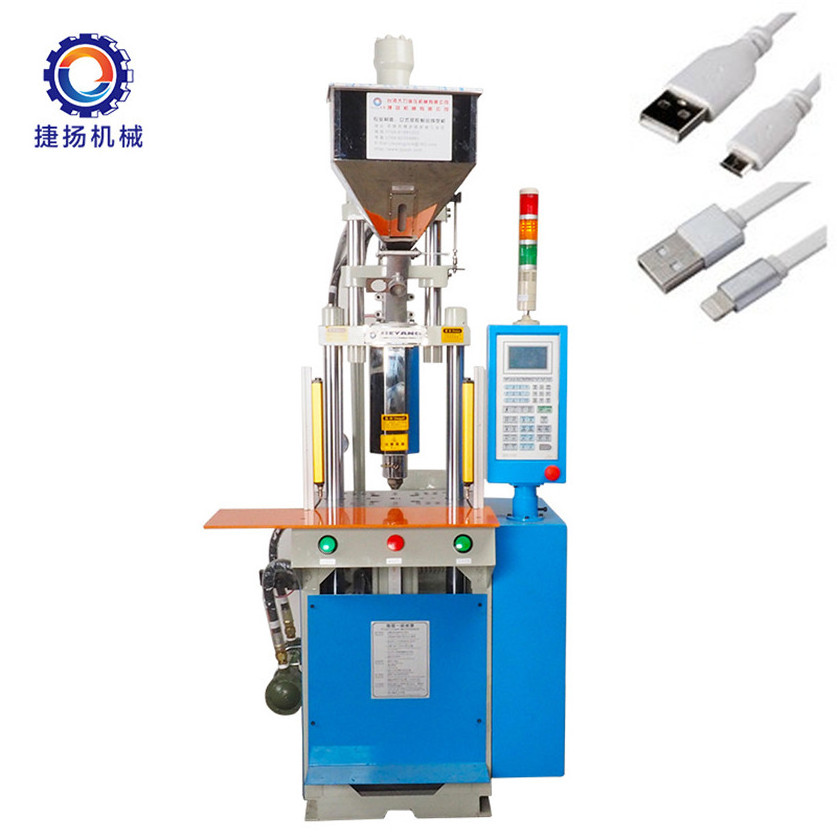

Mobile Charger USB Cable Making Vertical Injection Molding Machine
-
Injection weight:
-
58g
-
Distance Between Tie Bere:
-
265mm
-
Max.Opening:
-
210/260mm
-
Max.Mold Size:
-
250*200mm
-
Min.Mold Thickness:
-
25/75mm
-
Machine weight:
-
0.6 Tons
-
Machine Dimensions(LxWxH):
-
1.25*0.85*2.3m
Quick Details
-
Plasticizing Capacity(g/s):
-
67.5
-
Mold Height(mm):
-
100 - 300 mm
-
Ejector Stroke(mm):
-
116 mm
-
Ejector Force(kN):
-
12.7 kN
-
Theoretical Shot Volume(cm³):
-
71.4 cm³
-
Injection Rate (g/s):
-
51.8 g/s
-
Injection Weight (g):
-
67.5 g
-
Screw Speed (rpm):
-
0 - 200 rpm
-
Screw diameter (mm):
-
28 mm
-
Distance between Tie Bars:
-
270mm
-
Weight (KG):
-
600 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
185 mm
-
Model Number:
-
JY-160S2
-
Brand Name:
-
Jieyang
-
Power (kW):
-
2.2 kW
-
Plastic Type:
-
Thermoplastic
-
Product name:
-
Mobile Charger USB Cable Making Vertical Injection Molding Machine
-
Injection weight:
-
58g
-
Distance Between Tie Bere:
-
265mm
-
Max.Opening:
-
210/260mm
-
Max.Mold Size:
-
250*200mm
-
Min.Mold Thickness:
-
25/75mm
-
Machine weight:
-
0.6 Tons
-
Machine Dimensions(LxWxH):
-
1.25*0.85*2.3m
Product Description
Product Description
| MODEL |
JY-160S2
|
||||
|
UNIT
|
|
||||
| INJECTIONUNIT |
Screw Diameter
|
mm | Φ22 | Φ 26 | Φ28 |
| Theoretical Injection Volume | cm ³ | 44 | 61.5 | 71.4 | |
| Injection Weight | g | 41.6 | 58 | 67.5 | |
| Max.Injection Pressure | Mpa | 161.6 | 115.7 | 99.7 | |
| Injection Rate | cm ³/s | 31.5 | 44 | 51.08 | |
| Injection Speed | mm/s | 83 | |||
| Injection Stroke | mm | 116 | |||
|
Screw Speed Rotation
|
r.p.m | 0-170 | |||
|
NO.of Temperaturecontrol
|
3 | ||||
|
Nozzie Out From Platens
|
mm | ≥25 | |||
|
CLAMPINGUNIT
|
Clamping Force
|
KN(tf) | 147(15) | ||
|
Clamping Stroke
|
mm | 185 | |||
|
Min.Mold Thickness
|
mm | 25/75 | |||
|
Max.Opening
|
mm | 210/260 | |||
|
Distance Between Tie Bas(L*W)
|
mm | 270 | |||
| Max.Mould Size (L*W) |
mm
|
250*200 | |||
| Platen Size (L*W) |
mm
|
250*250 | |||
|
Ejector Distance
|
mm | 25 | |||
|
Ejector Force
|
KN(tf) | 12.7(1.3) | |||
| OTHERS |
System Pressure
|
Mpa |
13.7
|
||
| Oil Tank Capacity | L | 68 | |||
| Electric Power | KW(HP) | 2.2(3)-6P | |||
| Heater Power | KW | 2.2 | |||
| Machine Dimensions(L*W*H) | m | 1.14*0.865*2.4 | |||
| Machine Weight | tf | 0.6 | |||
