Quick Details
-
Voltage:
-
380~460 V
-
Dimension(L*W*H):
-
Standard
-
Weight:
-
600 KG
-
Name:
-
Small Gold Grizzly Grape Seed Trommel Screen
-
Customized:
-
Acceptable
-
Motor:
-
General motor
-
Roller rotation speed:
-
8~20 r/min
-
Structure:
-
Carbon steel
-
Length:
-
2~8 m
-
Layer(s):
-
1-4 Layers
-
Mesh size:
-
2-500 mesh
-
Capacity:
-
10~45 m3/h
-
Function:
-
Sieving/Classification/Removing impurities
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KARAT
-
Voltage:
-
380~460 V
-
Dimension(L*W*H):
-
Standard
-
Weight:
-
600 KG
-
Name:
-
Small Gold Grizzly Grape Seed Trommel Screen
-
Customized:
-
Acceptable
-
Motor:
-
General motor
-
Roller rotation speed:
-
8~20 r/min
-
Structure:
-
Carbon steel
-
Length:
-
2~8 m
-
Layer(s):
-
1-4 Layers
-
Mesh size:
-
2-500 mesh
-
Capacity:
-
10~45 m3/h
-
Function:
-
Sieving/Classification/Removing impurities
Product Description

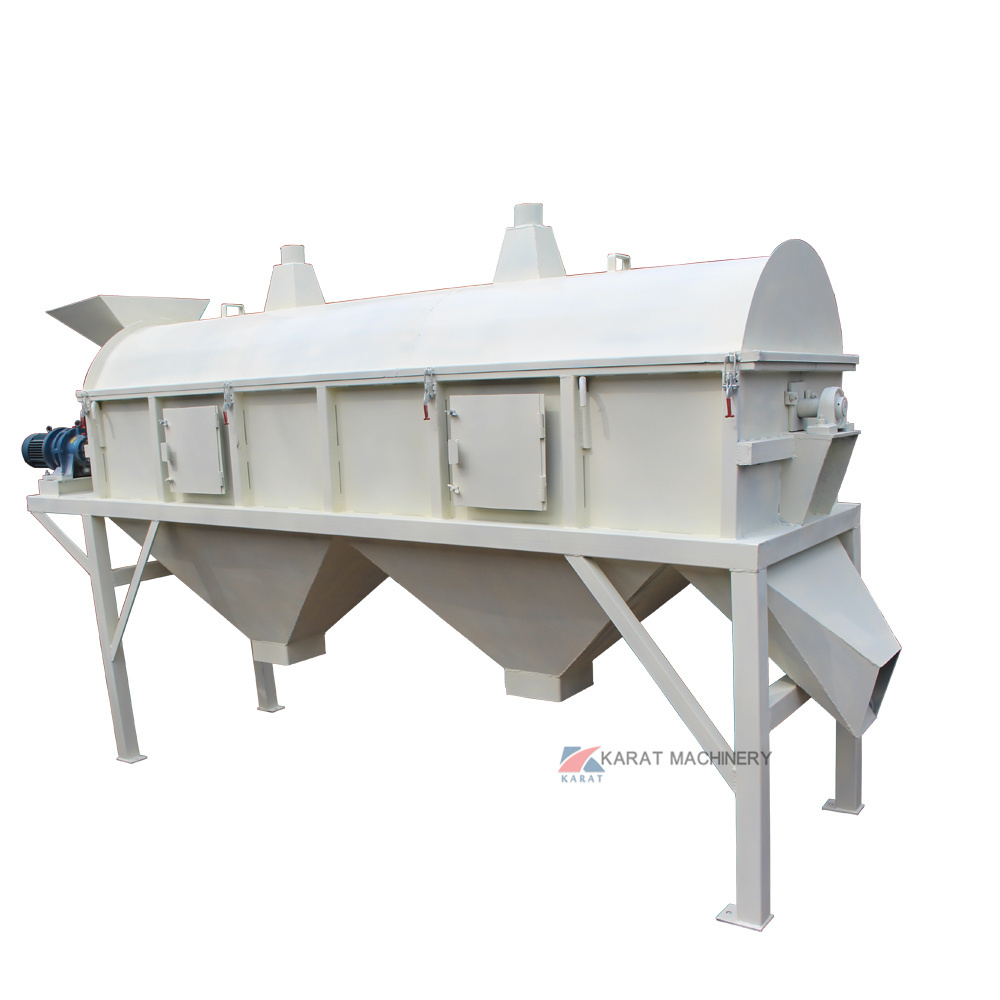

Small Gold Grizzly Grape Seed Trommel Screen
| Model | Segments of | Mesh size | Power | Inclination | Rotating speed | Capacity | Overall dimension |
| screen mesh | (mm) | (KW) | (rpm) | (m3/h) | |||
| YTS600 | 1-3 | 5-35 | 2.2-3 | 7° | 20 | 10 | 5400*1150*1200 |
| YTS800 | 1-3 | 5-40 | 2.2-5.5 | 7° | 18 | 14 | 5600*1300*1500 |
| YTS1000 | 1-4 | 5-45 | 3-7.5 | 7° | 16 | 16 | 7400*1400*2240 |
| YTS1200 | 1-4 | 5-50 | 4-11 | 7° | 15 | 20 | 9480*1580*3400 |
| YTS1500 | 1-4 | 5-55 | 4-15 | 7° | 12 | 23 | 9700*1860*3700 |
| YTS2000 | 1-5 | 5-60 | 11-18.5 | 7° | 8 | 45 | 1100*2400*4500 |
