Quick Details
-
Brand Name:
-
G-energy
-
Model Number:
-
N300V5-A
-
Output Frequency:
-
N/A
-
Output Current:
-
60A
-
Working temperature:
-
-30℃~60℃
-
Storage temperature:
-
-40~80℃
-
Size:
-
L*W*H/190*84*30mm
-
Safety Standards:
-
GB4943,EN60950
-
Capacity:
-
300W
-
Output voltage:
-
5V
-
Input voltage:
-
AC110V/AC220V
-
Warranty:
-
2 Years
-
Certification:
-
CE FCC ROHS
-
Product Name:
-

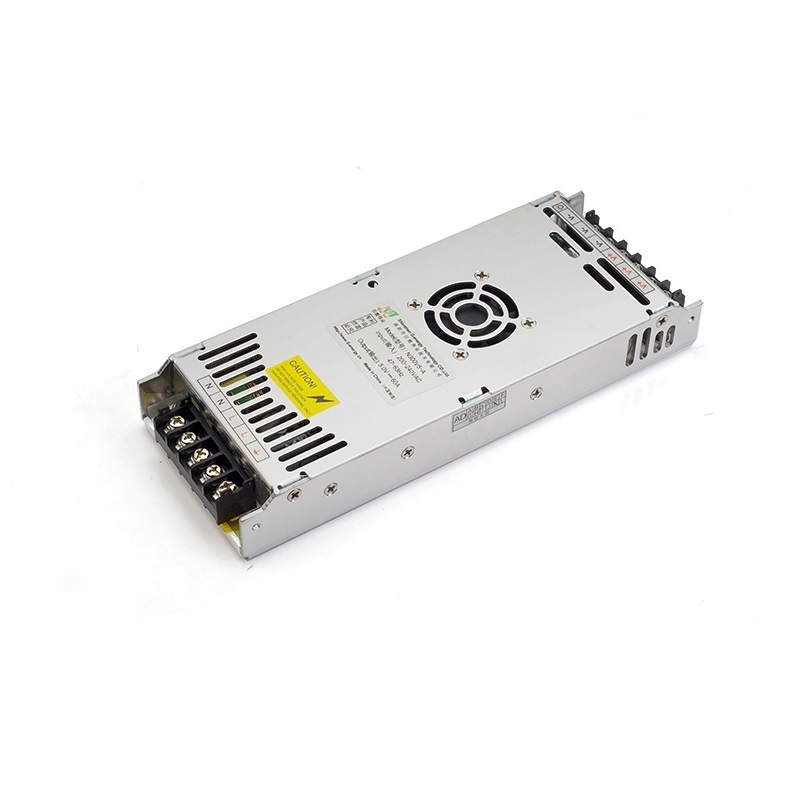

Power suppy for LED display
Quick Details
-
Input Voltage:
-
200-240Vac
-
Output Voltage:
-
5V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
G-energy
-
Model Number:
-
N300V5-A
-
Output Frequency:
-
N/A
-
Output Current:
-
60A
-
Working temperature:
-
-30℃~60℃
-
Storage temperature:
-
-40~80℃
-
Size:
-
L*W*H/190*84*30mm
-
Safety Standards:
-
GB4943,EN60950
-
Capacity:
-
300W
-
Output voltage:
-
5V
-
Input voltage:
-
AC110V/AC220V
-
Warranty:
-
2 Years
-
Certification:
-
CE FCC ROHS
-
Product Name:
-
Power suppy for LED display
Product Description
Output: 300W Max
Leakage current:<1ma(Vin:230)
Working temperature: -30℃~60℃
Cooling mode: natural cooling
Storage temperature: -40~80℃
Input voltage: 200-240Vac,47-63Hz
Insulation voltage: I/P-O/P:3.0KVac;I/P-FG:1.5KVac; O/P-FG:0.5KVac Defensive function: undervoltage input,overload protect,short circuit protect
PF:0.50@230Vac
Working temperature: -30℃~60℃
Cooling mode: natural cooling
Storage temperature: -40~80℃
Input voltage: 200-240Vac,47-63Hz
Insulation voltage: I/P-O/P:3.0KVac;I/P-FG:1.5KVac; O/P-FG:0.5KVac Defensive function: undervoltage input,overload protect,short circuit protect
PF:0.50@230Vac
Output: 200W Max
Leakage current:<1ma(Vin:230)
Working temperature: -30℃~60℃
Cooling mode: natural cooling
Storage temperature: -40~80℃
Input voltage: 200-240Vac,47-63Hz
Insulation voltage: I/P-O/P:3.0KVac;I/P-FG:1.5KVac; O/P-FG:0.5KVac Defensive function: undervoltage input,overload protect,short circuit protect
PF:0.50@230Vac
Working temperature: -30℃~60℃
Cooling mode: natural cooling
Storage temperature: -40~80℃
Input voltage: 200-240Vac,47-63Hz
Insulation voltage: I/P-O/P:3.0KVac;I/P-FG:1.5KVac; O/P-FG:0.5KVac Defensive function: undervoltage input,overload protect,short circuit protect
PF:0.50@230Vac
| Product Name | LED display power supply |
| Capacity | 300W |
| Size | L*W*H/190*84*30mm |
| Safety Standards | GB4943,EN60950 |
| Certification | CE FCC ROHS |
| Application | Outdoor / Indoor LED display |
| Weight | 0.68kg/pcs |
| Working temperature | -30℃~60℃ |
| Storage temperature | -40~80℃ |
| Input voltage | AC 110V/ AC220V |
| Output voltage | 5V |
| Warranty | 2 years |
