Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JULONG
-
Dimension(L*W*H):
-
188cm*130cm*112cm
-
Weight (KG):
-
389 KG
-
Laser power:
-
100W
-
Laser tube:
-
CO2 Laser Tube
-
Software:
-
CorelDraw / AutoCAD
-
Color:
-
Blue-white/Red and black/orange-white
-
Function:
-
Engraving/cutting Non metal Materials
-
Model number:
-
JL-K1080
-
Product name:
-
JL-K1080 100W laser cutting machines acrylic laser engraving blanks
-
Working area:
-
1000MM*800MM
-
Cooling way:
-
Water Cooling Including
Quick Details
-
Engraving Area:
-
1000*800mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
800mm/s
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JULONG
-
Dimension(L*W*H):
-
188cm*130cm*112cm
-
Weight (KG):
-
389 KG
-
Laser power:
-
100W
-
Laser tube:
-
CO2 Laser Tube
-
Software:
-
CorelDraw / AutoCAD
-
Color:
-
Blue-white/Red and black/orange-white
-
Function:
-
Engraving/cutting Non metal Materials
-
Model number:
-
JL-K1080
-
Product name:
-
JL-K1080 100W laser cutting machines acrylic laser engraving blanks
-
Working area:
-
1000MM*800MM
-
Cooling way:
-
Water Cooling Including
Product Description
Related Products

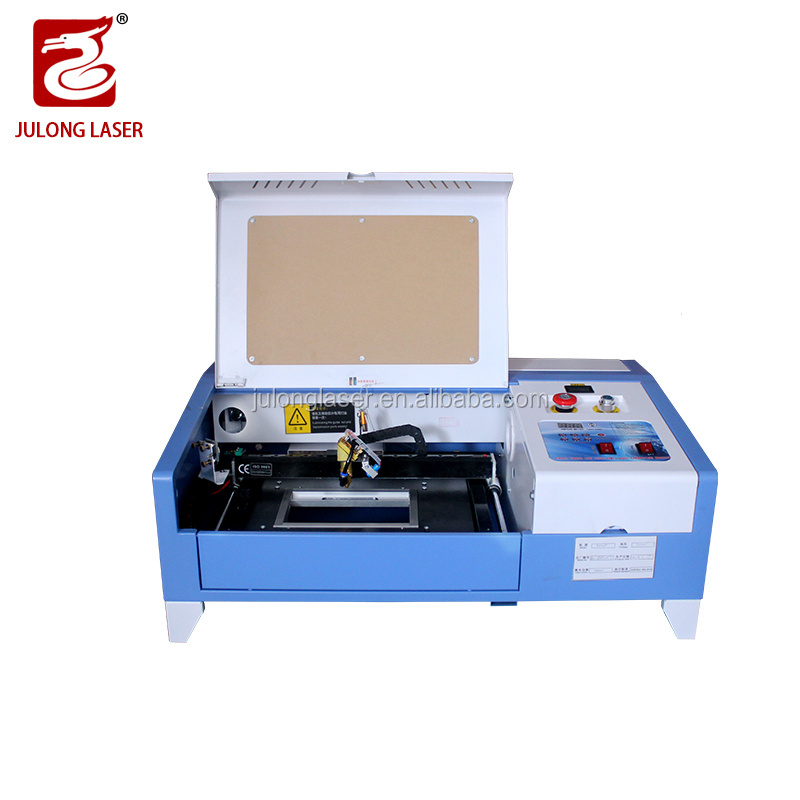

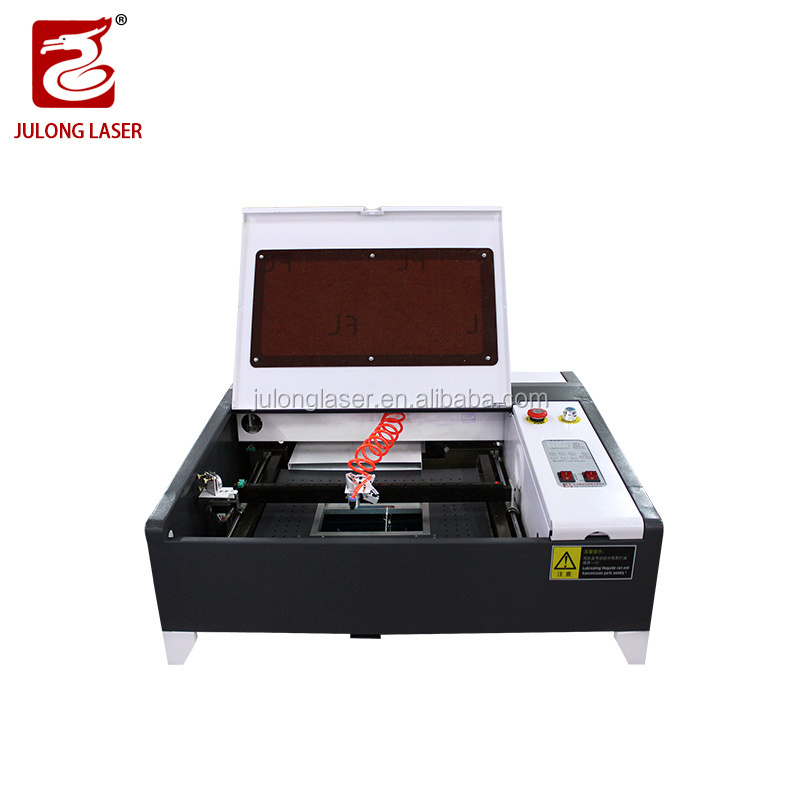

Working area :110*110mm/150mm*150mm/200mm*200mm Laser tube watts:10W/20W/30W/50W
Working area :110*110mm/150mm*150mm/200mm*200mm
Laser tube watts:10W/20W/30W/50W
Laser tube watts:10W/20W/30W/50W
Main Features
Certifications
Samples
product description
|
Prodcut name
|

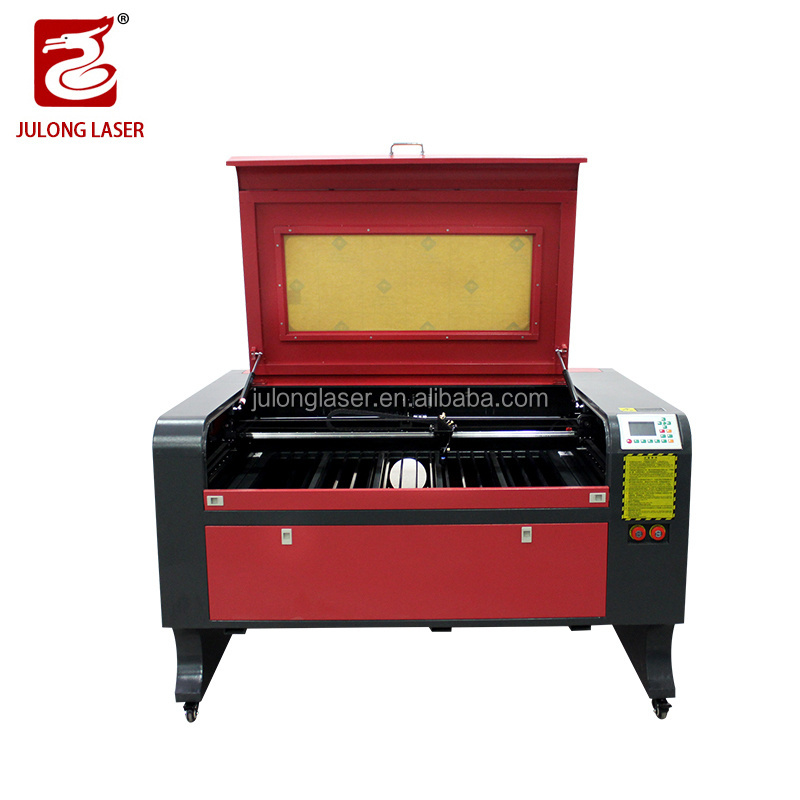

Julong laser JL-K1080 100W acrylic laser cutting machines acrylic laser engraving blanks
|
|
Laser type
|
Hermetic co2 glass tube
|
|
Laser power
|
60W/80W/100W/130W/150W
|
|
Driving system
|
digital subdivision stepper motor
|
|
Power supply
|
AC220V±10% 50HZ/AC110±10%60HZ
|
|
Total power
|
≤2000W
|
|
Working area
|
1000*800mm
|
|
Max moving speed /Max cutting speed
|
0-1000mm/sec
|
|
cutting thickness
|
0-18mm(depends on diffrent materials)
|
|
the Worktable
|
Up and down woktable /fixed worktable(optional)
|
|
Location precision
|
±0.1mm
|
|
Mini shaping character
|
Chinese character:2*2mm,English letter 1*1mm
|
|
Resolution ration
|
≤4500DPI
|
|
Control configuration
|
Qiancheng Controlling System
|
|
Data transfer interface
|
USB (offline)
|
|
System environment
|
Windows2000/Windows XP/Win7
|
|
Graphic format supported
|
(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT)
|
|
Compatible software
|
Coreldraw/AutoCAD
|
|
Cutting thickness
|
0-20mm(depends on diffrent materials)
|
|
Color separation
|
Separation of cutting up to 256 colors
|
|
Operating temperature
|
0-45°C
|
|
Operating humidity
|
5-95%(free of condensed water)
|
|
Water supply cut-off protection
|
Yes
|
|
Machine dimension
|
L188mm*W130mm*H112mm(L206mm*W149mm*H128mm)
|
|
Net weight
|
395KG/420KG
|
