Quick Details
-
Model Number:
-
ZWB3 UG5 U330
-
Material:
-
Optical Colored Glass
-
Thickness:
-
Custom
-
Size:
-
Custom
-
Surface quality:
-
10/5~60/40
-
Surface Accuracy:
-
1/20 into,1/10 into ,1/4 into,1/2 into...
-
Thickness tolerance:
-
±0.01mm-±0.02mm
-
Parallelism:
-
5arc second~1arc minute
-
Coating:
-
AR/AF Coating can be Customized
-
Processing Range:
-
up to 0.2mm thickness of the thinnest
-
Use:
-
Optical Instrument
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong,China
-
Brand Name:
-
OEM/ODM
-
Model Number:
-
ZWB3 UG5 U330
-
Material:
-
Optical Colored Glass
-
Thickness:
-
Custom
-
Size:
-
Custom
-
Surface quality:
-
10/5~60/40
-
Surface Accuracy:
-
1/20 into,1/10 into ,1/4 into,1/2 into...
-
Thickness tolerance:
-
±0.01mm-±0.02mm
-
Parallelism:
-
5arc second~1arc minute
-
Coating:
-
AR/AF Coating can be Customized
-
Processing Range:
-
up to 0.2mm thickness of the thinnest
-
Use:
-
Optical Instrument
Products Description
|
Product Name
|

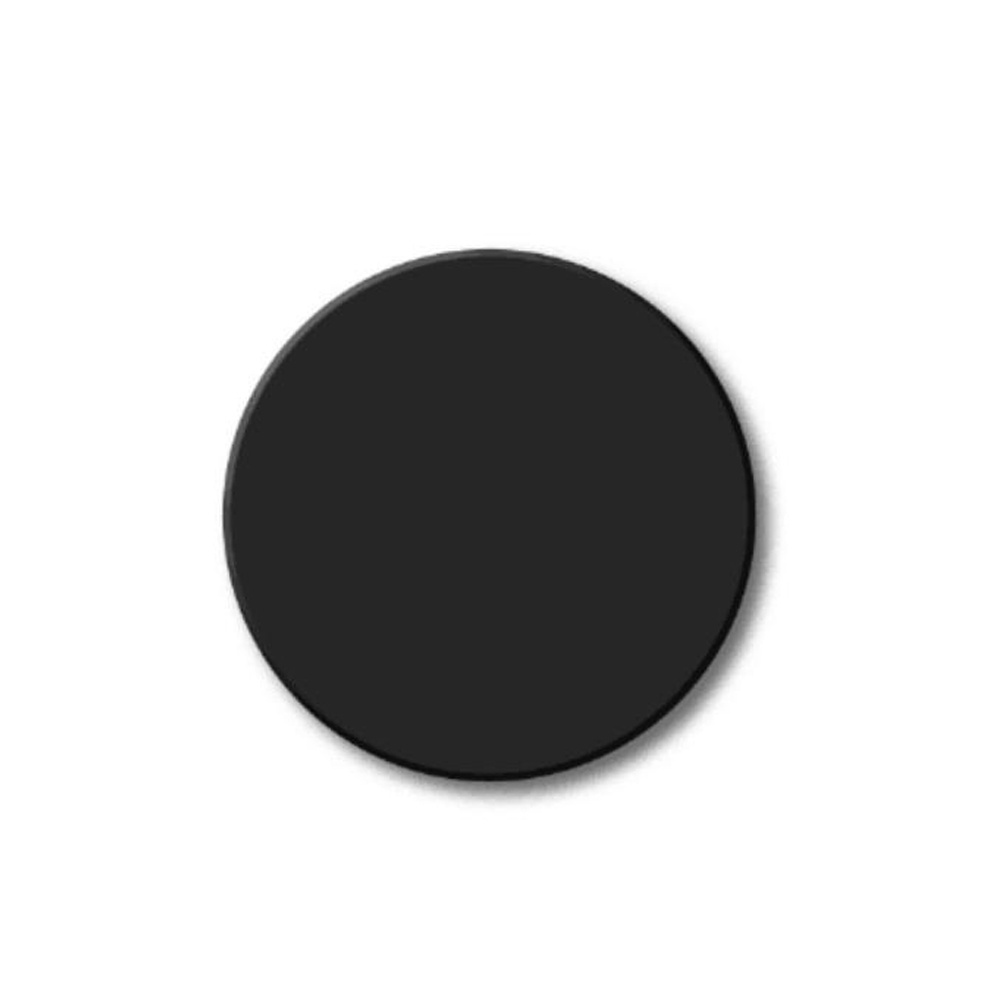

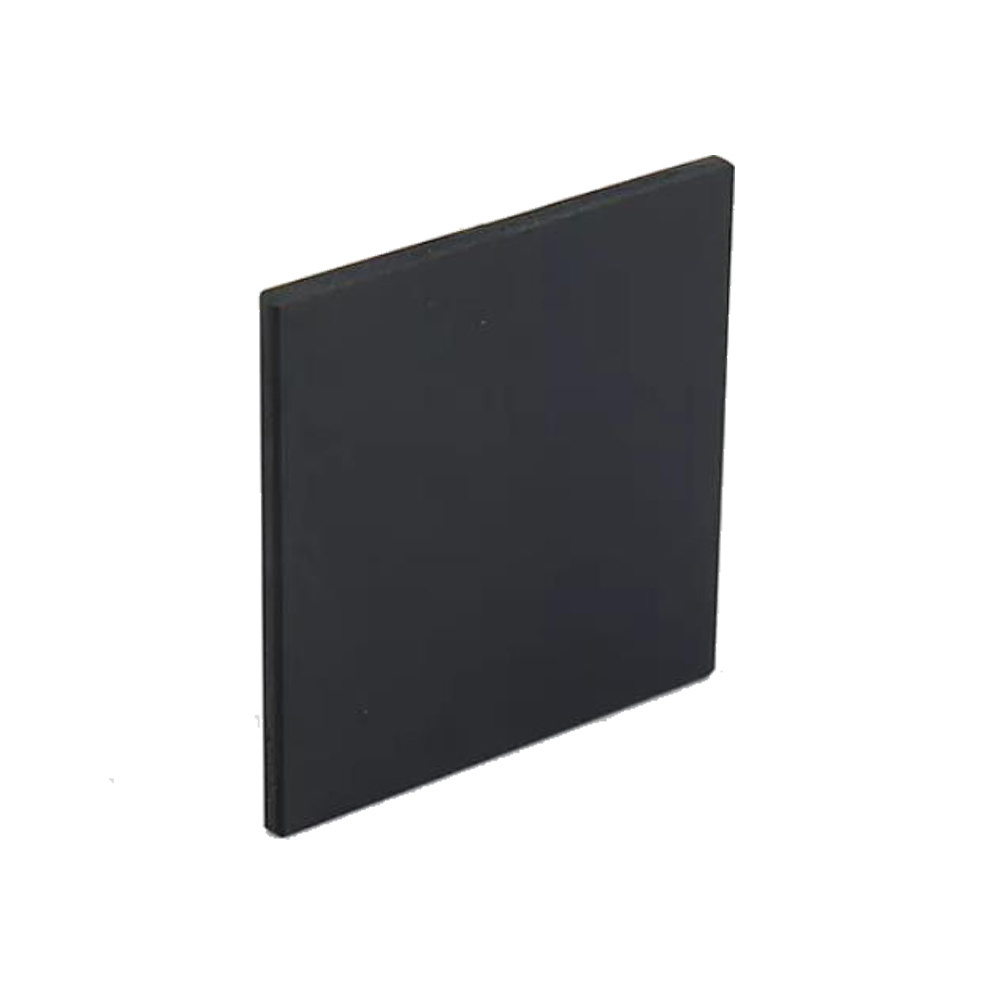

UV Pass Ultraviolet Optical Filters ZWB3 UG5 U330
|
|
Surface quality
|
10/5~60/40
|
|
Surface Accuracy
|
1/20λ,1/10λ,1/4λ,1/2λ...
|
|
Thickness tolerance
|
±0.01mm-±0.02mm
|
|
Parallelism
|
5arc second~1arc minute
|
|
Processing Range
|
up to 0.2mm thickness of the thinnest
|
|
Size/thickness
|
Custom
|
|
Coating
|
AR/AF Coating can be customized
|
|
Coating Color
|
Green/Blue/Pink/Custom
|
|
Tempering
|
Can be tempered
|
|
Application
|
Microscopic instruments/Optical metro logical instruments Laser protective windows/Optical instruments of surveying and mapping/Machine vision devices/Optical detection instruments/The popular science optical/A digital optical Optical test instruments/Fiber optic instruments/ Laser Instruments/Electro-optic displays /Medical optical Infrared thermography /Observation instrument measuring instrument and photography
|
