Quick Details
-
Brand Name:
-
Teren
-
Model Number:
-
DTI-100H
-
Accuracy:
-
Better than ±1.0% for velocity above 0.2m/s
-
Measuring Pipe Size:
-
15mm - 6000mm
-
Flow Range:
-
±32m/s
-
Repeatability:
-
0.2%
-
Linearity:
-
0.5%
-
Flow Type:
-
Water,sea water,industrial water, oil liquid, sewage
-
Suitable Temperature:
-
-30-160 degrees Celsius
-
Built-in data logger:
-
Built-in 24K data logger,store over 2000lines measuring data
-
Power:
-
Rechargable Battery &AC
-
Output:
-
RS232, OCT
-
Certification:
-
ISO,CE
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
1 year
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Teren
-
Model Number:
-
DTI-100H
-
Accuracy:
-
Better than ±1.0% for velocity above 0.2m/s
-
Measuring Pipe Size:
-
15mm - 6000mm
-
Flow Range:
-
±32m/s
-
Repeatability:
-
0.2%
-
Linearity:
-
0.5%
-
Flow Type:
-
Water,sea water,industrial water, oil liquid, sewage
-
Suitable Temperature:
-
-30-160 degrees Celsius
-
Built-in data logger:
-
Built-in 24K data logger,store over 2000lines measuring data
-
Power:
-
Rechargable Battery &AC
-
Output:
-
RS232, OCT
-
Certification:
-
ISO,CE
Product Description
Explosionproof Ultrasonic Heat Meter Body
Ultrasonic Flow Meter
|
Linearity
|
0.50%
|
|
Repeatability
|
0.20%
|
|
Accuracy
|
±1% of reading at rates>0.6 ft/s. ±0.5% with on-site calibration
|
|
Response Time
|
0-999 seconds, user-configurable
|
|
Velocity
|
±0.03 ~ ±105 ft/s (±0.01 ~ ±30 m/s), bi-directional
|
|
Pipe Size
|
0.5” ~ 240” (15 ~ 6,000mm)
|
|
Rate Units
|
Meter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel,
USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallons. User configurable. |
|
Totaliser
|
7-digit totals for net, positive and negative flow
|
|
Liquid Types
|
Virtually all liquids
|
|
Security
|
Setup lockout. Access code needed for unlocking
|
|

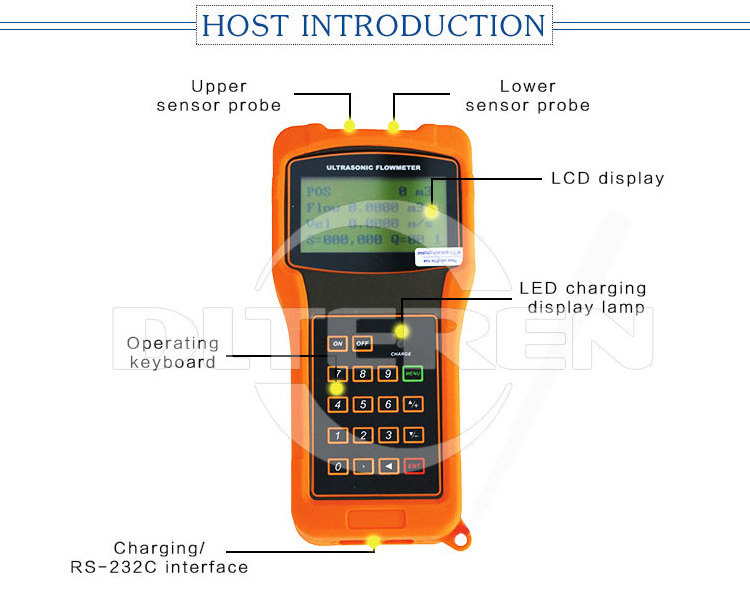

Display
|
4x16 English letters
|
|
Communication Interface
|
RS-232C, baud-rate: from 75 to 115,200 bps. Protocol made by the manufacturer.
User protocols can be made on enquiry. |
|
Transducers
|
Model M1 for standard, other models for optional
|
|
Transducer Cable
|
Standard 2x30’ (10m), optional 2x1,500’ (500m)
|
|
Power Supply
|
3 AAA Ni-H built-in batteries. When fully charged it will last over 10 hours of
operation. 100V-240VAC for the charger |
|
Data Logger
|
Built-in data logger can store over 2,000 lines of data
|
|
Manual Totalizer
|
7-digit press-key-to-go totalizer for calibration
|
|
Housing Material
|
ABS. Aluminum alloy protective case
|
|
Case Size
|
3.9"x2.6"x0.8" (100x66x20mm)
|
|
Handset Weight
|
514g with batteries
|

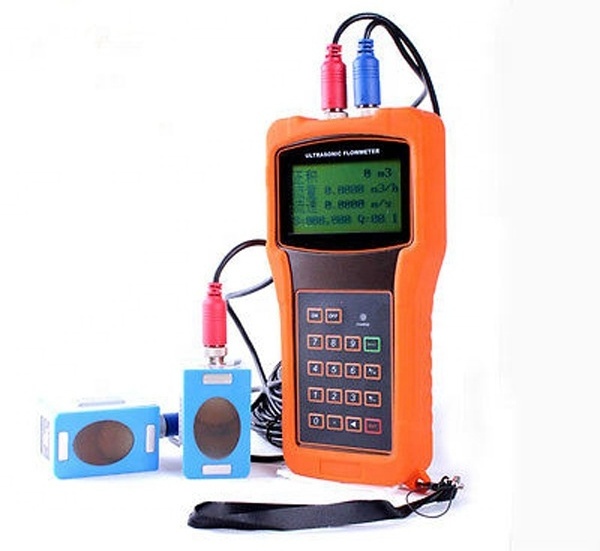

TWO types of transducers to choose:
|
Type
|
Transducer
|
Measuring Range
|
Temperature
|
||
|
Clamp type
Conventional type
|
S1
|
DN15~DN100mm
|
-40~90℃
|
||
|
|
M1
|
DN50~DN700mm
|
-40~90℃
|
||
|
|
L1
|
DN300~DN6000mm
|
-40~90℃
|
||
|
Clamp type
High temperature type
|
S2
|
DN15~DN100mm
|
-40~160℃
|
||
|
|
M2
|
DN50~DN700mm
|
-40~160℃
|
||
|
|
L2
|
DN300~DN6000mm
|
-40~160℃
|
||
|
Bracket type
Conventional type
|
DTI -HS-DS
|
DN15~DN100mm
|
-40~90℃
|
||
|
|
DTI -HM-DS
|
DN50~DN700mm
|
-40~90℃
|
||
|
Bracket type
High temperature type
|
DTI -HS-HT
|
DN15~DN100mm
|
-40~160℃
|
||
|
|
DTI -HM-HT
|
DN50~DN700mm
|
-40~160℃
|
||
|
Bracket extension rod
|
DTI-EB-1
|
DN300~DN700mm
|
-40~90℃
|
||
|
Bracket extension rod
(high temperature)
|
DTI-EB-1-HT
|
DN300~DN700mm
|
-40~160℃
|
||
|
Data loggo
|
Use for ultrasonic flow meter;
SD Card 8G;RS232 input;
rechargealle battery
|
|
|
||
