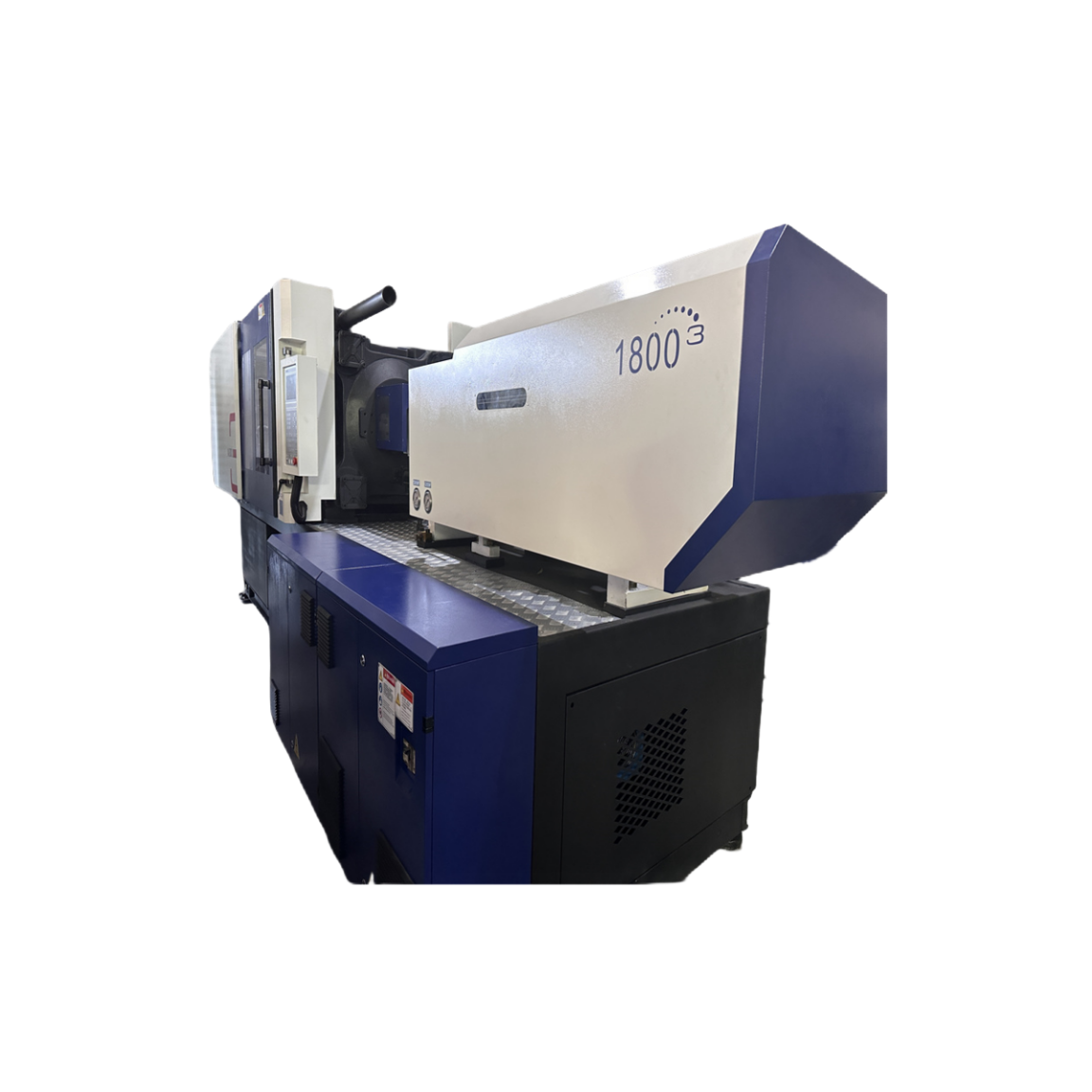

Ma300t Cheap Injection Molding Machines Plastik Enjeksiyon Makinesi Shoes Machine
Ma300t Cheap Injection Molding Machines Plastik Enjeksiyon Makinesi Shoes Machine
Ma300t Cheap Injection Molding Machines Plastik Enjeksiyon Makinesi Shoes Machine
Ma300t Cheap Injection Molding Machines Plastik Enjeksiyon Makinesi Shoes Machine
Ma300t Cheap Injection Molding Machines Plastik Enjeksiyon Makinesi Shoes Machine
Ma300t Cheap Injection Molding Machines Plastik Enjeksiyon Makinesi Shoes Machine
Ma300t Cheap Injection Molding Machines Plastik Enjeksiyon Makinesi Shoes Machine
Ma300t Cheap Injection Molding Machines Plastik Enjeksiyon Makinesi Shoes Machine

Ma300t Cheap Injection Molding Machines Plastik Enjeksiyon Makinesi Shoes Machine

FOB Reference Price: Get Latest Price
≥1 Pieces
US $24600
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Guangdong, China
Year:
2022
Product name:
Plastic Injection Moulding Machine
Keyword:
Used Injection Molding Machine
Used for:
Tube connector, preform, caps, crates, toys...
After-sales Service Provided:
Video technical support
After Warranty Service:
Video technical support
voltage:
As customer required
Warranty:
1 Year

Quick Details

Injection Rate (g/s):
220 g/s
Injection Weight (g):
735 g
Weight (KG):
11000 kg
Place of Origin:
Guangdong, China
Year:
2022
Product name:
Plastic Injection Moulding Machine
Keyword:
Used Injection Molding Machine
Used for:
Tube connector, preform, caps, crates, toys...
After-sales Service Provided:
Video technical support
After Warranty Service:
Video technical support
voltage:
As customer required
Warranty:
1 Year
Parameters
BST-3000
BST-3400
BST-3850
Screw diameter
mm
56
58
65
Theoretical Shot weight
CM3
788
858
1192
Shot weight
gram
709
772
1072
Clamping force
KN
3000
3400
3850
Toggle stroke
mm
560
580
660
Ejector stroke
mm
160
16
160
Space between tie bars
mm
580*580
640*640
680*680
Mould thickness
mm
220-600
270-650
280-680
Machine size
m
6.5*1.8*1.8
6.7*2.0*1.9
Machine weight
ton
9 ton
10.8 ton
11.5 ton
Injection Molding Machine Standard Feature
CLAMPING UNIT
1. New type 5-point toggle device with the advantage of stable movement curve and gentle shock
2. High-quality mold platen with enough intensity to ensure no out of shape if high-pressure clamping
3. Hard chrome plated high tensile strength tie bars made of superior alloy with a good wear and corrosion resistance
ability
4. Wear-resistant guide for moving platen
5. Transducer control clamping stroke
6. Many step controls for speed and pressure of clamping and opening
7. Ejection device offer dwell, single, more, vibration function
8. Differential high-speed clamping
9. Low pressure mold protection function
10. Hydraulic mold height adjustment derived by gear with rough and fine operation
11. Mechanical and electrical dual safety interlock
12. Automatic centralized lubrication system with far pressure detector
HYDRAULIC UNIT
1. Proportional pressure and flow control with the advantage of fine adjustment and high precision
2. Know-how manifold design, compact, reasonable and fast respond
3. Imported world famous hydraulic valves
4. Imported world famous hydraulic sealing rings
5. Import technology hydraulic hose and fittings
6. Low noise hydraulic system
7. Oil tank with inner stainless-steel container
8. Precision oil filter
9. Oil cooler
CONTROL UNIT
1. 1. The computer is imported from Industry family. The LCD displaying screen with high clarity has Chinese and English
language to display
2. World famous electrical components
3. Close-loop PID temperature control with the advantage of high precision.
4. Deviation preset between high and low temperature. And break control for temperature sensor.
5. Alarming system in case of cold start and no material in hopper
6. Transducer control the injection and opening stroke to accuracy of ±0.05mm
7. 99 steps speed control for increasing and reducing to suit for different technology demands
8. Self-diagnostic and trouble alarm function
9. Parameters lock function to avoid being changed
10. 100 sets of production parameters can be stored into the computer memorial software
11. Machine can record the quantity of products and automatically stop if up to the required quantity.
12. Emergency stop device
13. Alarm lamp
FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
