Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Yanto
-
Dimension(L*W*H):
-
446*461*572
-
Weight:
-
82
-
Rated power/speed:
-
other
-
After-sales Service Provided:
-
No overseas service provided
-
Starting system:
-
Electric Starter
-
Engine type:
-
4-stroke
-
Product name:
-
diesel engine
-
Certification:
-
CE
Quick Details
-
Displacement:
-
Other
-
Emission Standard:
-
Other
-
Power:
-
other
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Yanto
-
Dimension(L*W*H):
-
446*461*572
-
Weight:
-
82
-
Rated power/speed:
-
other
-
After-sales Service Provided:
-
No overseas service provided
-
Starting system:
-
Electric Starter
-
Engine type:
-
4-stroke
-
Product name:
-
diesel engine
-
Certification:
-
CE

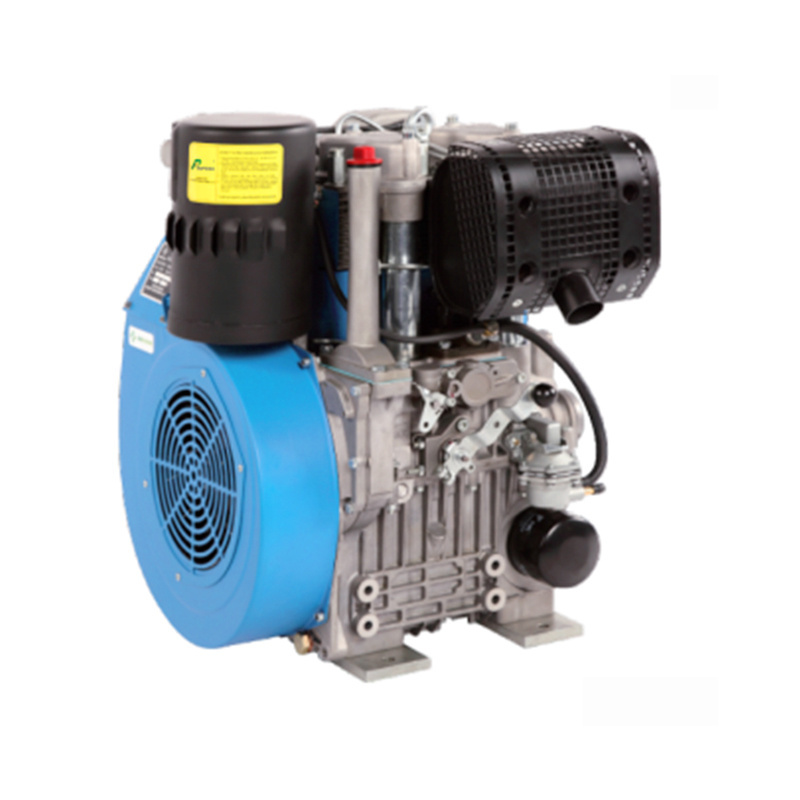

JJ292F 2 Double Cylinder Small Diesel Engine with Air-cooling Machinery Engines
| Item | Unit | HH292F |
| Bore | mm | 92 |
| Stroke | mm | 76 |
| Displacement | L | 1 |
| Compression ratio | 19 | |
| Air intake type | Nature aspiration | |
| Cooling type | Air cooling | |
| Rated output | Kw/HP | 15/20 15.6/21 |
| Rated speed | r/min | 3000/3600 |
| Max. torque | Nm | 54 |
| Engine speed at max. torque | r/min | 2200 |
| Min. fuel consumption | g/kW.h | 220 |
| Min. steady speed | r/min | 1200 |
| Max. noise | dB(A) | 106 |
| Min. oil pressure | [bar] | 1 |
| Max. permissible oil temperature | ℃ | 110 |
| Speed droop (steady state) mechanical | % | 5 |
| Speed droop (steady state) electrical | % | 1 |
| Exhaust level | EPA Tier IV | |
| Injection system | Mechanical injection pump & injection nozzle | |
| Crankshaft rotation (output side) | left | |
| Oil pump structure | Rotator | |
| Fuel model | 0# (Normal), -10#(Winter) | |
| Lubricating oil model | 40CD (Summer), 30CD (Winter) (GB11122) | |
| Battery capacity | V/Ah | 12/36 |
| Net weight | kg | 82 |
| Dimension (L×W×H) | mm | 446×461×572 |
