Quick Details
-
Service:
-
OEM/ODM
-
Support:
-
one year warranty
-
Max Boom length:
-
3m, 4.5m, 6m
-
Boom dimension (WxH):
-
45x80mm
-
Boom weight:
-
3kg, 4.5kg, 6kg
-
Voltage:
-
220V ± 10%, 110V ± 10%
-
Frequency:
-
50/60Hz
-
Motor voltage:
-
220V
-
Power:
-
120W
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SCTEWELL
-
Product name:
-
car park barrier gate
-
Service:
-
OEM/ODM
-
Support:
-
one year warranty
-
Max Boom length:
-
3m, 4.5m, 6m
-
Boom dimension (WxH):
-
45x80mm
-
Boom weight:
-
3kg, 4.5kg, 6kg
-
Voltage:
-
220V ± 10%, 110V ± 10%
-
Frequency:
-
50/60Hz
-
Motor voltage:
-
220V
-
Power:
-
120W

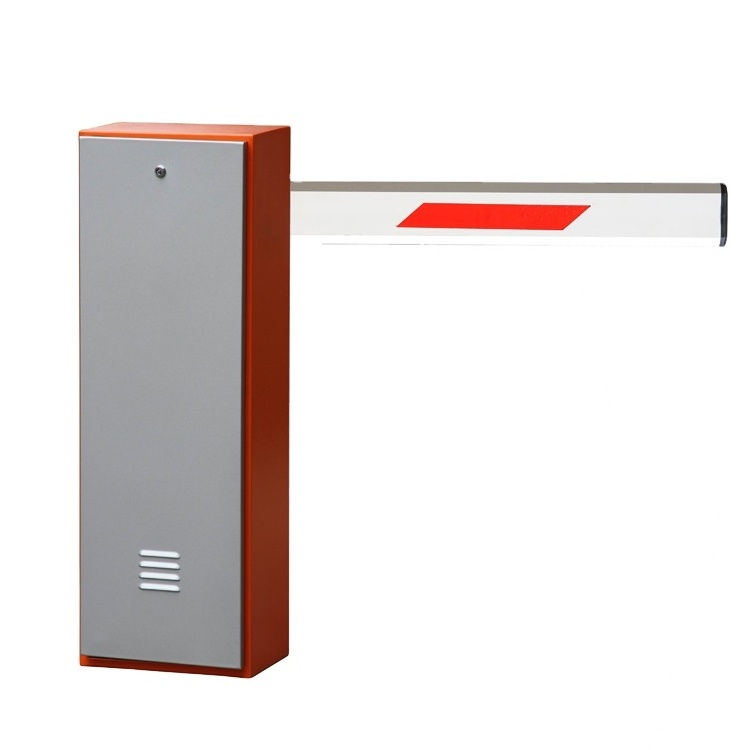

Latest 3M RFID automatic parking system car park barrier gate
Product Description
Advantage of driveway barrier gate we have
High grade integration mechanism:
Independent R & D design,gearwheel/worm reduction box/Strong cooling converter motor/double restric travel-control system,adopting the one-time molding technology,stable and durable.
Independent R & D design,gearwheel/worm reduction box/Strong cooling converter motor/double restric travel-control system,adopting the one-time molding technology,stable and durable.
High grade converter motor:
High voltage converter motor adopt strong cooling device to ensure it runs steadily and to reduce its vibration and noise.
High voltage converter motor adopt strong cooling device to ensure it runs steadily and to reduce its vibration and noise.
High grade manual clutch
When power failure or malfunction, simply turn the clutch handle to lift the barrier. When in power,Close the clutch device to turn to electric control,distinguish with formerly hand mode,Convenient and quick.
When power failure or malfunction, simply turn the clutch handle to lift the barrier. When in power,Close the clutch device to turn to electric control,distinguish with formerly hand mode,Convenient and quick.
Precision extension sprin:
Reliable tension and durable
Reliable tension and durable
painting processes:
Pre treatment - drying - primer coating - baking - finish painting - baking - check
Its advantage of Bright color with strong visual impact,more durable.
Pre treatment - drying - primer coating - baking - finish painting - baking - check
Its advantage of Bright color with strong visual impact,more durable.
Feature---
motor barrier gate
>>>
Built-in battery backup provides seamless operation of the gate operator and all DC control and sensing devices in the event of a power loss.
1 Aluminum alloy chassis
2 Built-in battery backup
3 Soft start/stop
4 DC operator system
5 Right or left-handed operation
6 Breakaway arm
7 Control inputs
8 Inherent obstruction sensing
9 LED indicators optional
10 Dual gate operation
11 Dynamic braking
12 Magnetic sensors
13 Timer to close
14 1-year warranty for electronics and mechanism;
15 Technical support for maintenance by telephone, email, on-line etc all the life;
Technical paramter of
motor barrier gate
>>>
| Power | 250W |
| Housing Size | 340*280*1045 mm |
| Housing color | orange / blue/Yellow |
| Rail type | straight |
| Rail material | Aluminum Alloy |
| Rail lifting time | 1.5S(fast) / 6S(ordinary) |
| Rail length | 3m(fast) / 6m(ordinary) |
| MCBF | ≥5,000,000 times |
| Motor speed | 30r/min |
| Wave pressure | Yes |
| Bumping bounce back | N/A |
| Traffic light | Optional |
| Working Temperature | minors 40°C to 45°C |
| Working environments | indoor, outdoor |
| Relative humidity | <90% coagulation free |
