Quick Details
-
Brand Name:
-
AUBO
-
Model Number:
-
AMVI
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
2.2*1.2*1.5m
-
Weight:
-
800kg
-
Product name:
-
Medium Voltage Drive
-
Rated power:
-
800KW
-
Rated Voltage:
-
10kv
-
Topology of System:
-
13 cells per phase
-
Transformer:
-
Phase-shifting transformer
-
Power Cell:
-
Infineon
-
PLC:
-
Included
-
DSP:
-
TI Brand
-
Warranty:
-
18 Months
-
Auto Bypass:
-
Optional
Quick Details
-
Output Current:
-
depend on power
-
Customized support:
-
oem
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AUBO
-
Model Number:
-
AMVI
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
2.2*1.2*1.5m
-
Weight:
-
800kg
-
Product name:
-
Medium Voltage Drive
-
Rated power:
-
800KW
-
Rated Voltage:
-
10kv
-
Topology of System:
-
13 cells per phase
-
Transformer:
-
Phase-shifting transformer
-
Power Cell:
-
Infineon
-
PLC:
-
Included
-
DSP:
-
TI Brand
-
Warranty:
-
18 Months
-
Auto Bypass:
-
Optional
Product Description

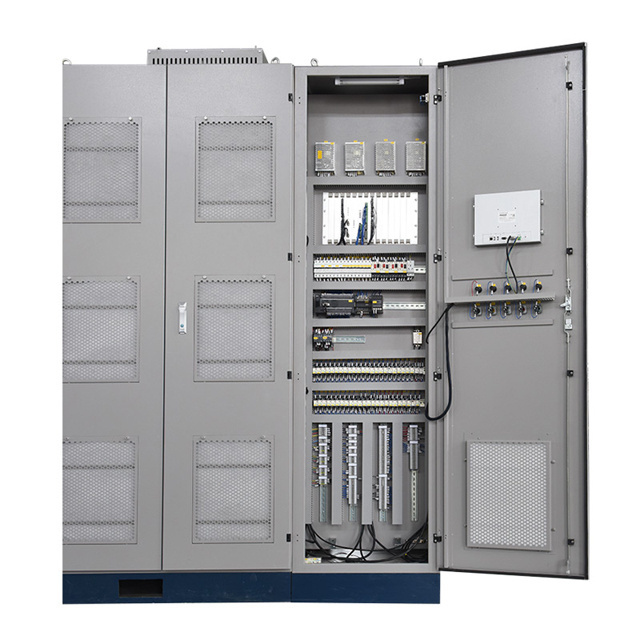

High Voltage Inverter Frequency Converter DC to AC Inverter 3 Phase 10kv 800kw High Frequency Variable Speed Drives
Nanjing AUBO Electric Co., ltd is a manufacturer with nearly 20 years of manufacturing experience of the highest quality VFD, soft starter and other related automation products and solutions. The power range of our medium voltage VFD is from 200kw to 1000kw,the voltage is 3-10KV. The product uses multi-level technology and multiple IGBT power unit series superposition, and to achieve (perfect no harmonic) high-voltage output technology. In the use of obvious advantages, not only significant energy saving, but also improve the process, improve operation Quality, reduce production costs and other aspects of the enterprise for the great economic benefits.
Characteristic and advantage
Core components
Choose global famous brand spare parts with reliable quality
Multiple protections
|
MVD Item
|
AMV-IV～250～1500
|
AMV-IV～500～9800
|
AMV-IV～800～12500
|
||
|
Capacity of MVD（kVA）
|
250～1500
|
500～9800
|
800～12500
|
||
|
Apply motor Power（kW）
|
200～1250
|
400～7800
|
630～10000
|
||
|
Rated input Current（A）
|
50～300
|
50～960
|
50～780
|
||
|
Rated input Voltage（V）
|
3000±10%
|
6000±10%
|
10000±10%
|
||
|
Rated input frequency(Hz）
|
45～55
|
|
|
||
|
Input power factor
|
0.96(＞20% Load)
|
|
|
||
|
Effiency
|
Under Rated load＞0.95
|
|
|
||
|
Range of output frequency（Hz）
|
5～60(Other frequency should be stated before booking)
|
|
|
||
|
Output frequency resolution (Hz)
|
0.01
|
|
|
||
|
Overloading
|
120% anti-time limit of 1 minute, 150% immediate protection
|
|
|
||
|
Analog input
|
2 lines（0～10）V/(4～20)mA
|
|
|
||
|
Analog Output
|
4 lines（0～10）V/(4～20)mA
|
|
|
||
|
Acceleration time（s）
|
0.1～3000
|
|
|
||
|
Input/Ouput Switch Qty
|
Standard Setting: Input 6，output 6 lines; Can be options
|
|
|
||
|
Inner earthing Resistance（Ω）
|
＜0.1
|
|
|
||
|
Ambient（°C）
|
0～40 （°C）
|
|
|
||
|
Storage / transport temperature(°C)
|
-40～70（°C）
|
|
|
||
|
Cooling
|
Air Cooling
|
|
|
||
|
Running Decibel（dB）
|
≤85
|
|
|
||
|
Ambient humidity
|
＜90%，No Congeal
|
|
|
||
|
Install Altitude（m）
|
≤1000M，If more than 1000meter,need to booked.
|
|
|
||
|
IP Class
|
IP4X
|
|
|
||
|
Diameter Size（mm）
|
4800×2450×1300
200～630KW |
6500×2450×1300
400～3250KW |
7800×2450×1300
6300～5000KW |
||
|
|
5600×2450×1300
630～1250KW |
7800×2450×1300
3250～7800KW |
10600×2480×1500
500～1000KW |
||
|
Net Weight（kg）
|
3000～5000
200～630KW |
6000～8000
400～3250KW |
8000～14000
6300～5000KW |
||
|
|
3500～6000
630～1250KW |
10000～16000
3250～7800KW |
15000～23000
5000～10000KW |
||
Production Process
Product packaging
We use the safest packaging materials to protect every product, and the packaging meets the environmental requirements of export.
Certificate
We have CCC, CE, ISO9001 certificate, so you can choose our products without worry.
Product application
