Quick Details
-
Welding Diameter:
-
100-1250mm
-
Dimensions:
-
depends on requirements
-
Use:
-
straight seam welding
-
Voltage:
-
380V 50Hz
-
Weight (KG):
-
200 KG
-
Power (kW):
-
3.0KW
-
welding thickness:
-
0.8-6.0mm
-
Welding Length:
-
100-7500mm
-
Welding Method:
-
TIG MIG MAG SAW PAW
-
Product name:
-
Longitudinal Seam Welding Machine
-
Welding Material:
-
CS/MS/Aluminum
-
Control way:
-
PLC
Quick Details
-
Place of Origin:
-
Shandong, China
-
Forming Time:
-
standard
-
Welding Mode:
-
TIG MIG
-
Welding Diameter:
-
100-1250mm
-
Dimensions:
-
depends on requirements
-
Use:
-
straight seam welding
-
Voltage:
-
380V 50Hz
-
Weight (KG):
-
200 KG
-
Power (kW):
-
3.0KW
-
welding thickness:
-
0.8-6.0mm
-
Welding Length:
-
100-7500mm
-
Welding Method:
-
TIG MIG MAG SAW PAW
-
Product name:
-
Longitudinal Seam Welding Machine
-
Welding Material:
-
CS/MS/Aluminum
-
Control way:
-
PLC
Product Description

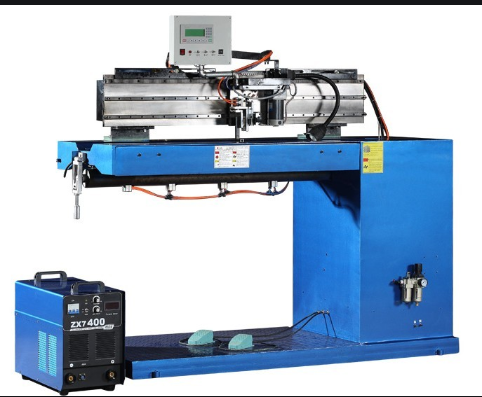

Machine Features
2. The equipment is mainly used in stainless steel sheet, carbon steel sheet galvanizes zinc steel, cylinder longitudinal seam automatic welding work.
3. The longitudinal seam welding for the cylinder is docked with the longitudinal seam of the flat plate. It is suitable for various welding methods such as gas-shielded welding and argon arc welding autolysis (filling).
4. The equipment is consists of a longitudinal seam welding machine body, welding power, and electrical control system.
5. The automatic welding machine uses a horizontal welding structure, that is, the workpiece position is relatively fixed, the torch is driven by the motor reducer to move the form of horizontal movement to achieve flat welding seam straight seam welding.
6. The welding process control is controlled by the programmable controller (PLC), automatic and manual adjustment.
Technical Parameter
| Model No. | PSW-1000 | PSW-1500 | PSW-2000 | PSW-3000 |
| Welding length(mm) | 1000 | 1500 | 2000 | 3000 |
| Min. diameter(mm) | φ100 | φ120 | φ160 | φ160 |
| Max diameter(mm) | φ1000 | φ1000 | φ1000 | φ1000 |
| Welding thickness | 0.8-6mm | |||
| Welding speed | 150-1500 mm/min | |||
| Speed control | Stepless speed control | |||
| Transmission mode | Guide rail+gear and rack | |||
