Quick Details
-
Brand Name:
-
Alps
-
Year:
-
2011
-
Voltage:
-
380V or customized
-
Dimension(L*W*H):
-
2.5*2*3.2m
-
Hollow part volume:
-
1L~10L
-
Screw L/D Ratio:
-
24
-
Screw diameter (mm):
-
60 mm
-
Screw Heating Power(kW):
-
12 kW
-
Extruder Motor Power(kW):
-
22 kW
-
Mold Platen Size(Width)(mm):
-
550 mm
-
Mold Platen Size(Height)(mm):
-
500 mm
-
Air Pressure(MPa):
-
0.6 MPa
-
Air Comsumption(m³/min):
-
1 m³/min
-
Die Head Heating Power(kW):
-
6.6 kW
-
Accumulator Capacity(L):
-
50 L
-
Power (kW):
-
50
-
Weight (T):
-
12
-
High Pressure Valve Brand:
-
SMC
-
Rotary Cylinder Brand:
-
AirTac
-
Keywords:
-
extrusion blow molding machine
-
Control:
-
PLC+Touch Screen
-
Extrusion Motor:
-
Siemens
-
Working station:
-
Single / Double
-
Hydraulic valve:
-
Yuken,Japan
-
Parison controller:
-
Japan MOOG 100 points
-
Hydraulic pump:
-
YUKEN,Japan
-
Certification:
-
CE,ISO...
Quick Details
-
Clamping Force (kN):
-
80
-
Output (kg/h):
-
65 kg/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Alps
-
Year:
-
2011
-
Voltage:
-
380V or customized
-
Dimension(L*W*H):
-
2.5*2*3.2m
-
Hollow part volume:
-
1L~10L
-
Screw L/D Ratio:
-
24
-
Screw diameter (mm):
-
60 mm
-
Screw Heating Power(kW):
-
12 kW
-
Extruder Motor Power(kW):
-
22 kW
-
Mold Platen Size(Width)(mm):
-
550 mm
-
Mold Platen Size(Height)(mm):
-
500 mm
-
Air Pressure(MPa):
-
0.6 MPa
-
Air Comsumption(m³/min):
-
1 m³/min
-
Die Head Heating Power(kW):
-
6.6 kW
-
Accumulator Capacity(L):
-
50 L
-
Power (kW):
-
50
-
Weight (T):
-
12
-
High Pressure Valve Brand:
-
SMC
-
Rotary Cylinder Brand:
-
AirTac
-
Keywords:
-
extrusion blow molding machine
-
Control:
-
PLC+Touch Screen
-
Extrusion Motor:
-
Siemens
-
Working station:
-
Single / Double
-
Hydraulic valve:
-
Yuken,Japan
-
Parison controller:
-
Japan MOOG 100 points
-
Hydraulic pump:
-
YUKEN,Japan
-
Certification:
-
CE,ISO...

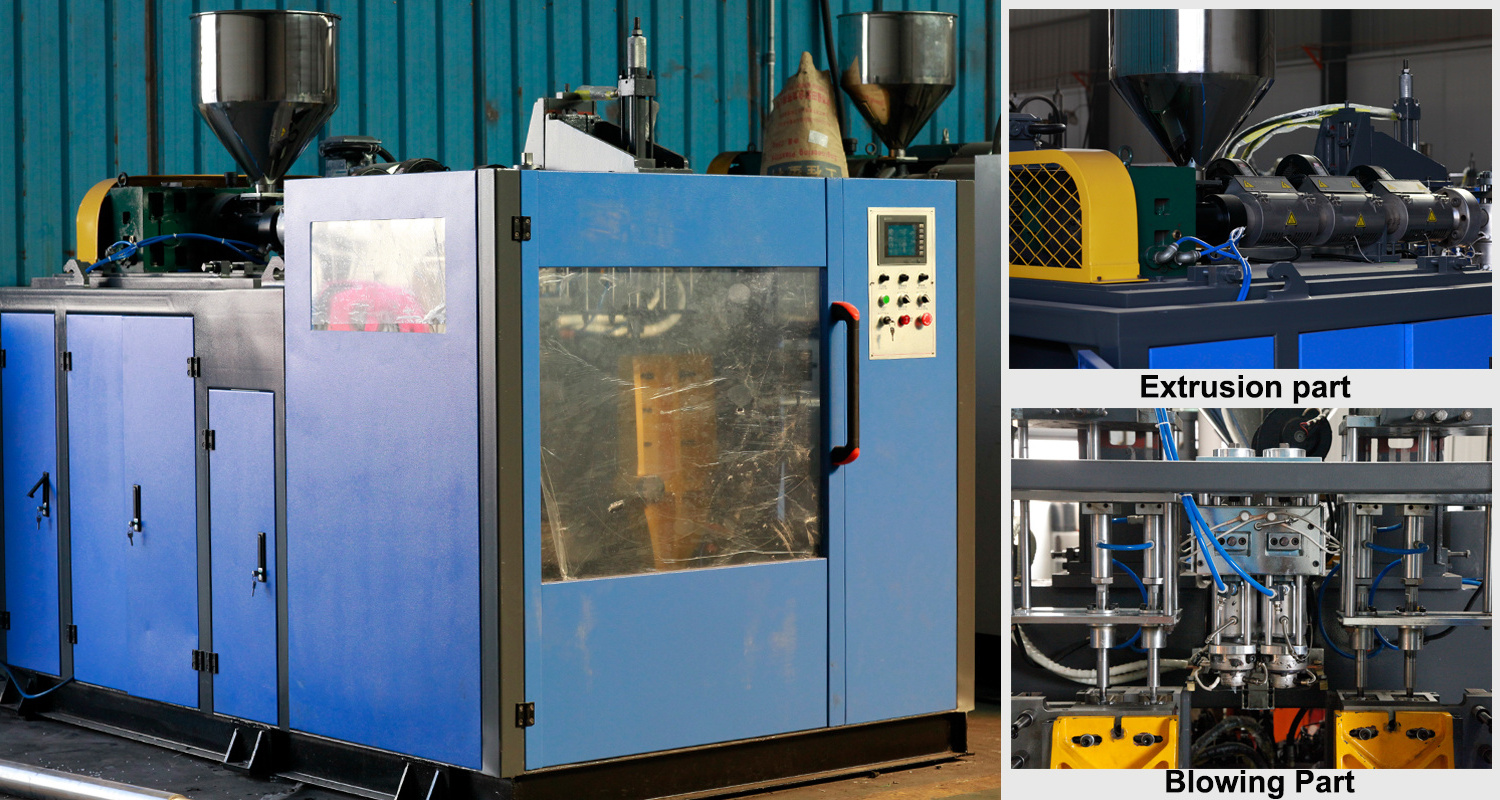

5 Liter Extrusion Blow Moulding Machine Jerrycan Blow Molding Machine Plastic Bottle Making Machine Price
Product Description

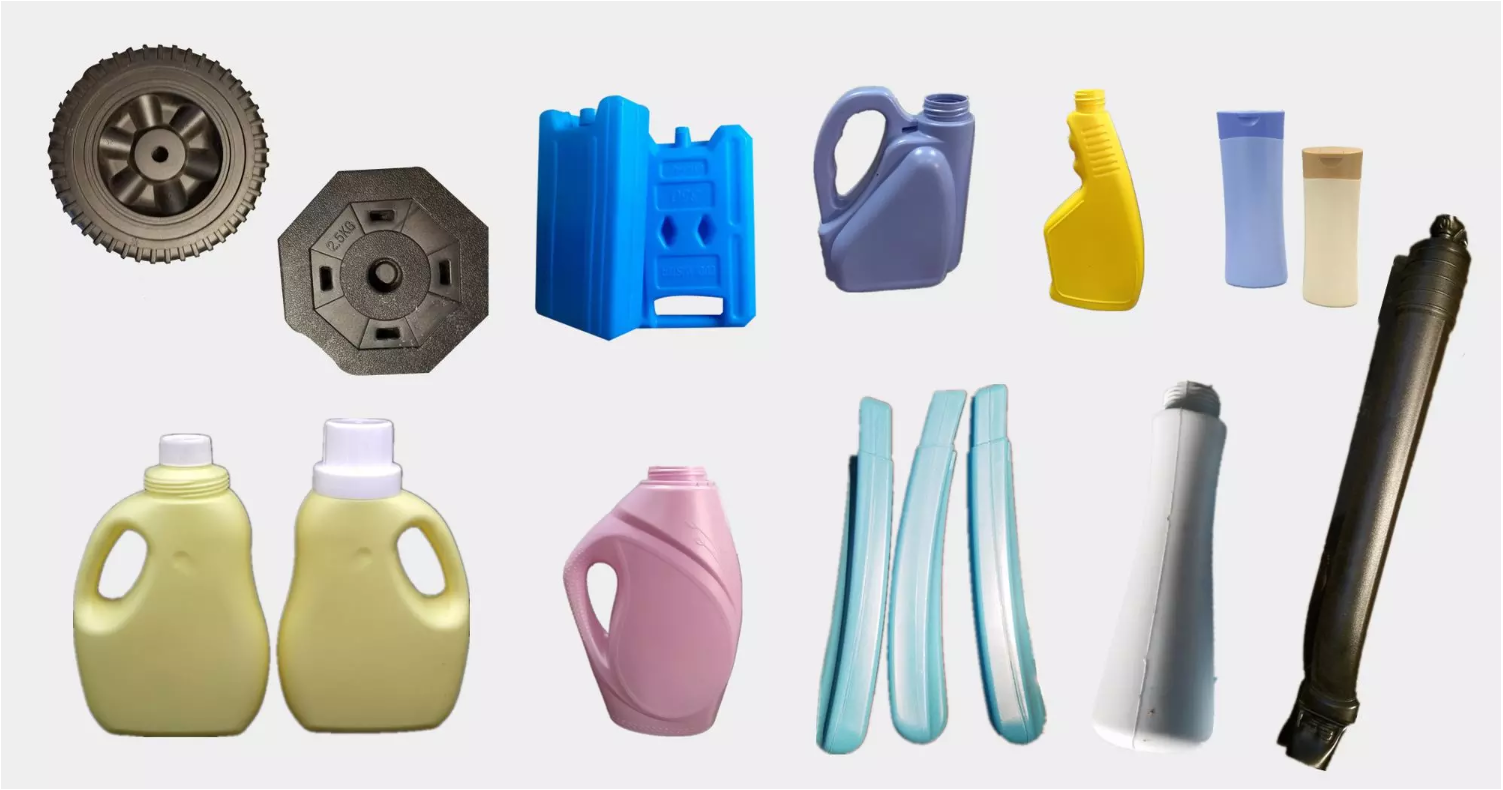

Extrusion blow molding machine for containers from 5ml up to 10L, the high level of reliability, excellent efficiency and flexibility to meet varied customer requirements. The machines process a variety of materials, including HDPE, LDPE, PP, PVC, TPU, PETG and other materials. it has faster production rate in an hour. it can cover the complete production scope starting from the smallest ampoule or tube to beverage packaging, cosmetic containers, large mouth containers and multiple layers with view stripe line containers.
Product Paramenters
|
Specifications
|
Unit
|
Double station
|
|
|
||||
|
Machine model
|
|
EXB60D
|
EXB70D
|
EXB90D
|
||||
|
Material
|
|
PE,PP,PVC,PA etc.
|
|
|
||||
|
Max container capacity
|
L
|
2
|
5
|
12
|
||||
|
Number of die head
|
SET
|
|
|
|
||||
|
Machine dimension ( L×W×H )
|
M
|
3.1×2.1×2.5
|
3.4×2.2×2.5
|
4.5×3.5×2.9
|
||||
|
Machine Weight
|
T
|
6.3
|
8.2
|
11
|
||||
|
Clamping unit
|
|
|
|
|
||||
|
Mold platen size ( W×H )
|
MM
|
300×380
|
338×380
|
550×460
|
||||
|
Max mold size ( W×H )
|
MM
|
300×350
|
338×350
|
550×430
|
||||
|
Platen opening storke
|
MM
|
130-370
|
150-500
|
200-600
|
||||
|
Power
|
|
|
|
|
||||
|
Oil pump driving total power
|
KW
|
5.5
|
11
|
15
|
||||
|
Max driving total power
|
KW
|
20.5
|
33
|
52
|
||||
|
Average energy consumption
|
KW
|
15-18
|
23-25
|
31-34
|
||||
|
Blow pressure
|
Mpa
|
0.6
|
0.6
|
0.6
|
||||
|
Extruder unit
|
|
|
|
|
||||
|
Screw diameter
|
MM
|
55
|
70
|
90
|
||||
|
Screw L/D ratio
|
L/D
|
24:1
|
|
|
||||
|
Melting capacity
|
KG/HR
|
62
|
80
|
140
|
||||
|
Extruder power
|
KW
|
15
|
22
|
37
|
||||
|
Die head
|
|
|
|
|
||||
|
Max die-pin diameter
|
MM
|
95
|
135
|
180
|
||||
|
Center distance of double die head
|
MM
|
130
|
160
|
250
|
||||
|
Center distance of three die head
|
MM
|
110
|
110
|
130
|
||||
|
Center distance of four die head
|
MM
|
75
|
85
|
110
|
||||
Application
