Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Aotuo
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
3000*2000*1600mm
-
Power (kW):
-
20
-
Weight (KG):
-
1000
-
After-sales Service Provided:
-
Free spare parts
-
Product name:
-
1325 auto tool changer 3d wood carving atc cnc router machine
-
Power:
-
9kw or optional
-
Application:
-
Engraving
-
Control system:
-
NcStudio Control System or other options
-
Motor:
-
Stepper Motor
-
Transmission:
-
rack and pinion
-
Type:
-
vertical
-
Software:
-
Artcam/Type3
-
Certification:
-
CE BV ISO
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Aotuo
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
3000*2000*1600mm
-
Power (kW):
-
20
-
Weight (KG):
-
1000
-
After-sales Service Provided:
-
Free spare parts
-
Product name:
-
1325 auto tool changer 3d wood carving atc cnc router machine
-
Power:
-
9kw or optional
-
Application:
-
Engraving
-
Control system:
-
NcStudio Control System or other options
-
Motor:
-
Stepper Motor
-
Transmission:
-
rack and pinion
-
Type:
-
vertical
-
Software:
-
Artcam/Type3
-
Certification:
-
CE BV ISO

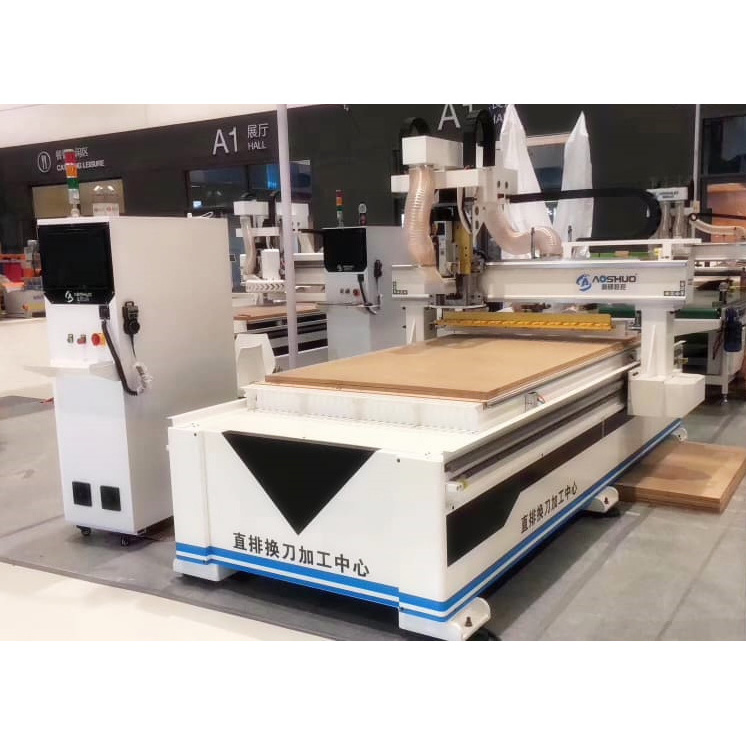

1325 Italy hsd atc spindle automatic tool changer 3d wood carving linear atc cnc router machine
sample picture
| Model | AS-1325 ATC CNC Router | ||
| X axis | 1300mm | ||
| Working Travel | Y axis | 2500mm | |
| Z axis | 200mm | ||
| Table Structure | Vacuum suction | ||
| Orbit | HIWIN or PMI square orbit | ||
| Transmission Type | X,Y Rack, Z Ball screw | ||
| Working accuracy | |||
| Re-positioning accuracy | ±0.05 | ||
| Max air move speed | 60000mm/min | ||
| Max working speed | 25000mm/min | ||
| Type of cooling | Imported Italian HSD air cooling spindle | ||
| Spindle parameters | Power | 9KW | |
| Speed | 0-24000r/min | ||
| Inverter | 11KW Delta Inverter | ||
| Drive system | 750W Japan Yaskawa servo,Japan shimpo reducer | ||
| Command code | G code | ||
| Control system | Syntec-6MA | ||
| Oiling system | Automatic | ||
| Positioning Cylinders | Pneumatic pop up system | ||
| Working voltage | AC380V/3PH/50HZ | ||
| Supported File Formats | DWG, DXE, EPS, AI, PDF, BMP, JPG, TIF, GIF | ||
| Materials | MDF, Plywood, Hardwood, Melamine Laminates, Solid Surface Materials, Foam Core, Corrugated Plastic, Aluminium, Di-Bond, Soft Metals | ||
