Automatic high speed soft  box packing machine dates filling and weighing machine
Automatic high speed soft  box packing machine dates filling and weighing machine
Automatic high speed soft  box packing machine dates filling and weighing machine
Automatic high speed soft  box packing machine dates filling and weighing machine
Automatic high speed soft  box packing machine dates filling and weighing machine
Automatic high speed soft  box packing machine dates filling and weighing machine
Automatic high speed soft  box packing machine dates filling and weighing machine
Automatic high speed soft  box packing machine dates filling and weighing machine

Automatic high speed soft box packing machine dates filling and weighing machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $45000
≥5 Sets
US $25000
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Production Capacity:
30-150bag/min
Weight (KG):
150
Voltage:
110v, 220v, 240v, 380v
Place of Origin:
China
Brand Name:
HONETOP
Dimension(L*W*H):
3500*1350*1900mm
After-sales Service Provided:
Engineers available to service machinery overseas
Main Function:
automatic carton box packing
Machine Material:
#304 stainless steel
Dimension Range:
(55-200)mmX(14-90)mmX(13-65)mm
Encasing Speed:
30-150box/min
Frequence:
50HZ(60HZ)
Machine Warranty:
One Year
Machine weight:
1500kg
Enviroment Temperature:
25±10℃

Quick Details

Function:
FILLING, Wrapping, Labeling, Sealing, BOXING, Embossing, Gluing
Packaging Type:
Cartons, CANS, case
Packaging Material:
Plastic, Paper
Production Capacity:
30-150bag/min
Weight (KG):
150
Voltage:
110v, 220v, 240v, 380v
Place of Origin:
China
Brand Name:
HONETOP
Dimension(L*W*H):
3500*1350*1900mm
After-sales Service Provided:
Engineers available to service machinery overseas
Main Function:
automatic carton box packing
Machine Material:
#304 stainless steel
Dimension Range:
(55-200)mmX(14-90)mmX(13-65)mm
Encasing Speed:
30-150box/min
Frequence:
50HZ(60HZ)
Machine Warranty:
One Year
Machine weight:
1500kg
Enviroment Temperature:
25±10℃
Product Description

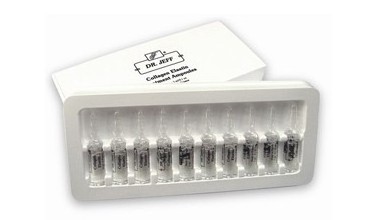

Material in box packing

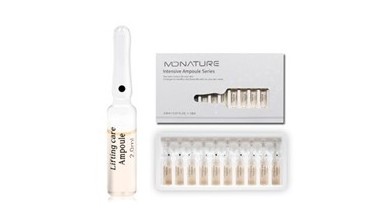

The final output product

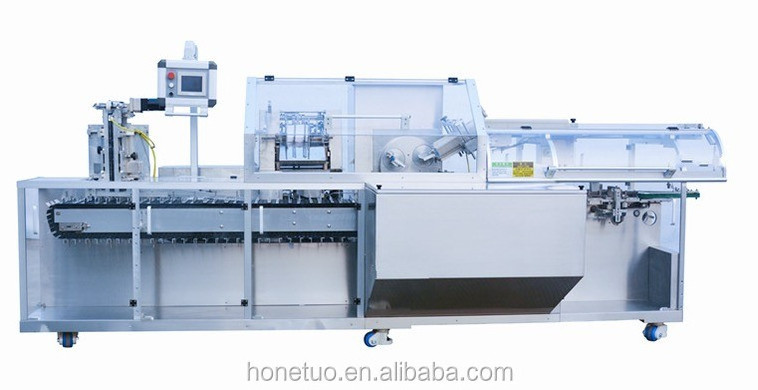

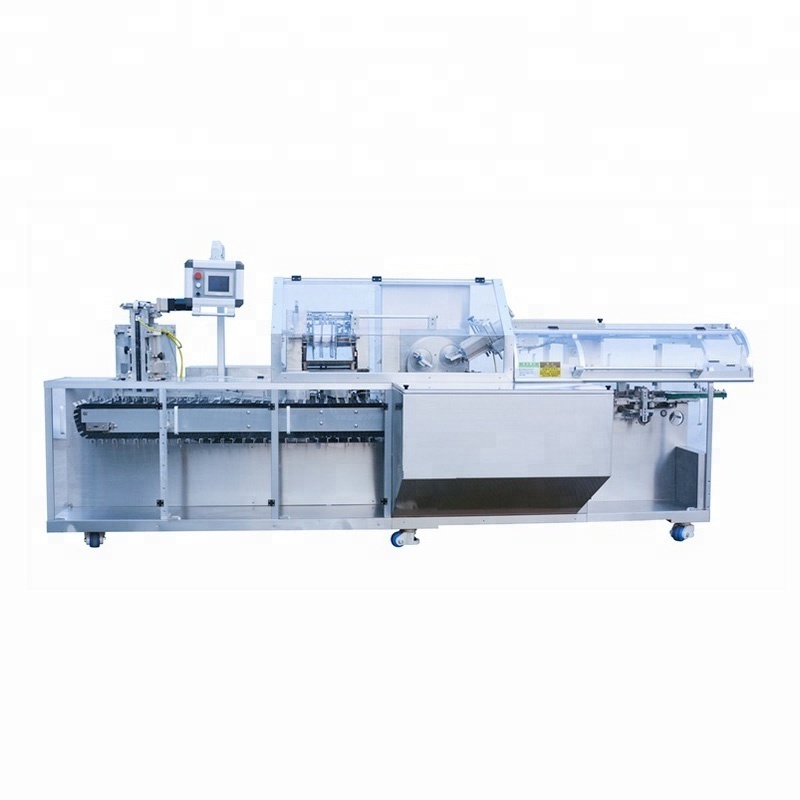

Machine Picture Show



Product Application

SPECIFICATIONS FOR CARTON PACKAGING MACHINE HTH-100T
Encasing Speed
30-150box/min
Box Quality Requirement
250-350g/m2 (according to customer request)
Box Dimension Range
(55-200)X(14-90)X(13-65)mm (can customize according to request)
Compressed Air Working Pressure
>=0.6mpa

Leaflet
Unfolded leaflet specificationL×W (80-250)mm×(90-170)mm
Fold range (1-4) fold

Power Supply
380V 50Hz(Can be ajusted)
Motor Power
1.5KW
Noise
≤80dB
Environment temperature
25±10℃
Air Consumption
20m3/h

Machine Dimension
3800X1100X1900mm
Machine Weight
1500KG
Certifications

Main Features


COMPONENTE LIST

Name
Model and Specification
Place of Origin or Brand
Quantity
PLC
LP1E-30DR-D
Japan Omron
1
Coder
E6B2-CWZ6C
Japan Omron
1
Touch screen
MP5-SQ000 B1
Japan Omron
1
Frequency Converter
3G3CV-A4015
Japan Omron
1
Servo motor
0.4KW
Taiwan
1
vacuum generator
ZH20DS-01-04-04
Japan SMC
2
Electric elements
Japan Omron
Japan Omron
many
Optical fiber
GTE6-N1212
Germany SICK
1
Main Motor
CH-1500-10S 1.5KW
Taiwan
1
Sensor
E3Z-D61
Japan Omron
1
Detailed Images

Other Types Machine

plastic wrap cartoner             cookies cartoner                       facial mask cartoner             tablets cartoner
