Quick Details
-
Brand Name:
-
Haoke
-
Model Number:
-
AP-1380L
-
Voltage:
-
50w
-
Cutter Pressure:
-
500g
-
Cutting Speed:
-
Min.10mm/S ~ Max. 800mm/S
-
Driver:
-
stepper motor
-
Repeat Cutting:
-
0.0127mm
-
Size:
-
1820mm(L) *900mm(W)* 1126mm(H)
-
Driving motor:
-
Stepping motor
-
Knife:
-
Roland type standard blade
-
Power supply:
-
AC220V/110V ±5%, 50Hz-60Hz
-
Laser tube power:
-
50W
-
Warranty:
-
Laser tube for 3 months, 1 year for the whole machine
-
Software:
-
artcut/signmaster/cdr/ai
-
Cutting thickness:
-
1MM
-
Max. cutting speed:
-
10-800mm/s
-
Cutting Letter:
-
2MM
-
Interface:
-
Serial Port/USB
Quick Details
-
Paper Feed Width:
-
1380mm
-
Cutting Width:
-
1190mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Haoke
-
Model Number:
-
AP-1380L
-
Voltage:
-
50w
-
Cutter Pressure:
-
500g
-
Cutting Speed:
-
Min.10mm/S ~ Max. 800mm/S
-
Driver:
-
stepper motor
-
Repeat Cutting:
-
0.0127mm
-
Size:
-
1820mm(L) *900mm(W)* 1126mm(H)
-
Driving motor:
-
Stepping motor
-
Knife:
-
Roland type standard blade
-
Power supply:
-
AC220V/110V ±5%, 50Hz-60Hz
-
Laser tube power:
-
50W
-
Warranty:
-
Laser tube for 3 months, 1 year for the whole machine
-
Software:
-
artcut/signmaster/cdr/ai
-
Cutting thickness:
-
1MM
-
Max. cutting speed:
-
10-800mm/s
-
Cutting Letter:
-
2MM
-
Interface:
-
Serial Port/USB
Product Description

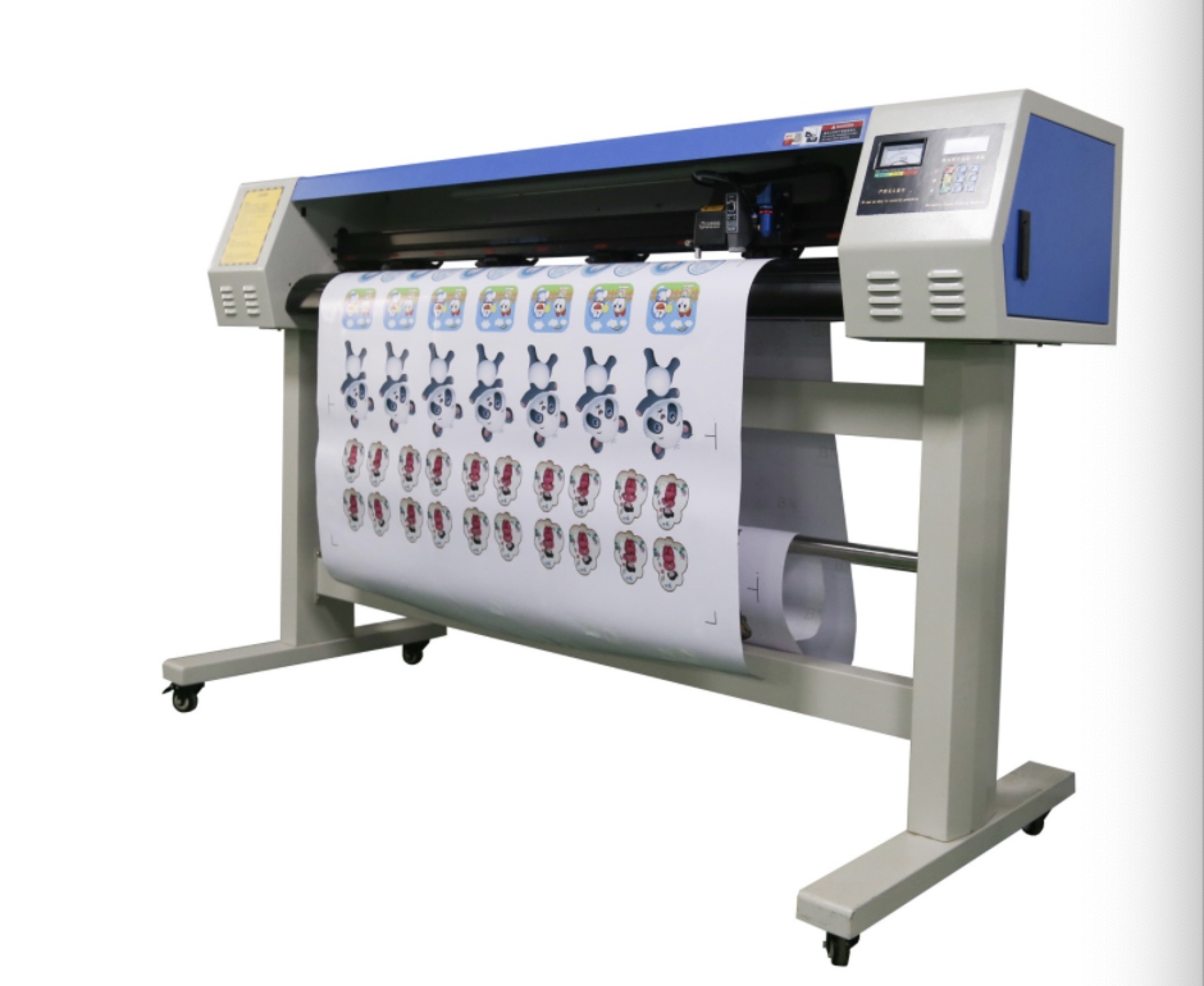

1. laser engraving, cutting and drawing machine supports laser cutting, cutter cutting and brush drawing,The fuselage adopts
sheet metal to run more stably.Add laser automatic edge inspection and cutter automatic edge inspection, the two functions can be
switched at will
2.USB interface / serial port / U disk offline / no conversion / setting storage function;
3.low noise, cutting more precisely Unique blade soft landing
function.，Two configurations of laser power 50W / 80W
4.Compatible with many comp
uter operation systems such as
Windows XP,Vista,Windows7
(32bit&64bit), Windows8;
5.Support artcut / CDR / CAD / signmaster software
6.Laser cutting is less than 1 mm for non-metallic soft materials and 0.5 mm for double-layer soft materials.
Advertisement, light box billboard, cutting woven bag, cutting reflective film, CAD, cutting sketch, mobile phone sticker, car
sticker, making reel, cutting dust cloth, glass sandblasting, cutting kraft paper non-metallic soft material within 1 mm
´USB Direct output, using all-aluminum trolley, bracket universal wheel design, with brake work more stable, more convenient to move.
sticker, making reel, cutting dust cloth, glass sandblasting, cutting kraft paper non-metallic soft material within 1 mm
´USB Direct output, using all-aluminum trolley, bracket universal wheel design, with brake work more stable, more convenient to move.
7. Add laser automatic edge inspection and cutter automatic edge inspection, the two functions can be switched
8. machine color: blue / green.
if you just buy few qty , we can supply blue color.

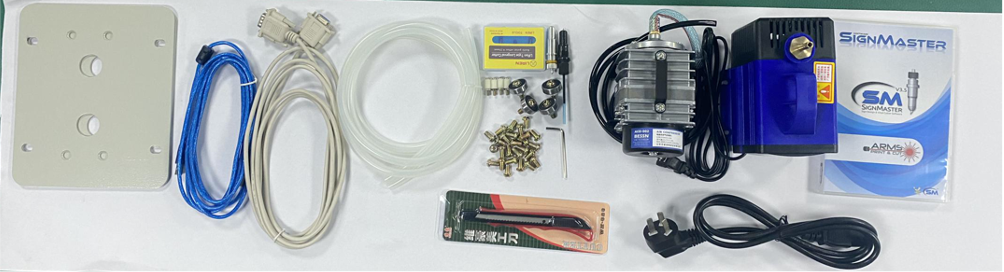

spare parts
A.Cutting knife*3pcs /box
B.Pen holder*1pc
C.USB line *1pc
D.Power line*1pc
E.Stand(include screw)*1pc
F.software kit*1pc
G.Matching paper cutter*1pc
H.Screw accessories package*1pc
I.Water pump*1pc +Silicone water pipe*2pcs
J.Air pump*1pc +trachea*1pc
K.Tin foil smoke exhaust pipe*2pcs
B.Pen holder*1pc
C.USB line *1pc
D.Power line*1pc
E.Stand(include screw)*1pc
F.software kit*1pc
G.Matching paper cutter*1pc
H.Screw accessories package*1pc
I.Water pump*1pc +Silicone water pipe*2pcs
J.Air pump*1pc +trachea*1pc
K.Tin foil smoke exhaust pipe*2pcs
Our Service
A.One year warranty on whole machine and 3 months for laser tube.
B.Professional service before and after sale.
C.Supply training video and user's manual in English.
D.Long-term support for the software and machine maintenance.
E.Free lifetime technology support on all orders.
B.Professional service before and after sale.
C.Supply training video and user's manual in English.
D.Long-term support for the software and machine maintenance.
E.Free lifetime technology support on all orders.

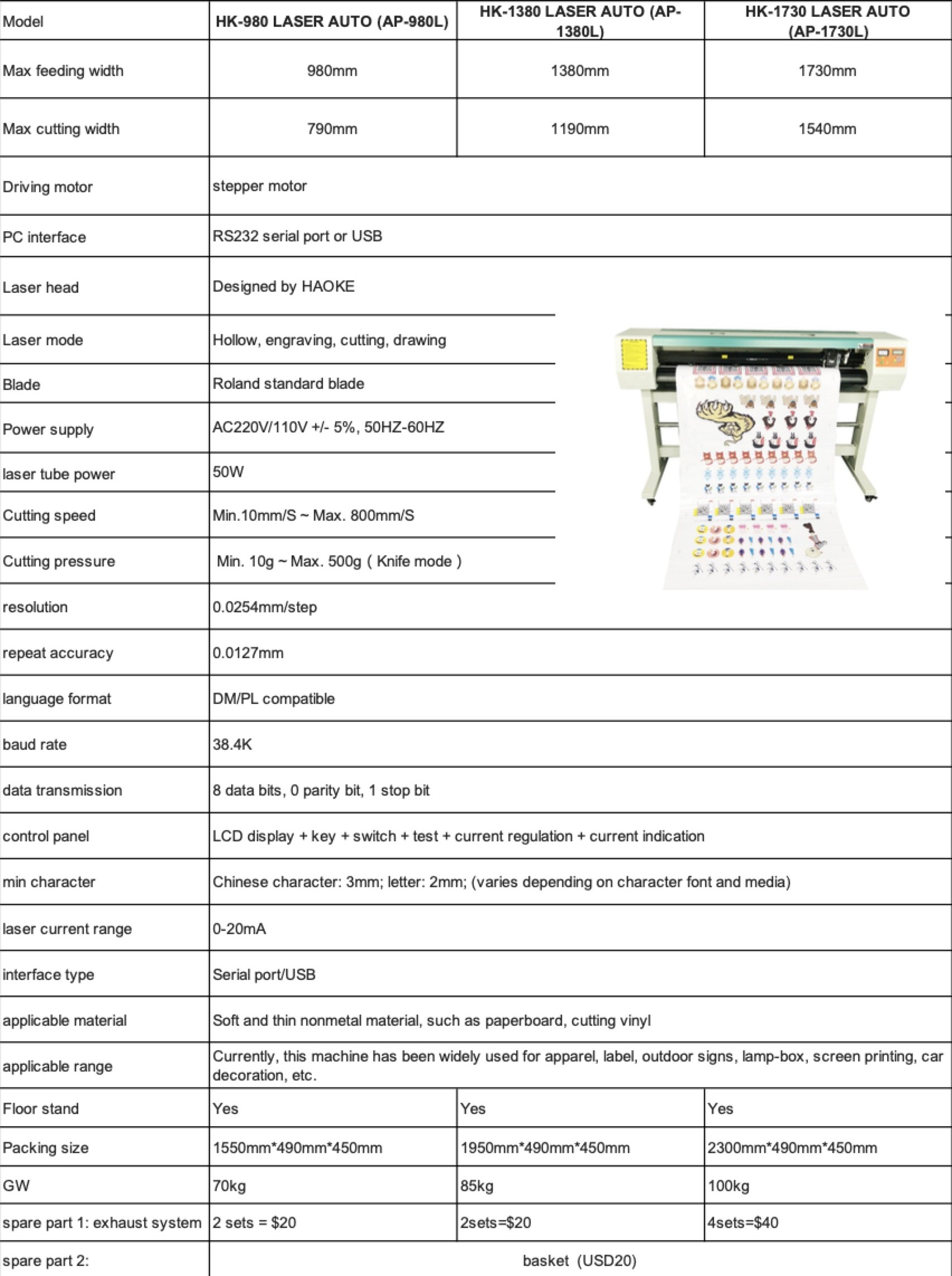

Product Paramenters

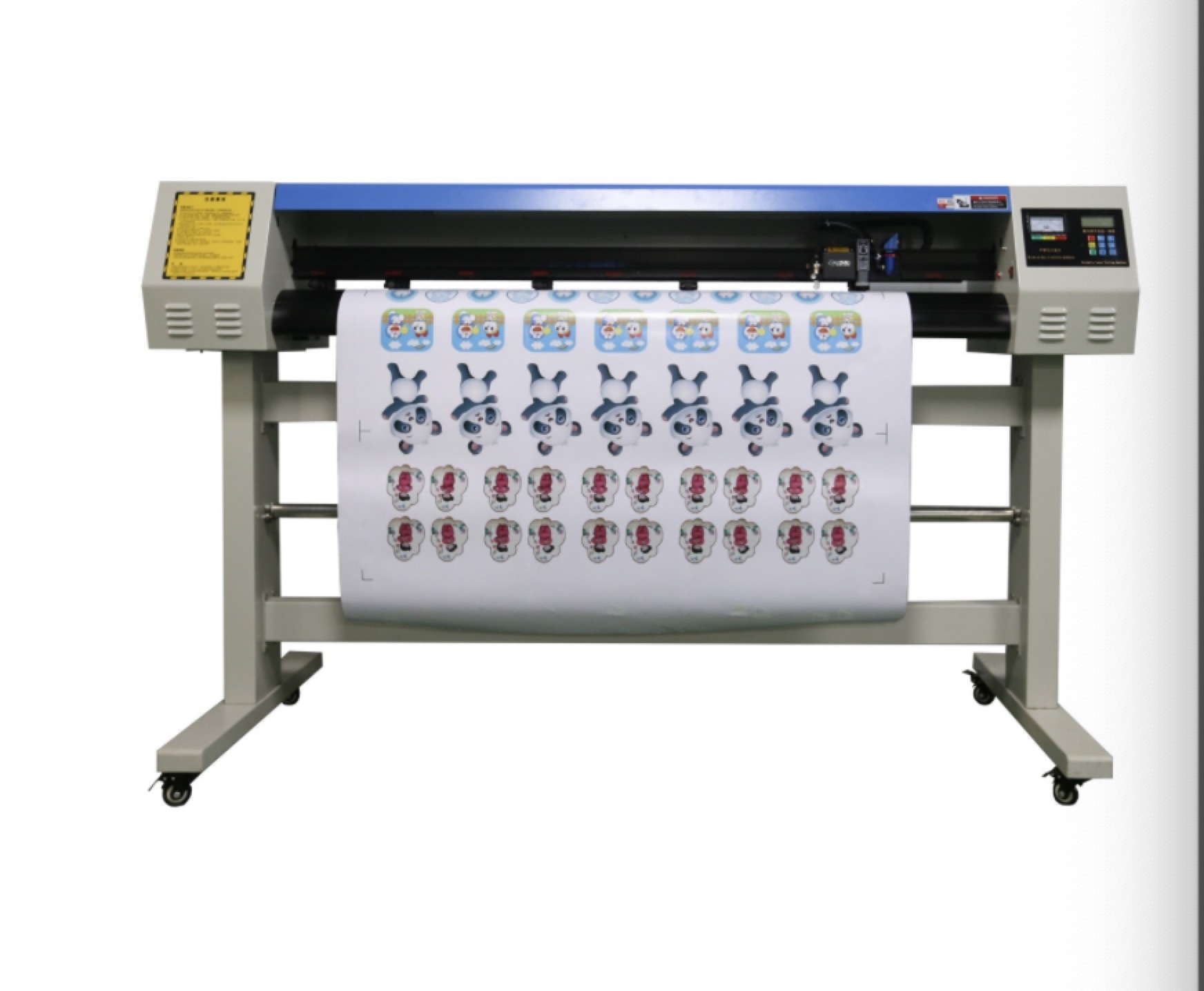

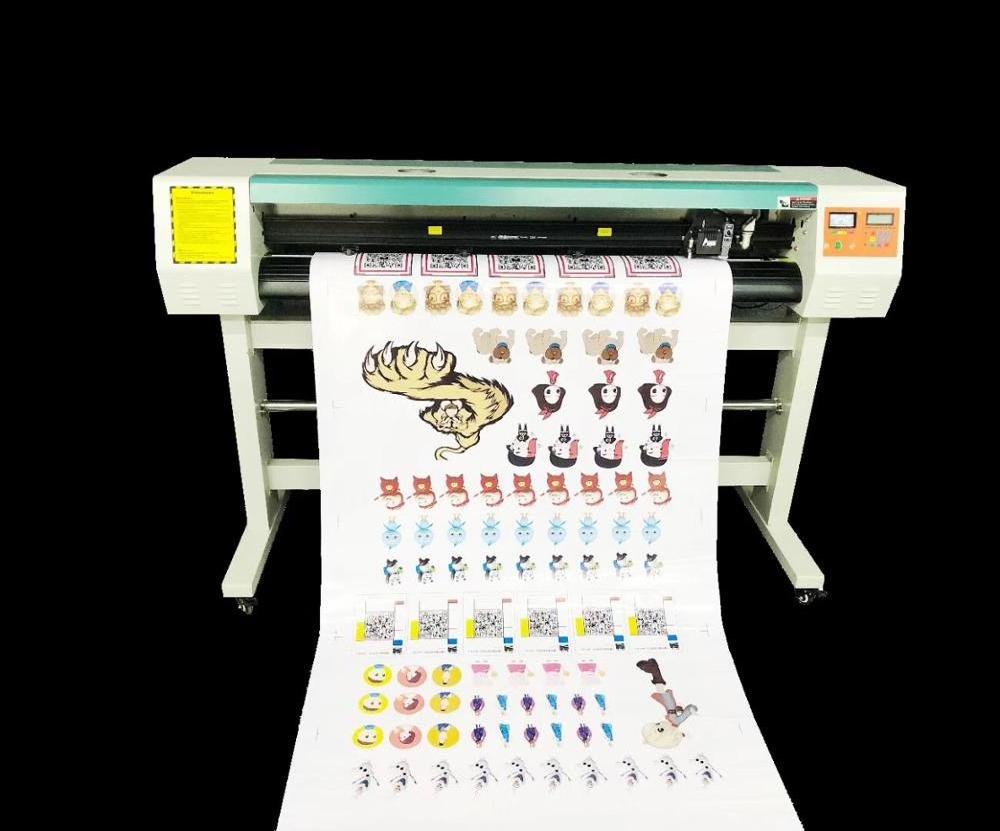

Products Show
