- Product Details
- {{item.text}}
Quick Details
-
Color:
-
Black
-
Rated current:
-
Max 630A
-
Hz:
-
50/60
-
Ui:
-
1000V
-
Degre Of Protechion:
-
IP30
-
Fixed way:
-
Screw,Hook,other custom accessories
-
The default connection:
-
Pressure connecting
-
the other connection mode:
-
Screw & Cable lug
Quick Details
-
Max. Voltage:
-
690V
-
Name:
-

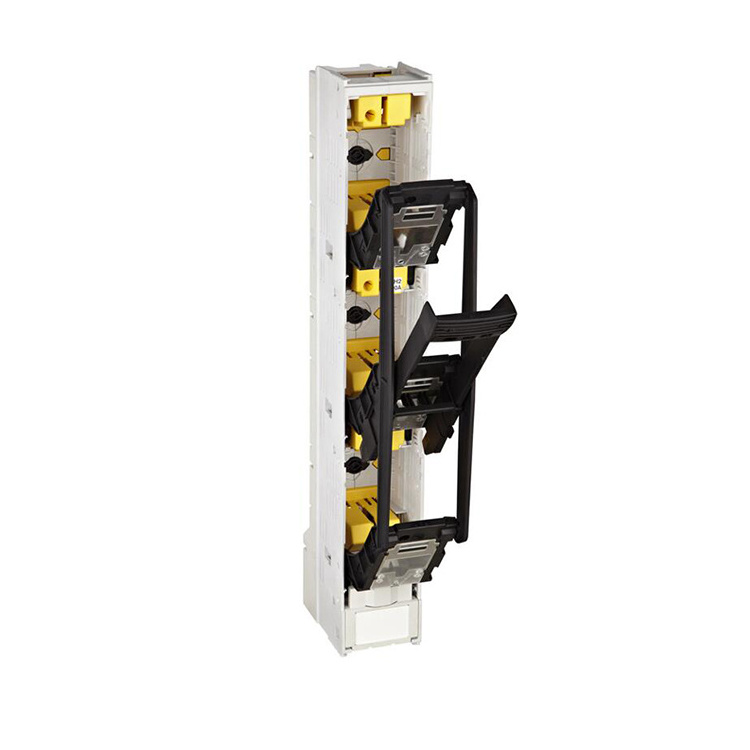

bar fuse switch disconnector
-
Certificate:
-
CE Rohs
-
Color:
-
Black
-
Rated current:
-
Max 630A
-
Hz:
-
50/60
-
Ui:
-
1000V
-
Degre Of Protechion:
-
IP30
-
Fixed way:
-
Screw,Hook,other custom accessories
-
The default connection:
-
Pressure connecting
-
the other connection mode:
-
Screw & Cable lug
Product Description
| Type of switch disconnector | LMHR250S | |||||
| Ue | 415,500,690 | |||||
| Ith | 250A | |||||
| Hz | 50/60 | |||||
| Ui | 1000V | |||||
| Uimp | 10kv | |||||
| Use classes | 380V | 415V | 500V | 690V | ||
| AC21B A22B AC23B | ||||||
| Degre Of Protechion | IP30 | |||||
| Fuse size | 1 | |||||
| Ue | 380V | 415V | 500V | 690V | ||
| Ie | 250 | 250 | 250 | 250 | ||
| Wire specifications | 120mm² | |||||
| The default connection | V-clamp | |||||
| the other connection mode | Screw & Cable lug | |||||
| Installation of busbar | Punched rectangle busbar | Unpunched rectangle busbar | Other | |||
| Fixed way | Screw | Hook | other custom accessories | |||
| Type of switch disconnector | LMHR400S | |||||
| Ue | 415,500,690 | |||||
| Ith | 400A | |||||
| Hz | 50/60 | |||||
| Ui | 1000V | |||||
| Uimp | 10kv | |||||
| Use classes | 380V | 415V | 500V | 690V | ||
| AC21B A22B AC23B | ||||||
| Degre Of Protechion | IP30 | |||||
| Fuse size | 2 | |||||
| Ue | 380V | 415V | 500V | 690V | ||
| Ie | 400 | 400 | 400 | 350 | ||
| Wire specifications | 240mm² | |||||
| The default connection | V-clamp | |||||
| the other connection mode | Screw & Cable lug | |||||
| Installation of busbar | Punched rectangle busbar | Unpunched rectangle busbar | Other | |||
| Fixed way | Screw | Hook | other custom accessories | |||
| Type of switch disconnector | LMHR630S | |||||
| Ue | 415,500,690 | |||||
| Ith | 630A | |||||
| Hz | 50/60 | |||||
| Ui | 1000V | |||||
| Uimp | 10kv | |||||
| Use classes | 380V | 415V | 500V | 690V | ||
| AC21B A22B AC23B | ||||||
| Degre Of Protechion | IP30 | |||||
| Fuse size | 3 | |||||
| Ue | 380V | 415V | 500V | 690V | ||
| Ie | 630 | 630 | 630 | 500 | ||
| Wire specifications | 300mm² | |||||
| The default connection | V-clamp | |||||
| the other connection mode | Screw & Cable lug | |||||
| Installation of busbar | Punched rectangle busbar | Unpunched rectangle busbar | Other | |||
| Fixed way | Screw | Hook | other custom accessories | |||
