Quick Details
-
Measuring Capacitance Range:
-
N/A
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
V&A
-
Model Number:
-
VA90B
-
Measuring Inductance Range:
-
N/A
-
Operating Temperature:
-
-200℃ ~1000℃
-
Dimensions:
-
190x90x40mm
-
Product Name:
-

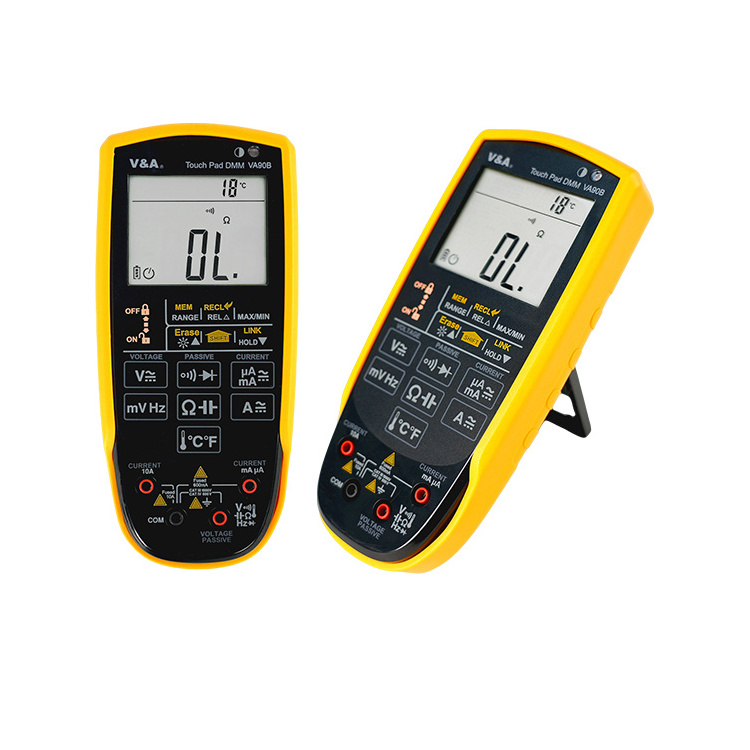

Touch Pad DMM VA90B
-
Continuity Buzzer:
-
Yes
-
Diode Test:
-
Yes
-
TTL Frequency/ Duty:
-
Yes
-
Auto Range:
-
Yes
-
True RMS:
-
Yes
-
Display Counts:
-
6000
-
Safety Rating:
-
CAT IV 600V
-
Power:
-
Li Battery
-
Weight:
-
~500g (including battery)
Quick Details
-
Measuring Current Range:
-
10.00A
-
Measuring Voltage Range:
-
0~1000V
-
Measuring Resistance Range:
-
0~60MΩ
-
Measuring Capacitance Range:
-
N/A
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
V&A
-
Model Number:
-
VA90B
-
Measuring Inductance Range:
-
N/A
-
Operating Temperature:
-
-200℃ ~1000℃
-
Dimensions:
-
190x90x40mm
-
Product Name:
-
Touch Pad DMM VA90B
-
Continuity Buzzer:
-
Yes
-
Diode Test:
-
Yes
-
TTL Frequency/ Duty:
-
Yes
-
Auto Range:
-
Yes
-
True RMS:
-
Yes
-
Display Counts:
-
6000
-
Safety Rating:
-
CAT IV 600V
-
Power:
-
Li Battery
-
Weight:
-
~500g (including battery)
| Specifications | |
| Base Accuracy | 0.20% |
| AC/DC Voltage | 0~1000V |
| Linear Frequency | √ |
| AC/DC Current | μA/mA/10A |
| Temperature K Type | -200℃ ~1000℃ |
| Resistance | 0~60MΩ |
| Capacitance | 0~60mF |
| Continuity Buzzer | √ |
| Diode Test | √ |
| TTL Frequency/Duty | √ |
| Auto Range | √ |
| RMS | √ |
| Display Counts | 6000 |
| Features | |
| LCD | 2 line LCD |
| Back Light | AUTO |
| MAX/MIN Value | √ |
|
Data Hold
|
√ |
| REL | |
| Auto Power | √ |
| Low Battery Indication | √ |
|
Hazard Voltage Indication
|
√ |
| Water Proof | IP 67 |
| Auto Lock/Protect | √ |
| Invade Voltage Alarm | √ |
|
USB Chargeable
|
√ |
| Wireless Chargeable | N/A |
| Communication | N/A |
| IOS/Android Supported | √ |
| Power |
Li-Battery
|
| Size | 190x90x40mm |
| Weight | |
