Quick Details
-
Output signal:
-
4~20mA
-
Unit:
-
Conductivity,TDS,Salinity,Resistivity
-
Working voltage:
-
AC 220V ±l0%, 50Hz
-
Communication interface:
-
RS485 Modbus RTU
-
Product:
-
Waste Water Electrical EC Conductivity Meter
-
Sensor material:
-
SS316L,titanium alloy,platinum,polysulfone
-
Contact:
-
michael(@)shboqu.com
-
Data logger:
-
yes and for 500 000times
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Measuring range:
-
0~2000ms/cm
-
Resolution:
-
0.01 uS /cm
-
Output signal:
-
4~20mA
-
Unit:
-
Conductivity,TDS,Salinity,Resistivity
-
Working voltage:
-
AC 220V ±l0%, 50Hz
-
Communication interface:
-
RS485 Modbus RTU
-
Product:
-
Waste Water Electrical EC Conductivity Meter
-
Sensor material:
-
SS316L,titanium alloy,platinum,polysulfone
-
Contact:
-
michael(@)shboqu.com
-
Data logger:
-
yes and for 500 000times

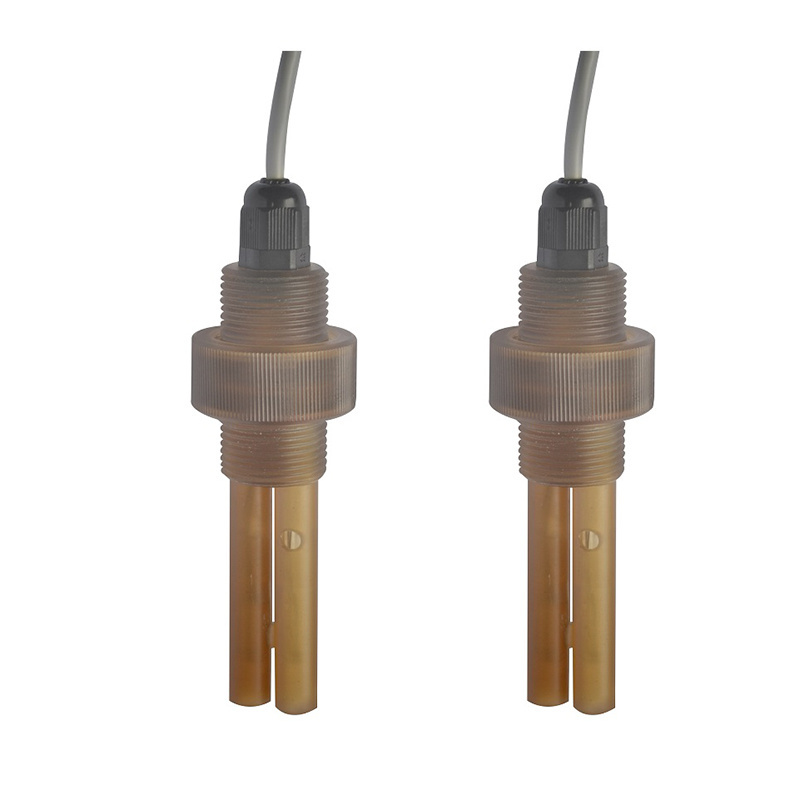

online salinity salt water meter sensor
Product Description
| Model:DDG-2080X | Model: DDG-2090 |
|
Conductivity:0.00~20000us/cm
Accuracy 1% Temp. range:0~99C one ways of 4-20mA RS485 Modbus RTU 2 Relays Protection IP54 Power 220VAC No Data recording function |
| Pressure | Range | Connection | Material | Application | |
| K=0.01 | 0.6Mpa | 0~20us/cm | Power plant | ||
| k=0.1 | 0.6Mpa | 0~200us/cm | Power plant | ||
| k=1.0 | 0.6Mpa | 0~2000us/cm | 1/2,3/4 thread | Water treatment | |
| k=10.0 | 0.2Mpa | 0~20000us/cm | 1/2,3/4 thread | Water treatment | |
| k=30.0 | 0.2Mpa | 30~600ms/cm | 3/4 thread | Polysulfone | Acid cleaning |
| Measuring range | |
| Accuracy | +/- 0.5% |
| Sensor material | PP,PFA(Optional) |
| Max pressure | 1.6Mpa |
| Connection | 1 1/2 or 3/4NPT |
| Installation | Flow cell,pipe line ,submerged |
|
Conductivity:0.00 μS/cm…2000us/cm(customized for other range) mS/cm
Conductivity,TDS,Salinity,Resistivity ,4 in 1 Electronic unit error Conductivity:±0.5 % FS Calibration :1 point Data storage :Calibration data,99 measurement data Monitor:LCD monitor Shell:ABS |
|
| Power requirements 4xAA/LR6 | Power:220VAX |
